Home >> Honda >> 1992 >> Prelude L4-2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Timing Components

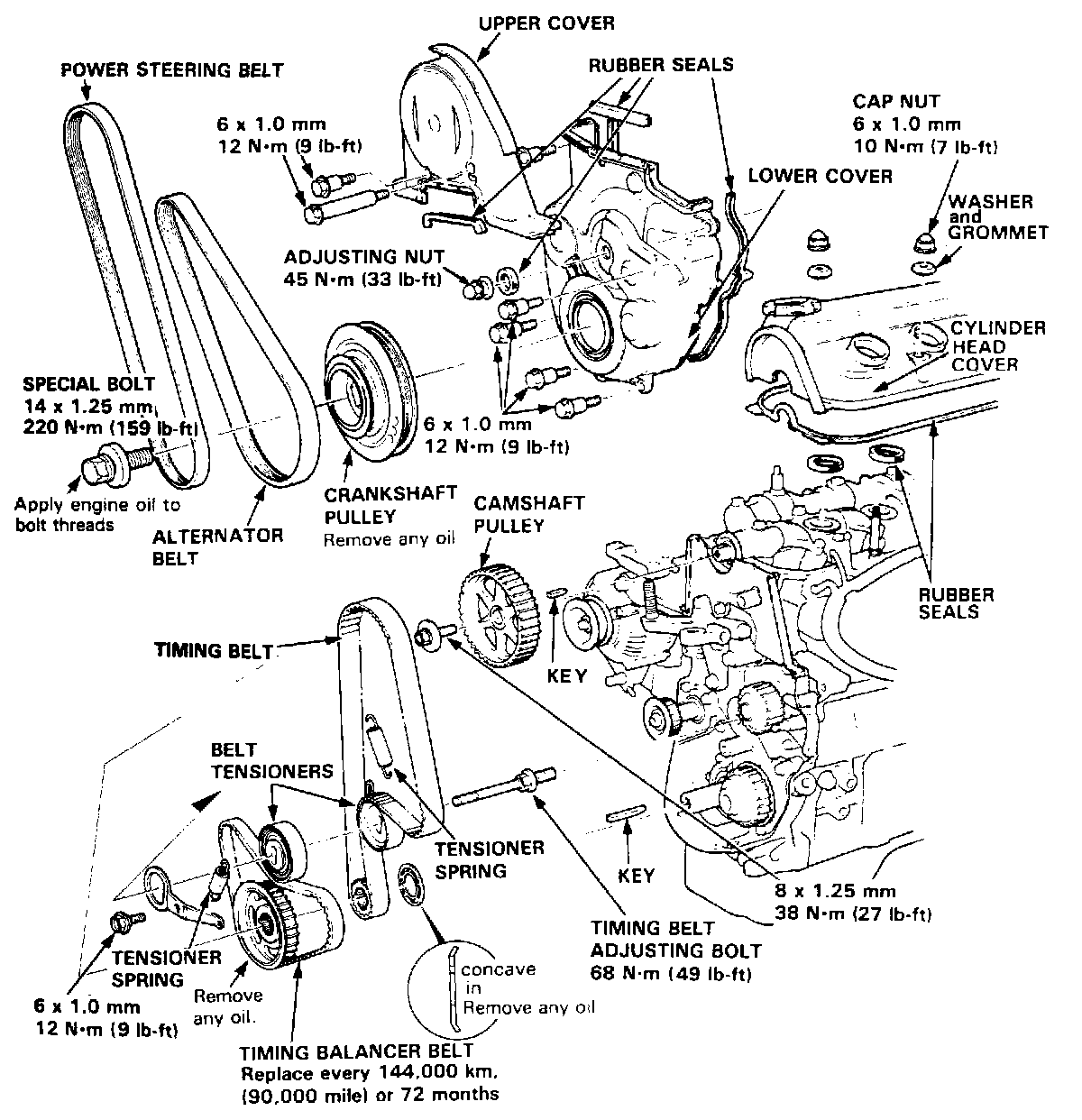

Timing Components
