Home >> Honda >> 1992 >> Prelude L4-2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

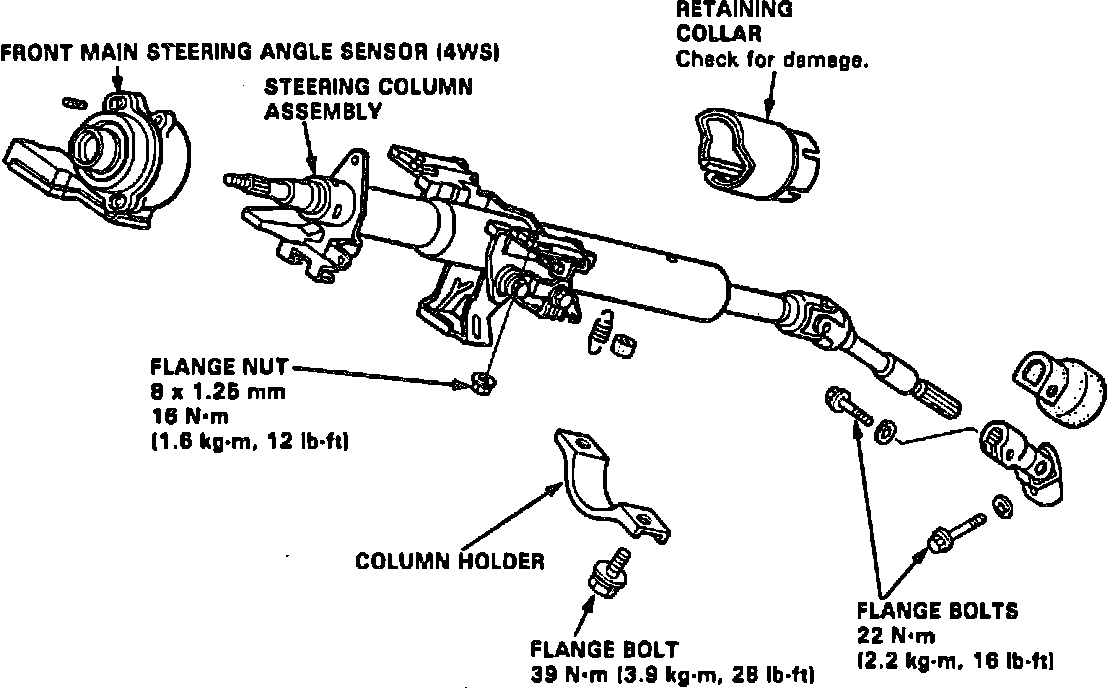

Fig. 5 Steering Column Exploded View:
