Home >> Honda >> 1992 >> Prelude L4-2.2L SOHC >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Locations

Cruise Control Module: Locations

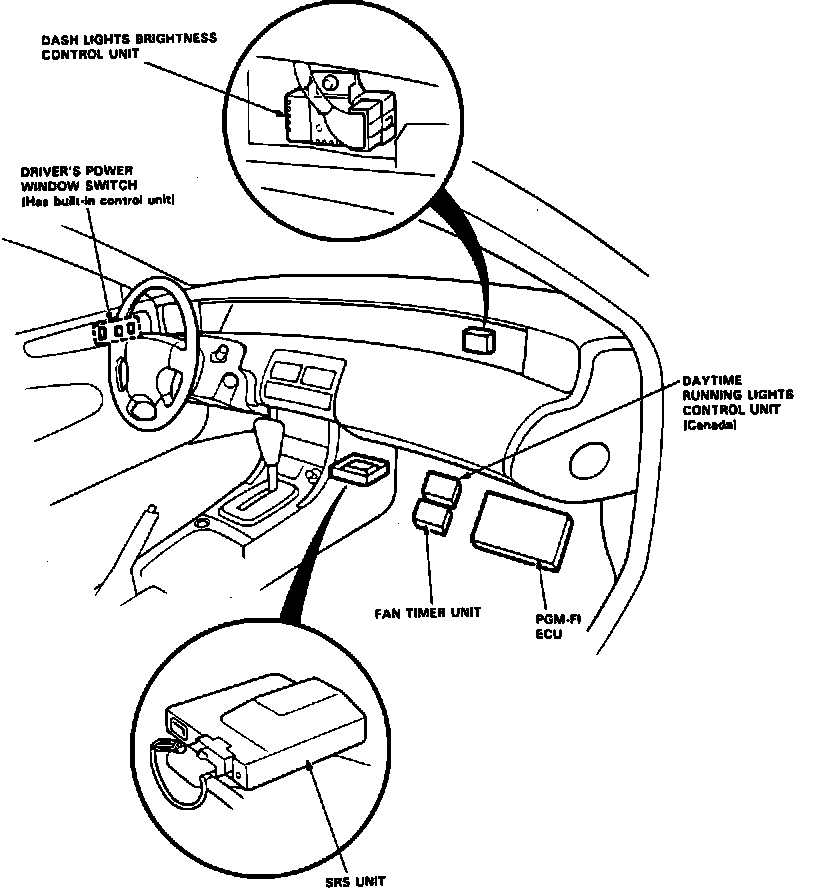

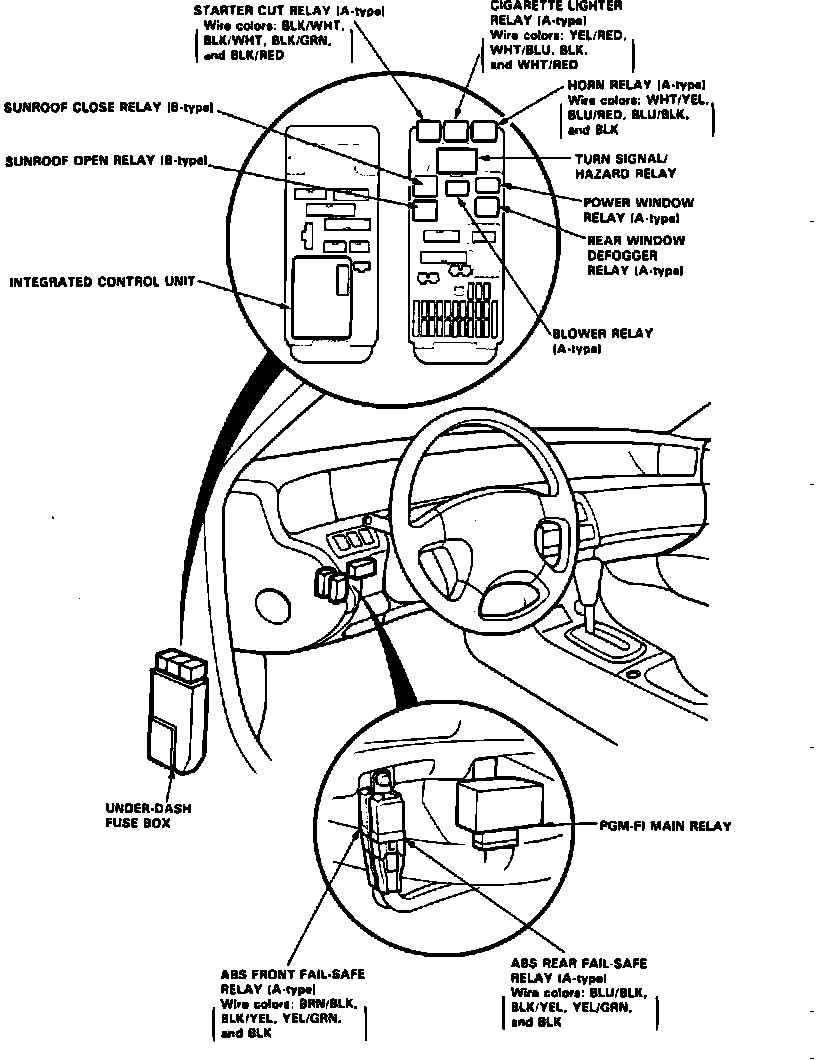

I/P Components (Part 1 Of 4).:




I/P Components (Part 1 Of 4).:




I/P Components (Part 1 Of 4).:




I/P Components (Part 1 Of 4).:




Under LH Side Of I/P

Applicable to: 1992
