EGR Valve Position Sensor: Locations

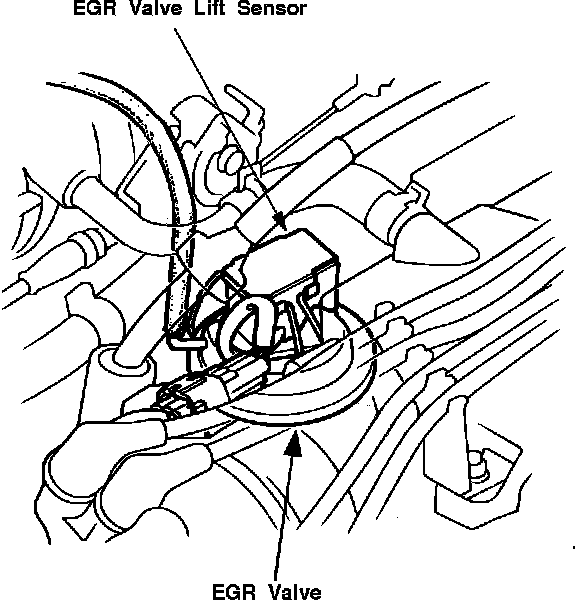

EGR Valve Lift Sensor:





The EGR Valve Lift Sensor is located on top of the EGR valve itself. See ENGINE COMPARTMENT COMPONENTS.
