Compressor Clutch Relay: Testing and Inspection

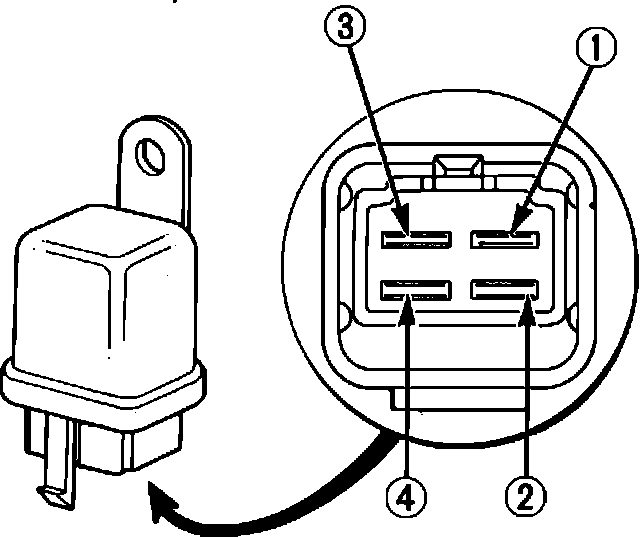

Fig. 32 Typical clutch & fan relay:

1. Check for continuity between terminals 3 and 4, Fig. 32. There should no continuity.
2. Connect a 12 volt battery across terminals 1 and 2. There should be continuity between 3 and 4.
