Honda
>>
1987
>>
Prelude L4-1955cc 2000
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Distributor, Ignition
>>
Toyodenso
Toyodenso

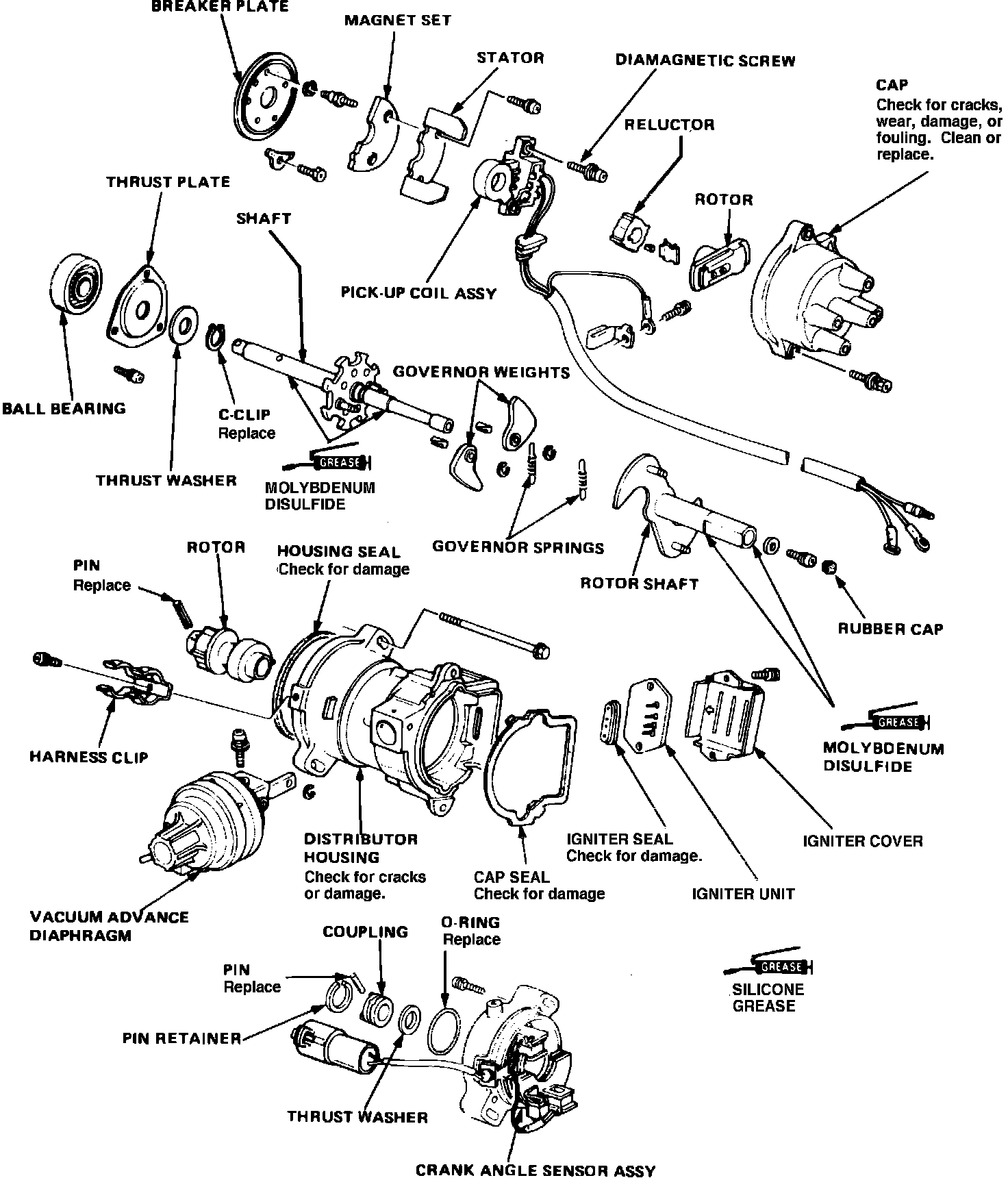

Fig. 13 Typical Toyo Denso Electronic Distributor Exploded View.:
