Engine Compartment Reference Diagram

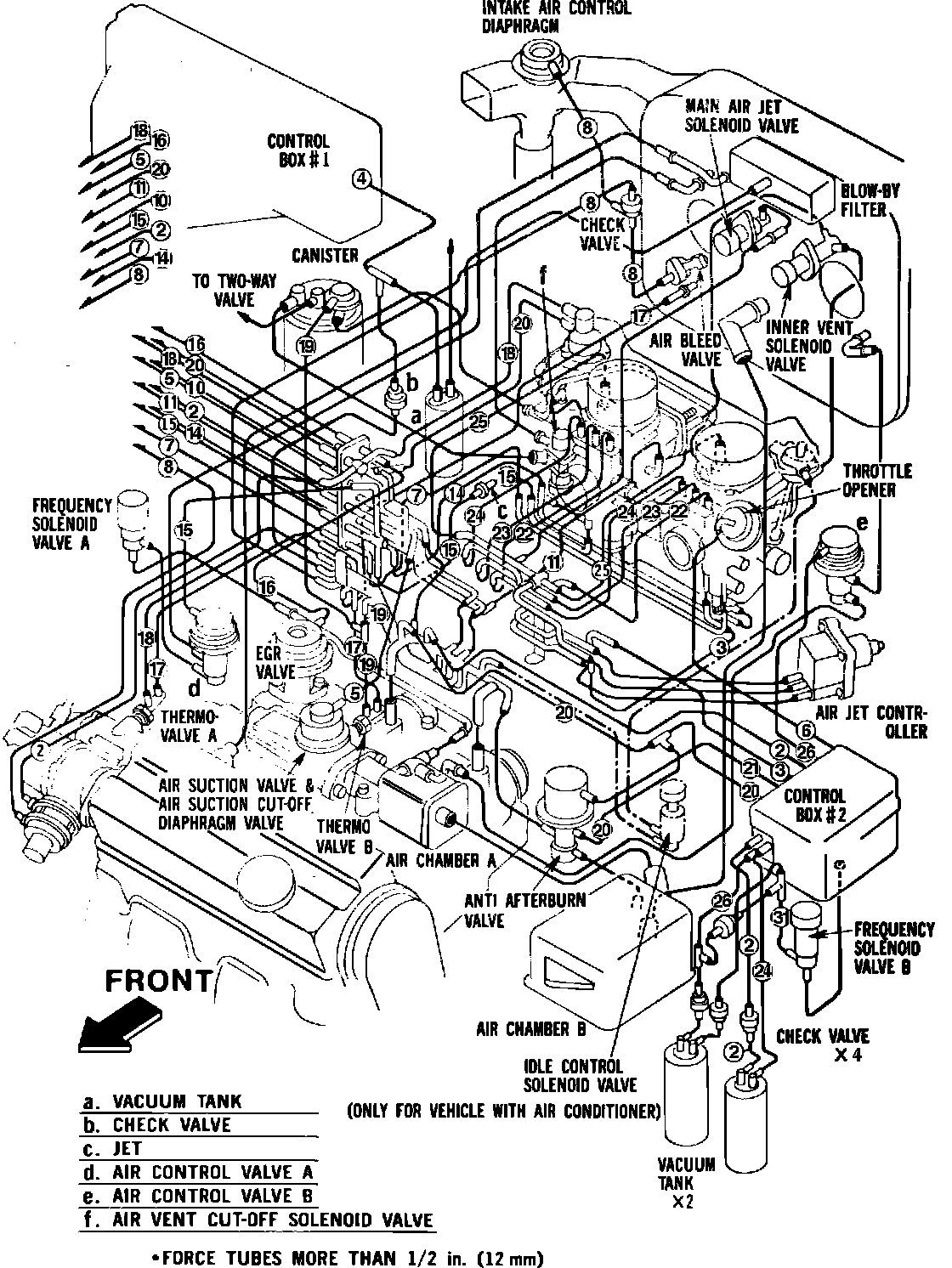

Fig. 21 Engine Compartment Reference Diagram. W/Carbureted Engine:
