Home >> Honda >> 1985 >> Prelude L4-1955cc 2000 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams

Computers and Control Systems: Diagrams

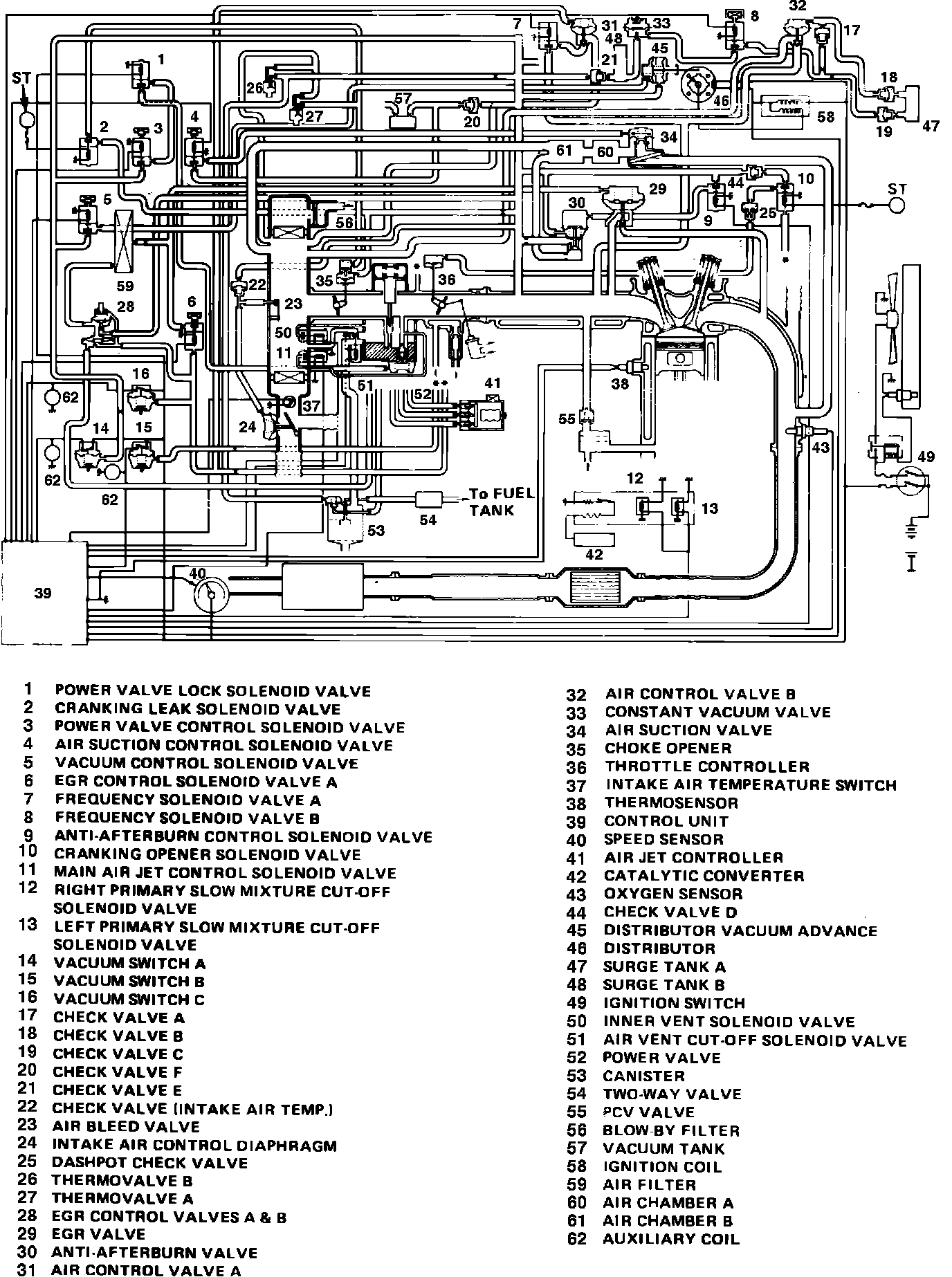

Fig. 6 Emission control vacuum hose routing.:
