Fuse: Locations

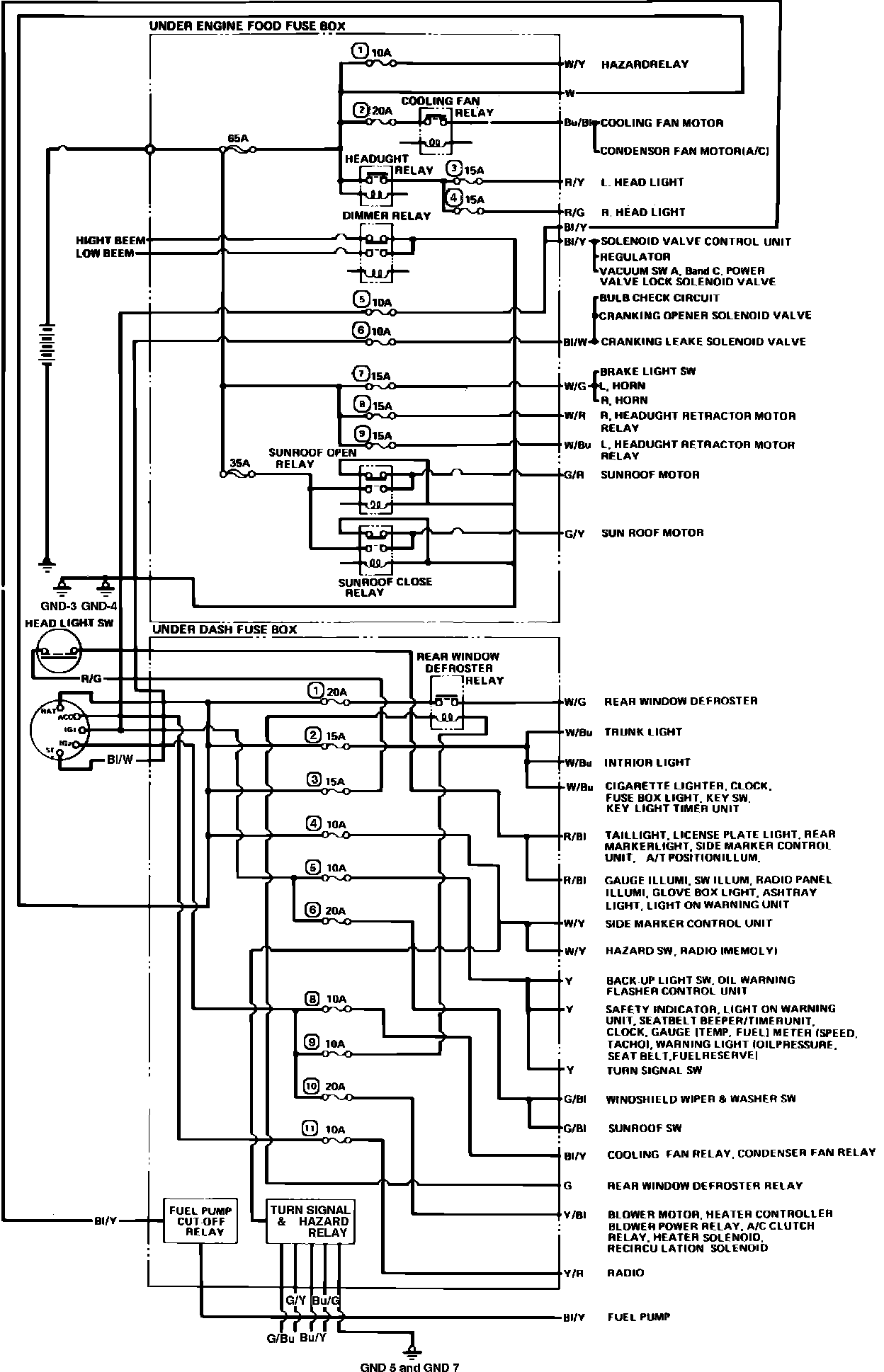

Fig. 8a Fuse Panel & Relay Box (Part 1 of 2):

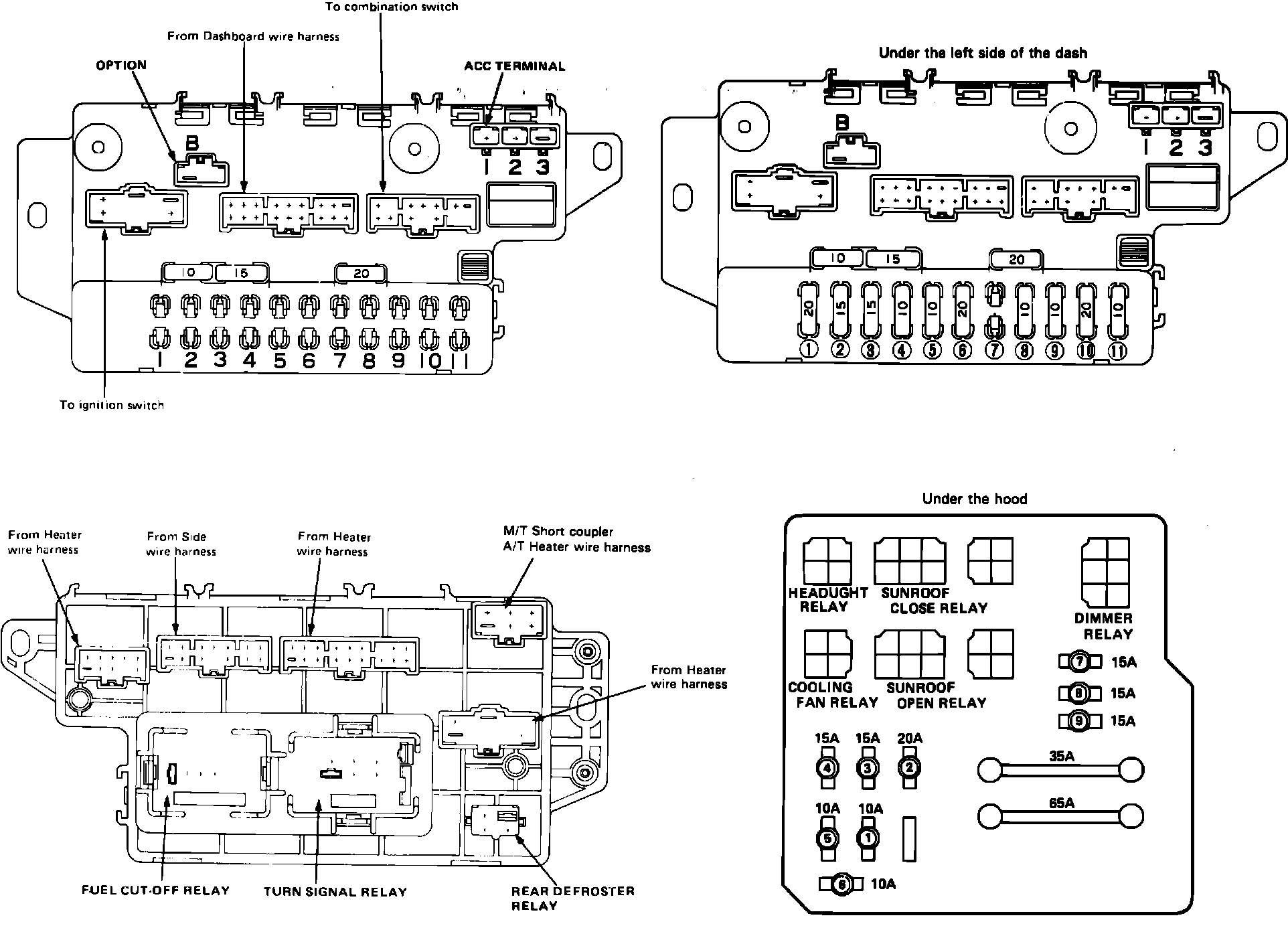

Fig. 8b Fuse Panel & Relay Box (Part 2 of 2):
