Home >> Honda >> 1985 >> Prelude L4-1829cc 1800 ES,ET >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Frequency Valve >> Locations

Frequency Valve: Locations

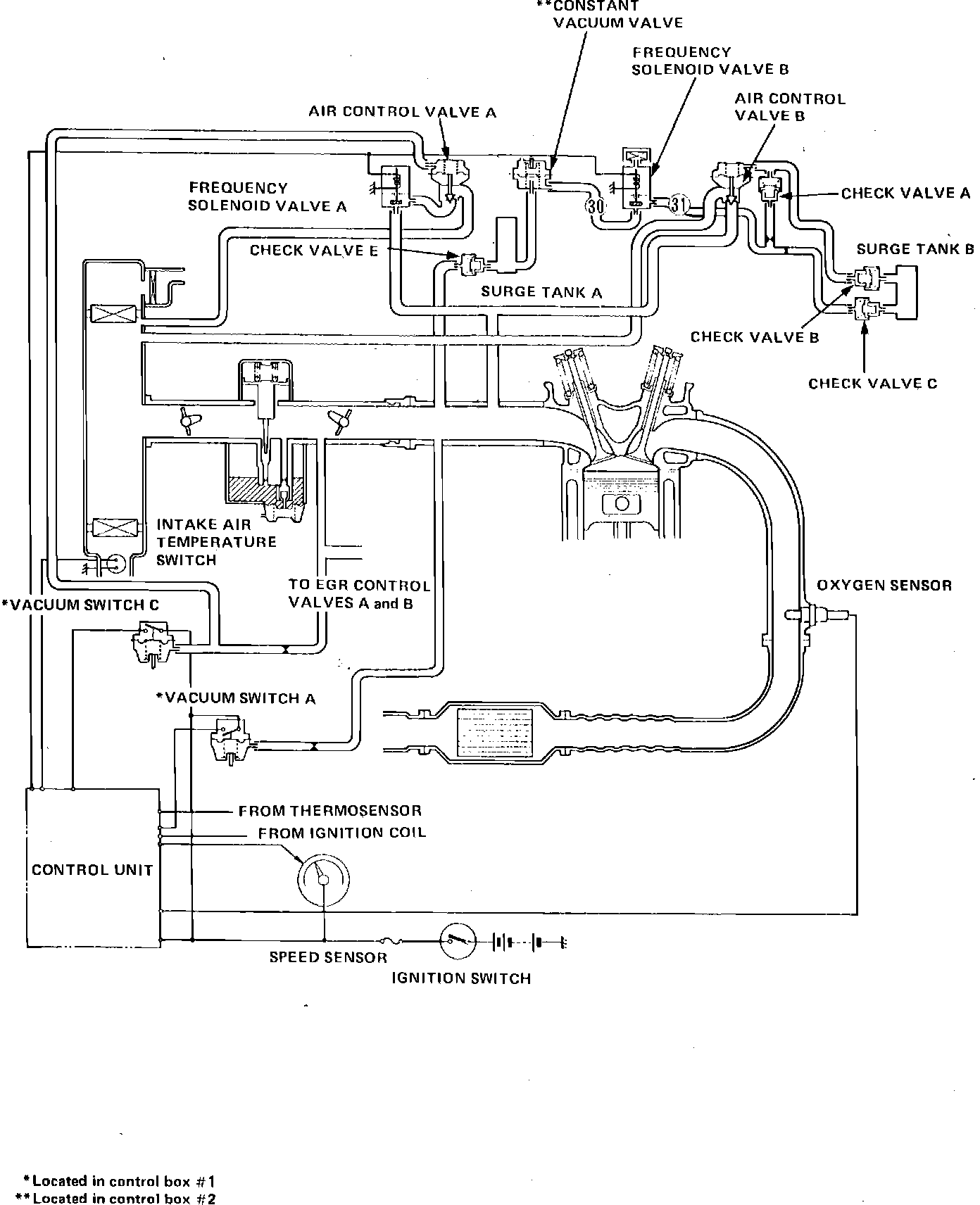

Fig. 214 Feedback Control:
