Cylinder Block Assembly

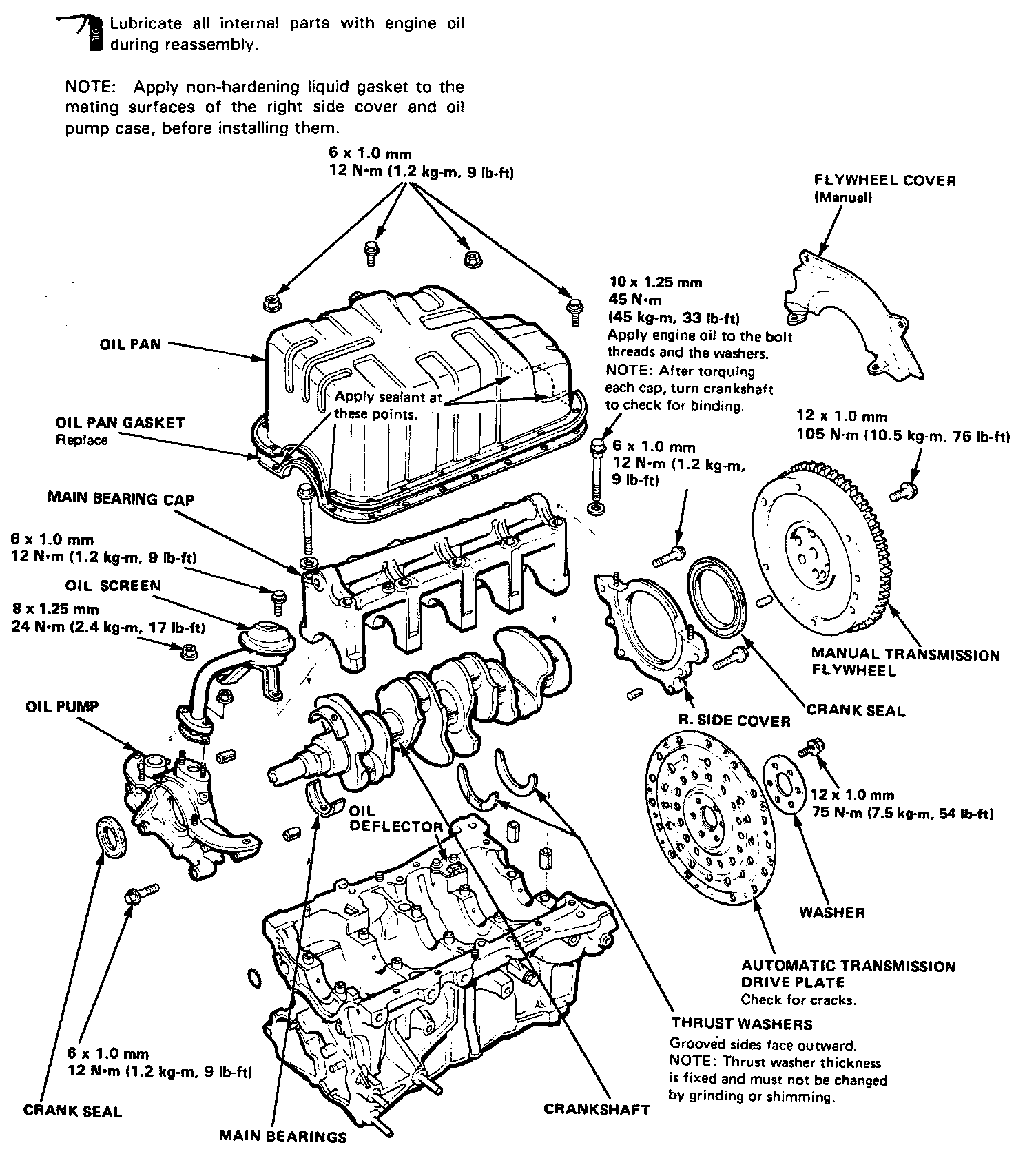

Lower Engine:

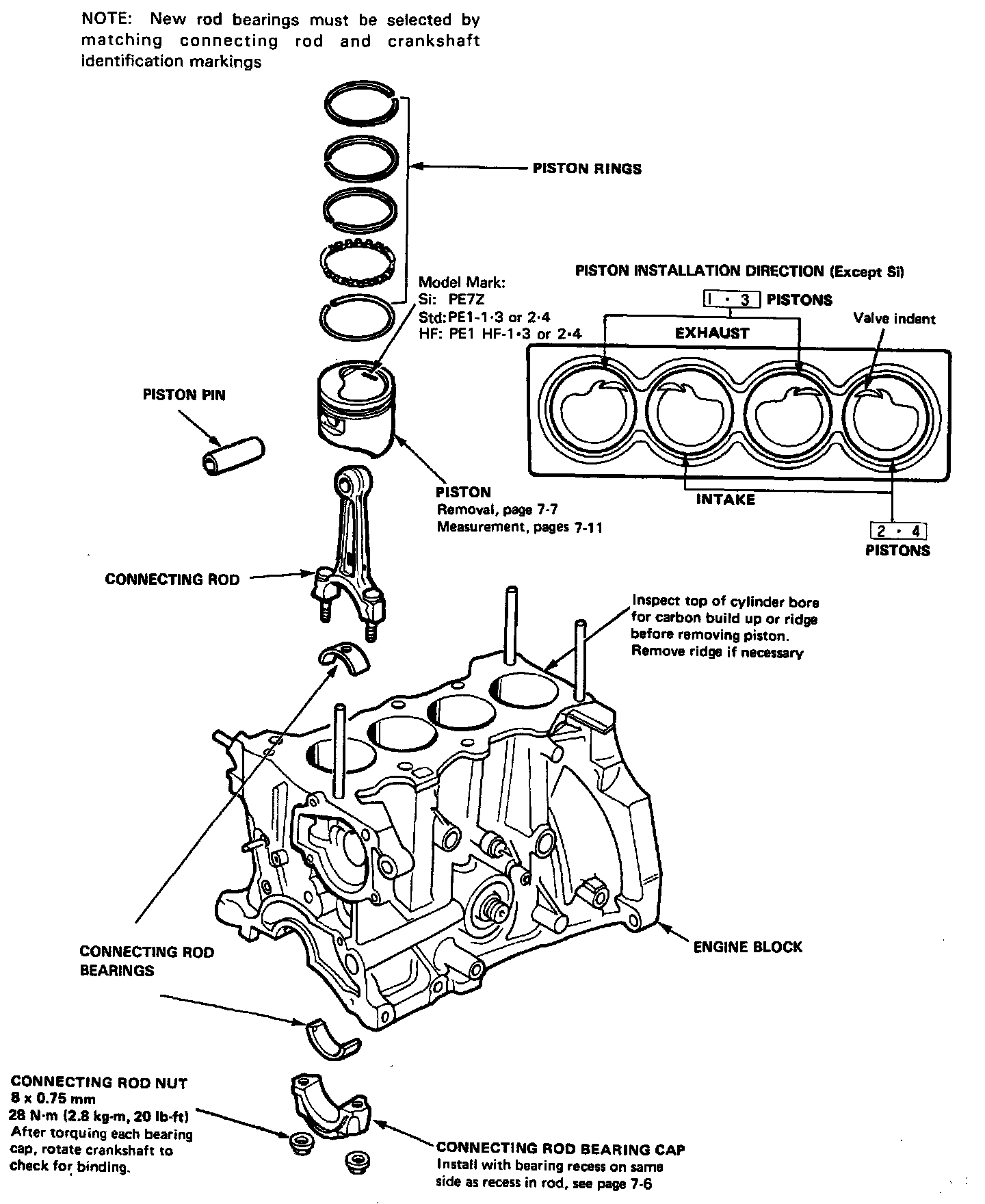

Piston And Connecting Rod:

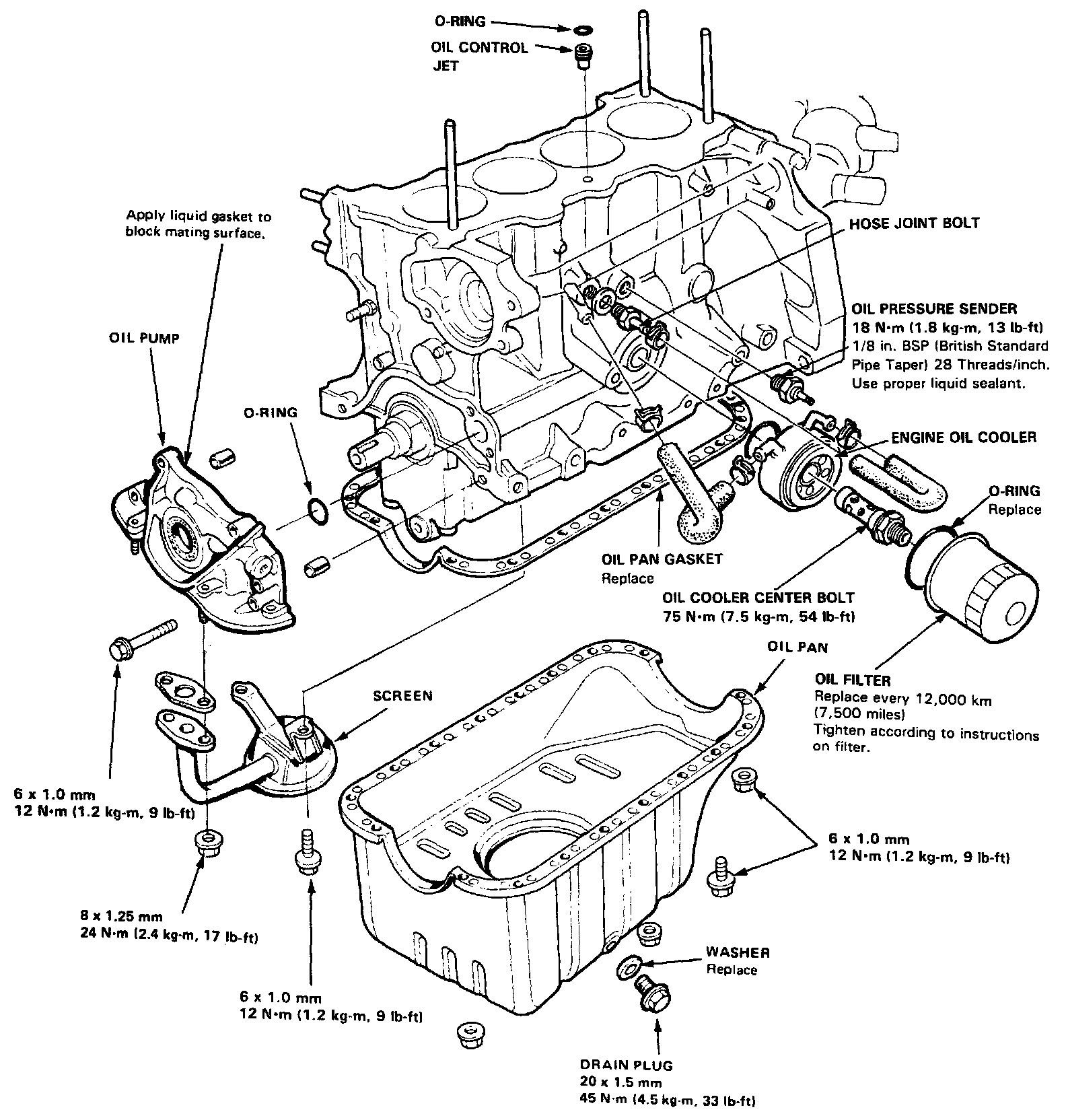

Oil Pan, Drain Plug, Oil Pressure Sender And Oil Pump:
