Home >> Honda >> 1984 >> Prelude L4-1829cc 1800 ES,ET >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams

Computers and Control Systems: Diagrams

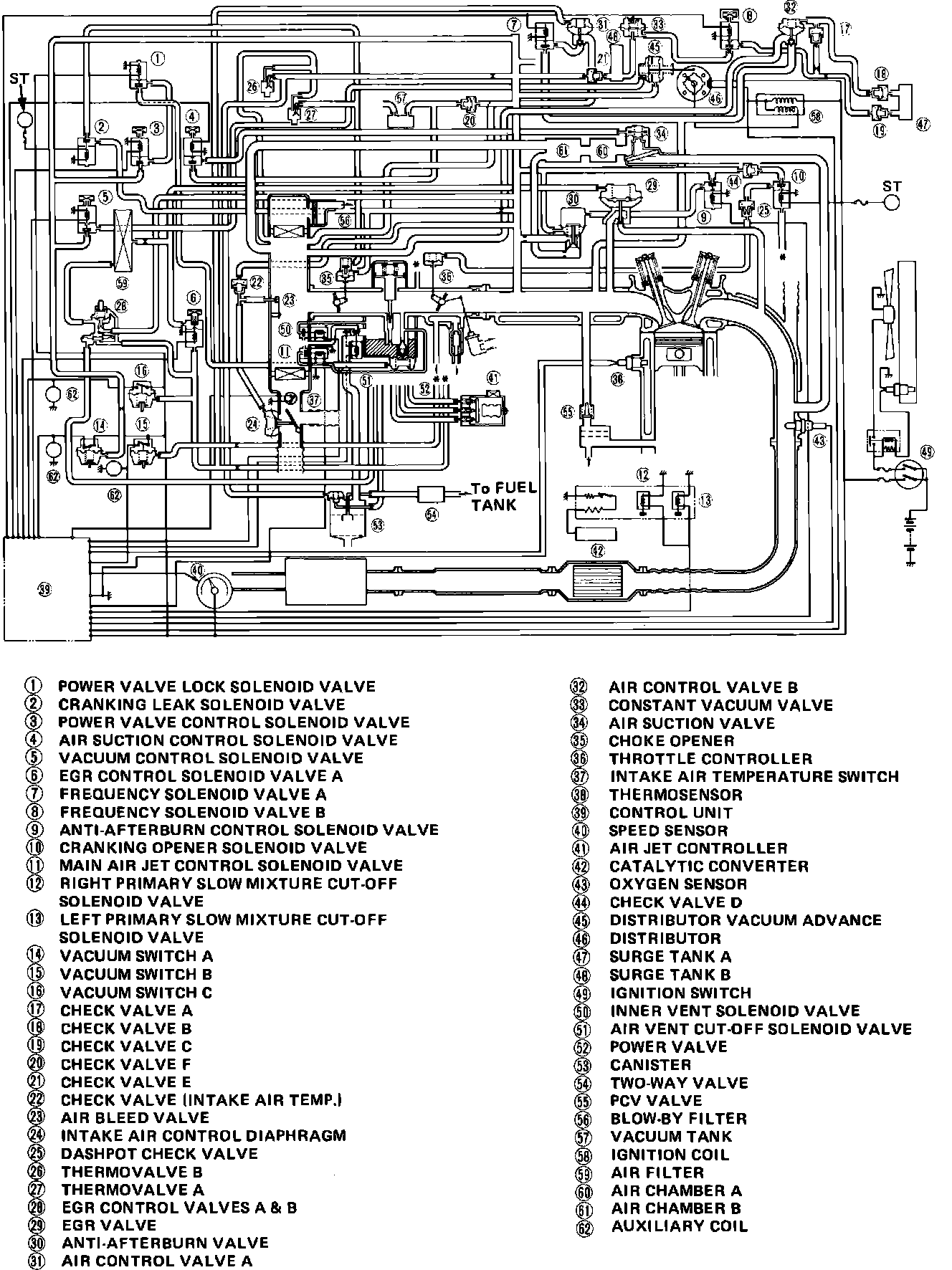

Fig. 104 Emission control vacuum hose routing.:
