Home >> Honda >> 1984 >> CRX L4-1488cc 1.5L EW1, EW3 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Distributor, Ignition

Distributor, Ignition

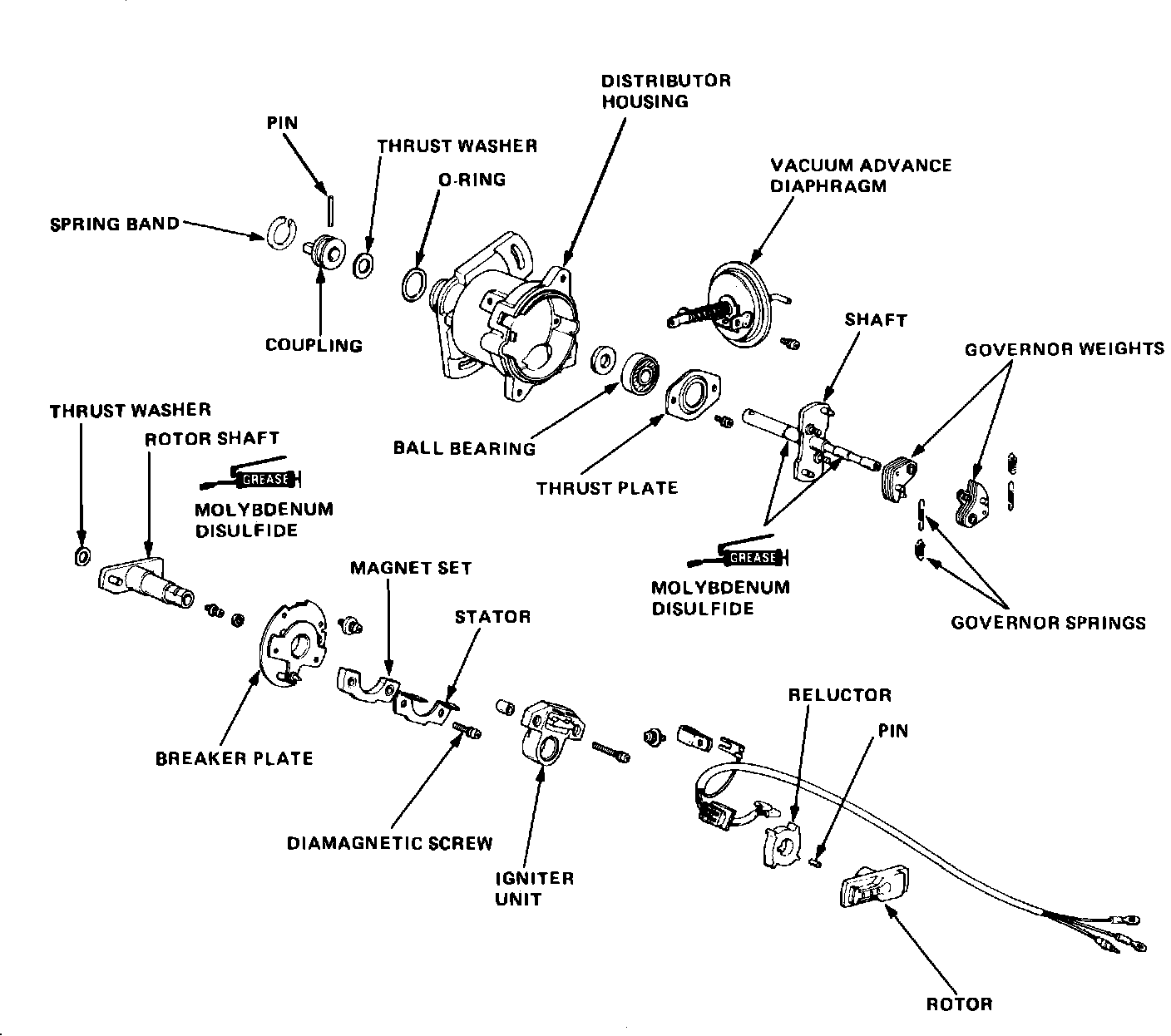

Fig. 46 Hitachi electronic distributor exploded view.:
