Home >> Honda >> 1983 >> Prelude L4-1829cc 1800 ES,ET >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

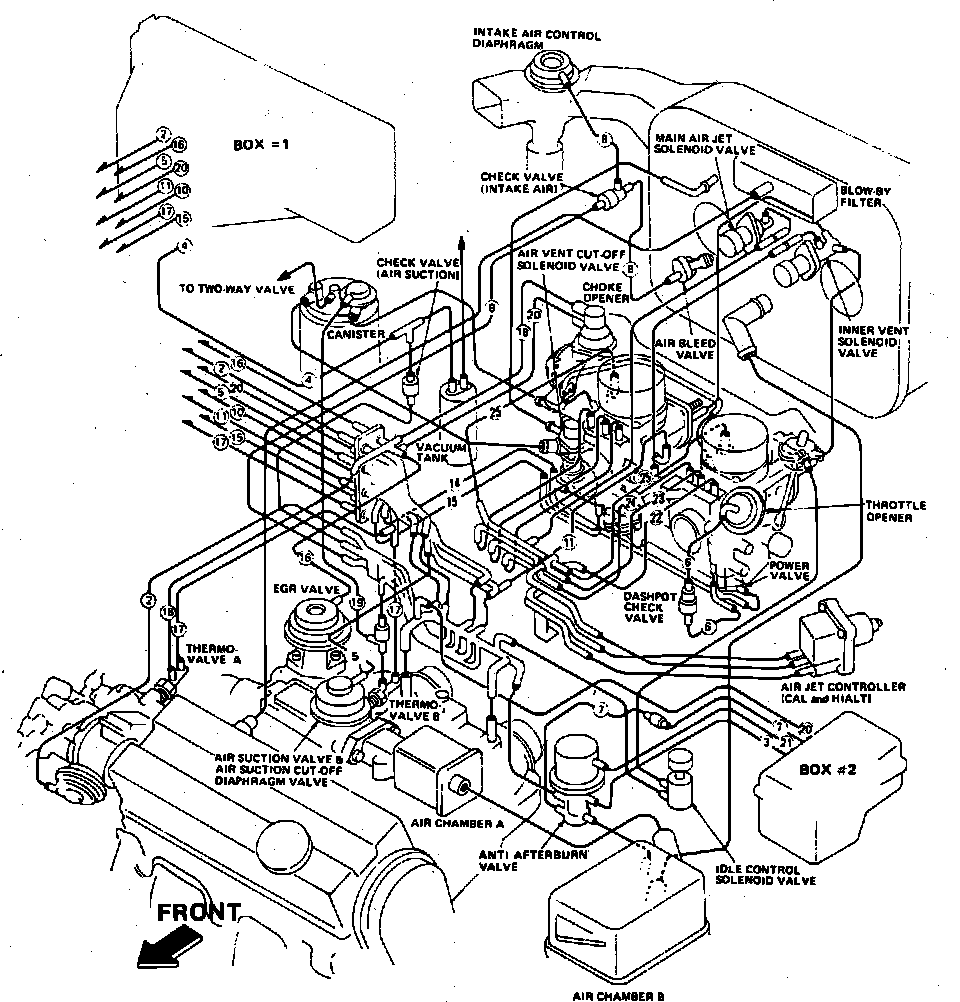

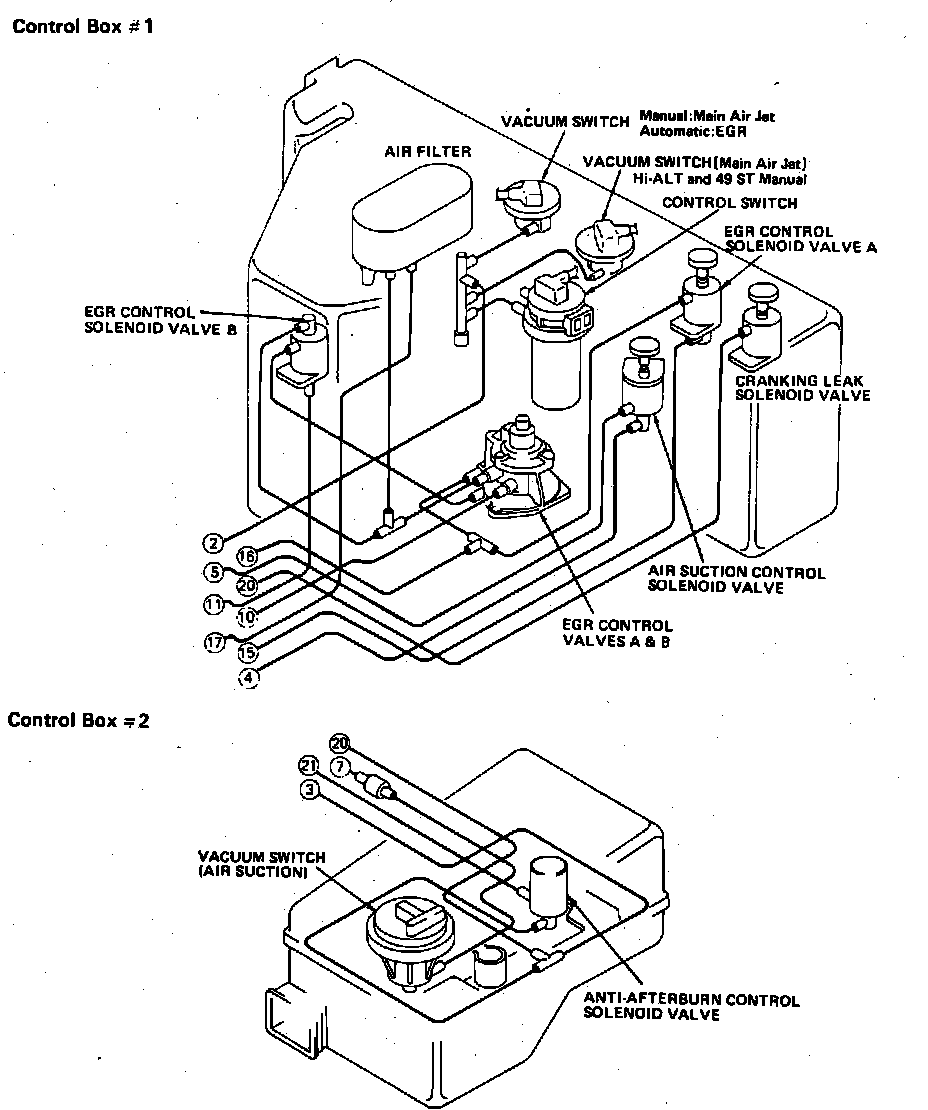

Vacuum Components & Connections (Part 1 Of 2).:

Vacuum Components & Connections (Part 1 Of 2).:

Engine Compartment

Applicable to: 1983
