Home >> Geo >> 1997 >> Tracker 4x2 L4-1.6L VIN 6 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly >> System Diagram

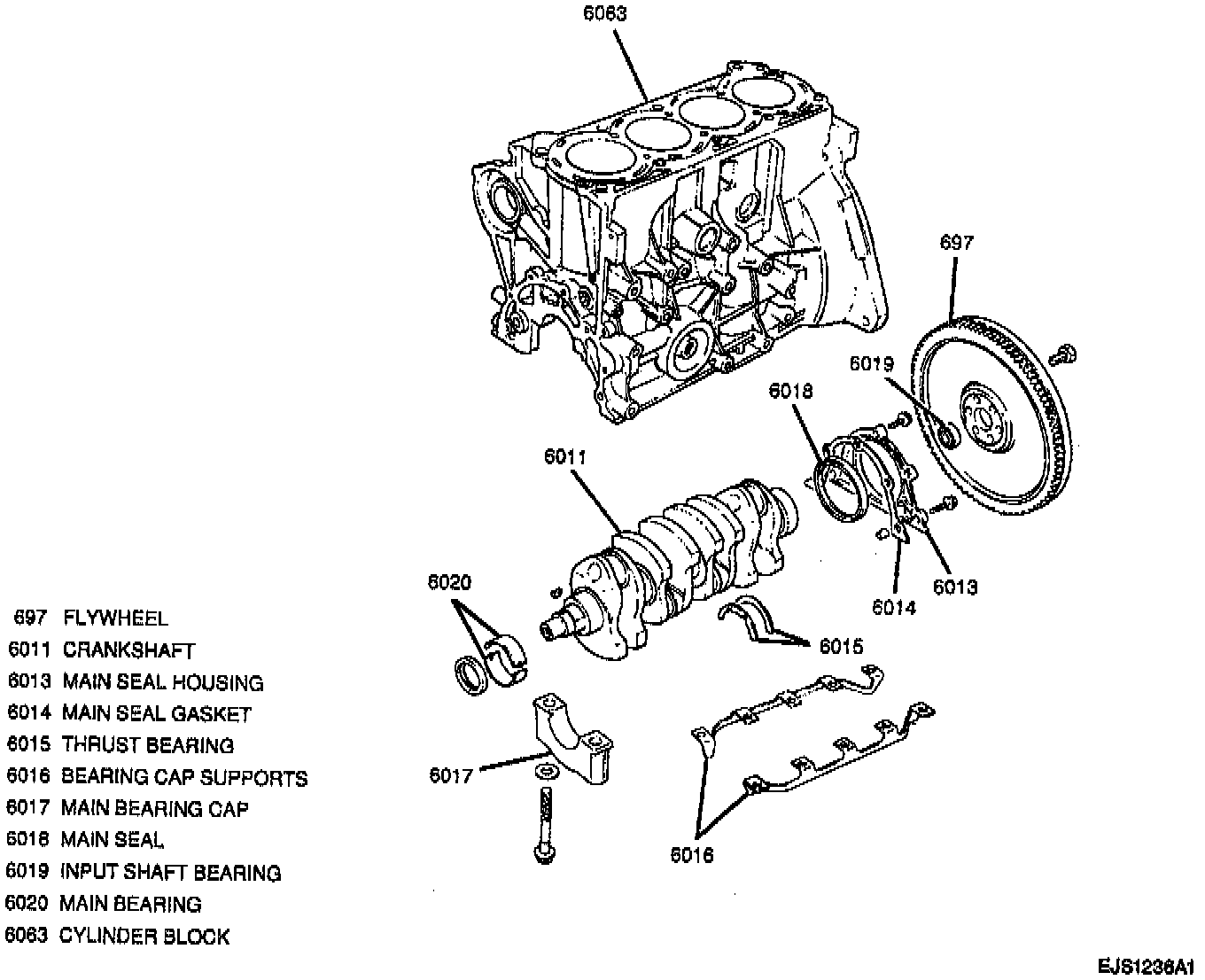

System Diagram
