Home >> Geo >> 1996 >> Tracker 4x4 L4-1.6L VIN 6 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block 1

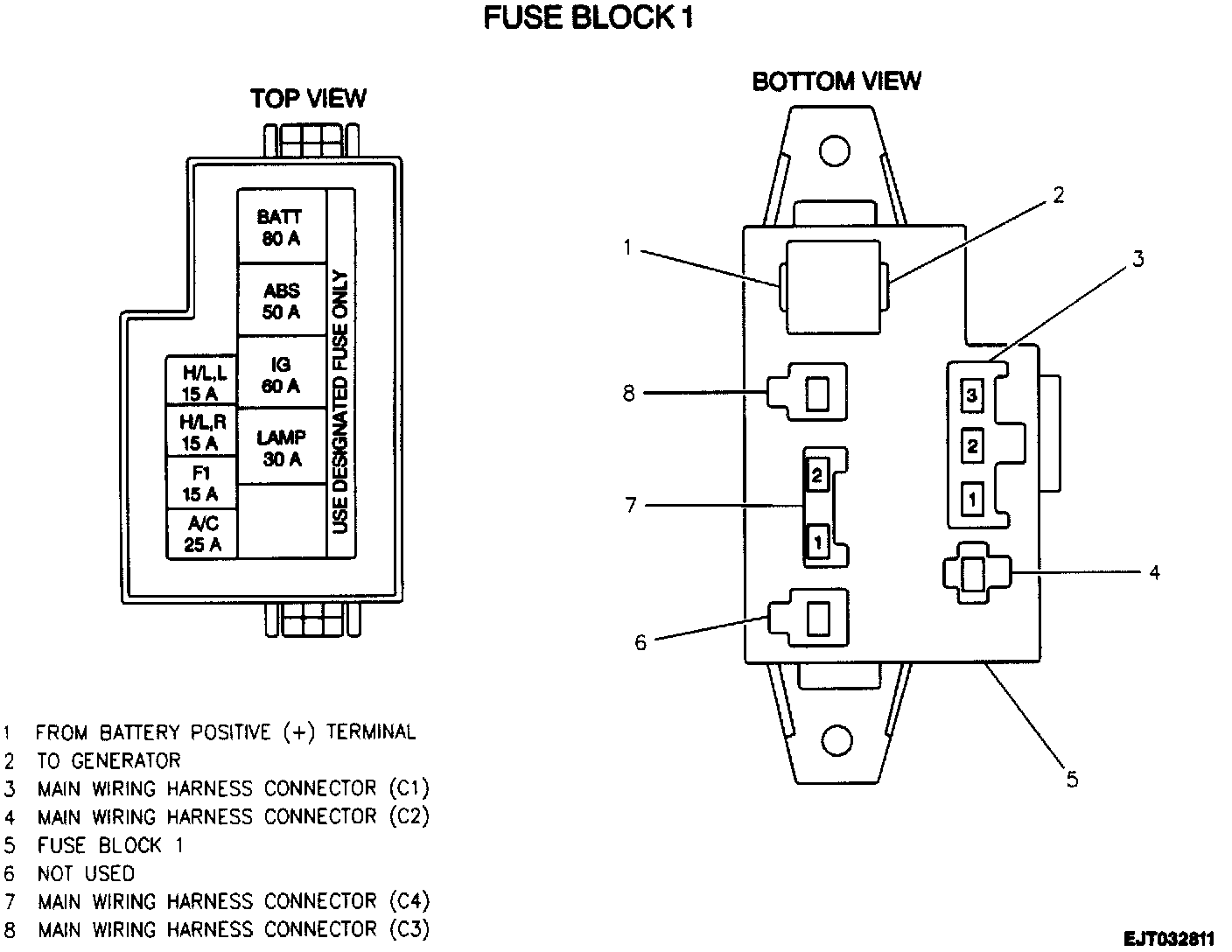

Fuse Block 1

Fuse Block 1:
