Geo
>>
1996
>>
Tracker 4x2 L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Connector Views
Connector Views

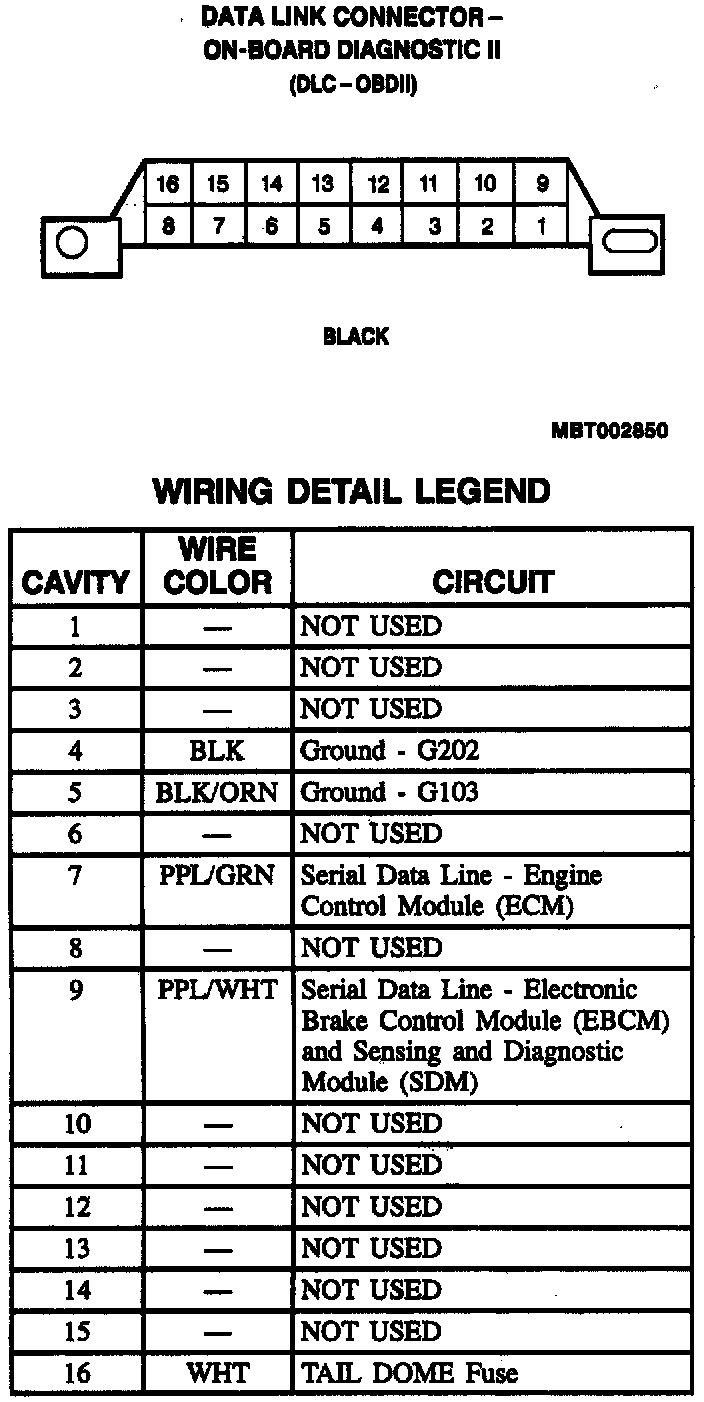

Data Link Connector-On Board Diagnostic II (DLC-OBDII):
