Home >> Geo >> 1996 >> Tracker 4x2 L4-1.6L VIN 6 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C1

C1

Diag Chart:

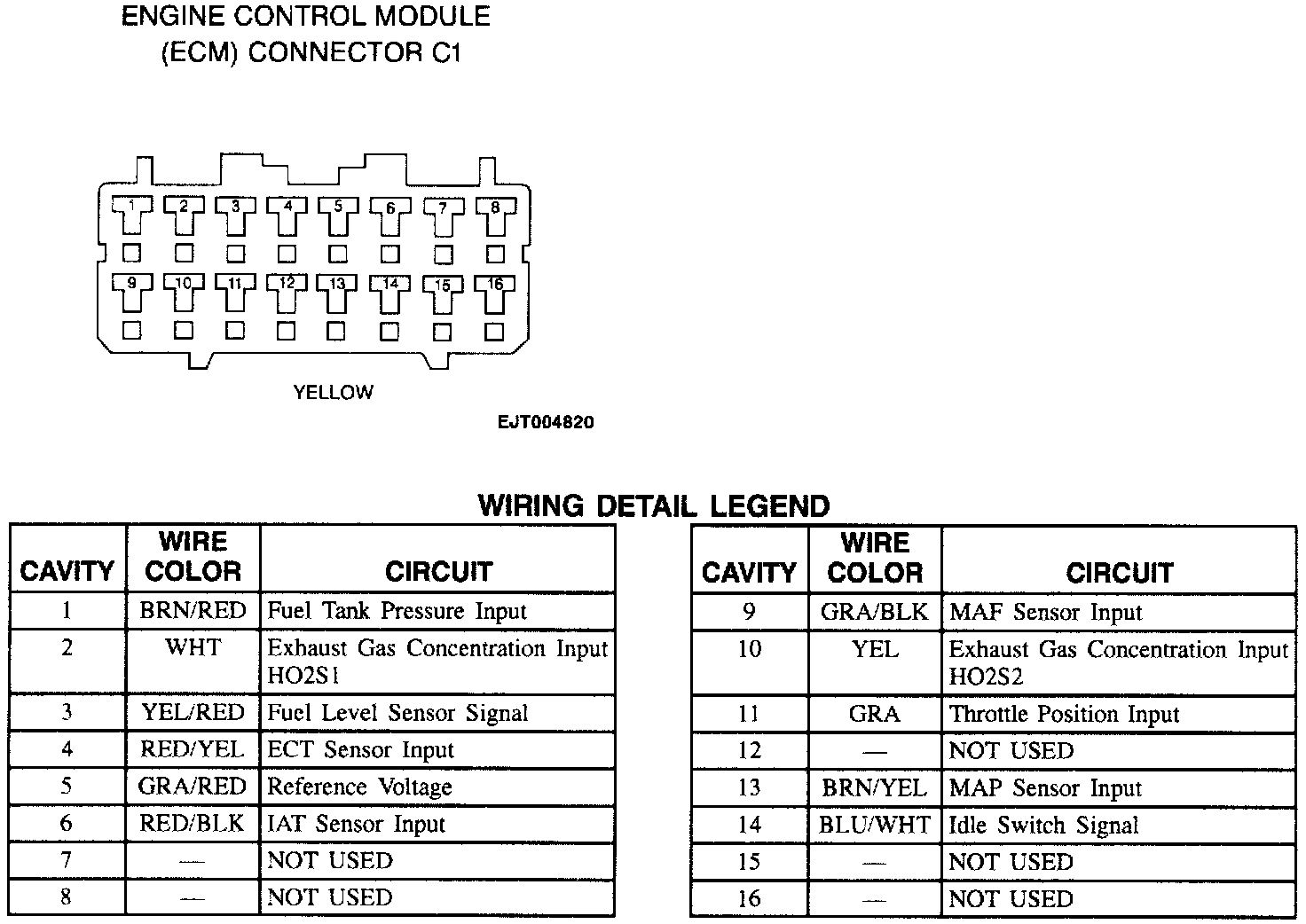

Engine Control Module (ECM) Connector C1:
