Home >> Geo >> 1996 >> Tracker 4x2 L4-1.6L VIN 6 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Fuse Block 1

Fuse Block 1

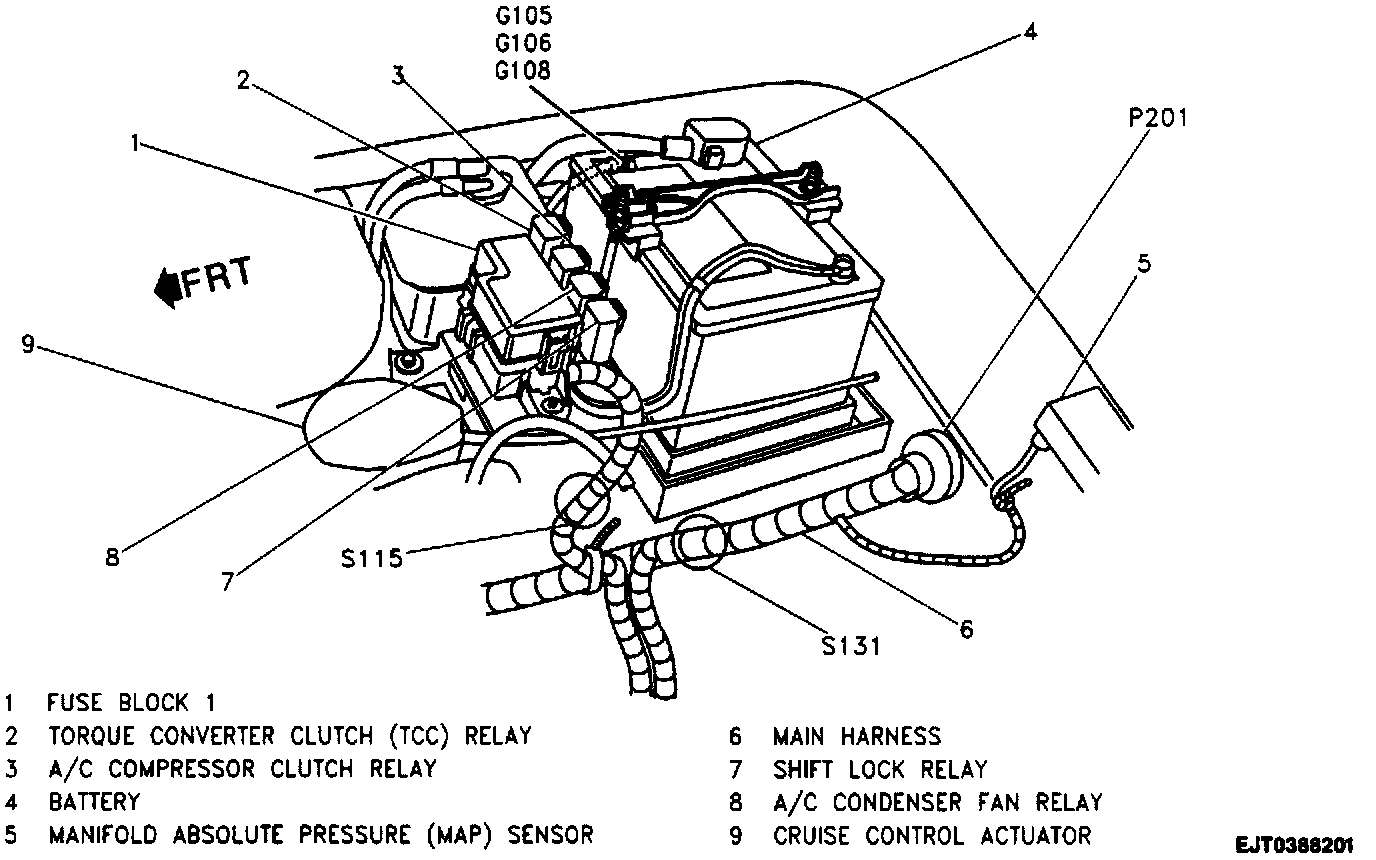

RH Rear Engine Compartment:

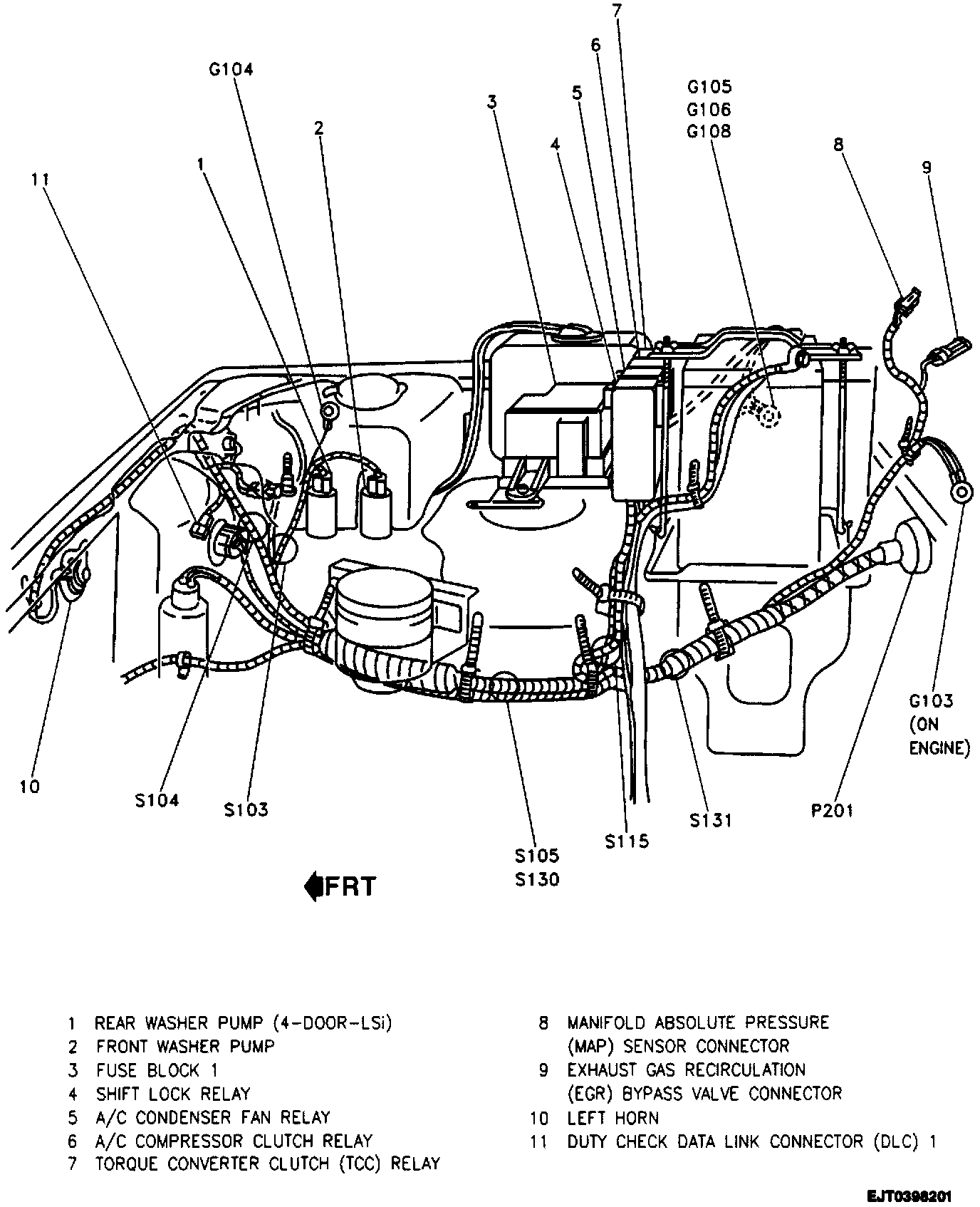

RH Engine Compartment:




RH Front Engine Compartment:
