System Check

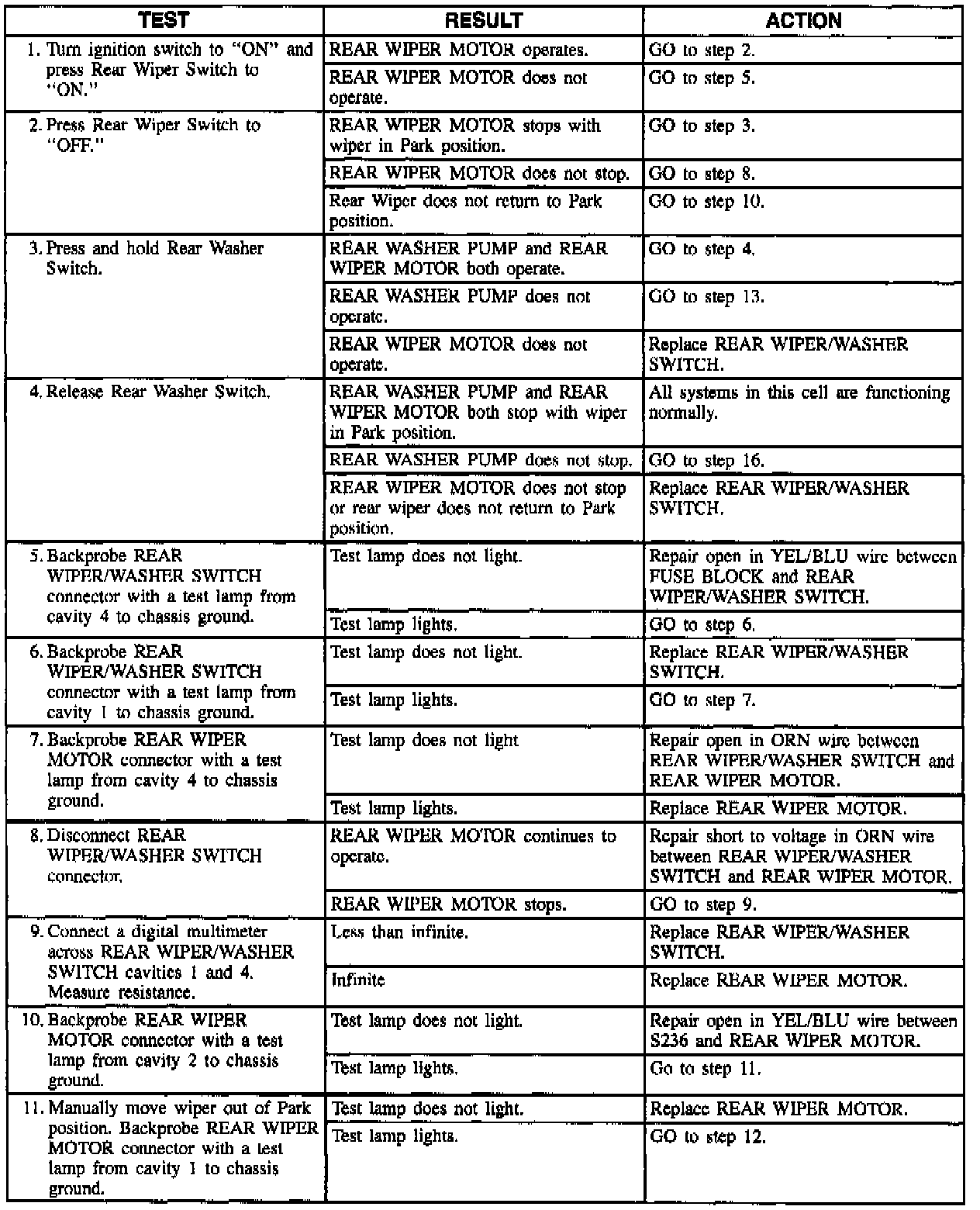

Fig. 7 Rear Wiper System Diagnosis Chart (Part 1 Of 2).:

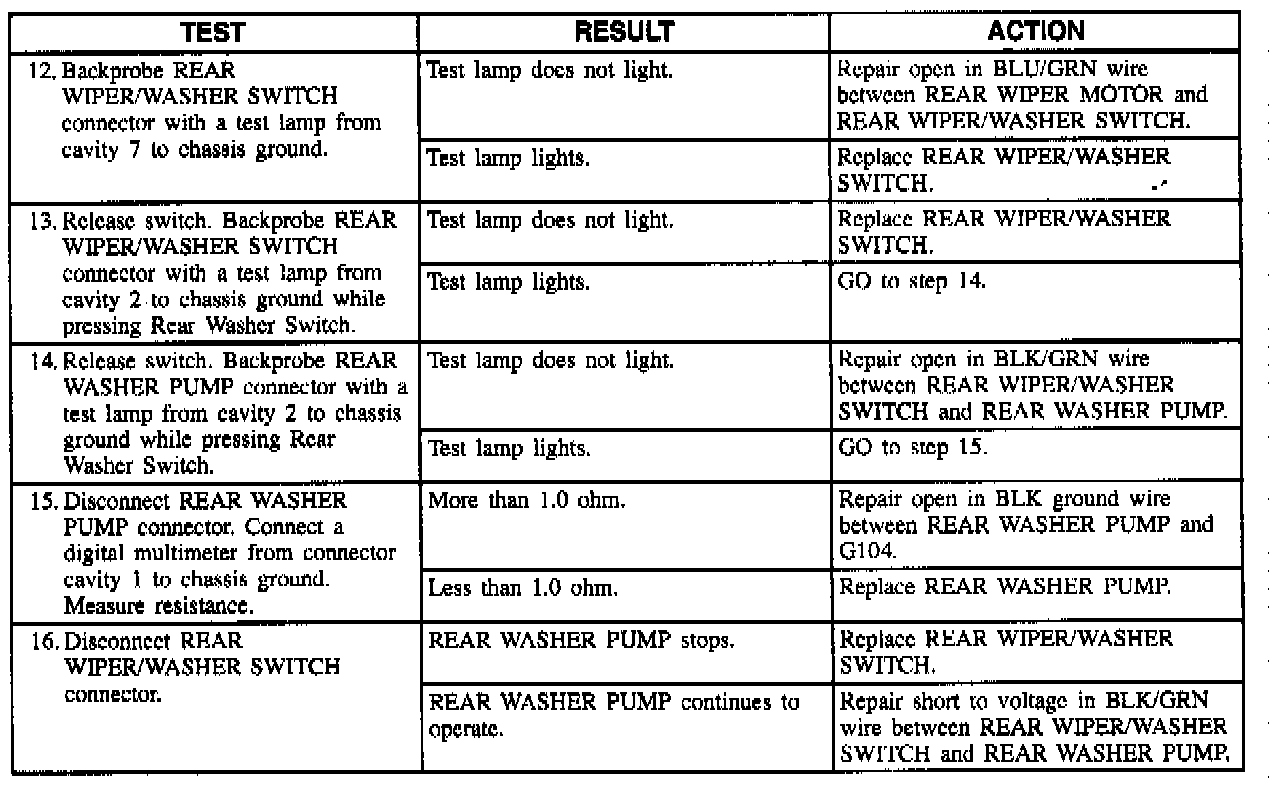

Fig. 7 Rear Wiper System Diagnosis Chart (Part 2 Of 2).:
