Home >> Geo >> 1995 >> Tracker 4x2 L4-1.6L VIN 6 >> Repair and Diagnosis >> Maintenance >> Alignment >> Specifications >> Vehicle Ride (Trim) Height Specifications

Vehicle Ride (Trim) Height Specifications

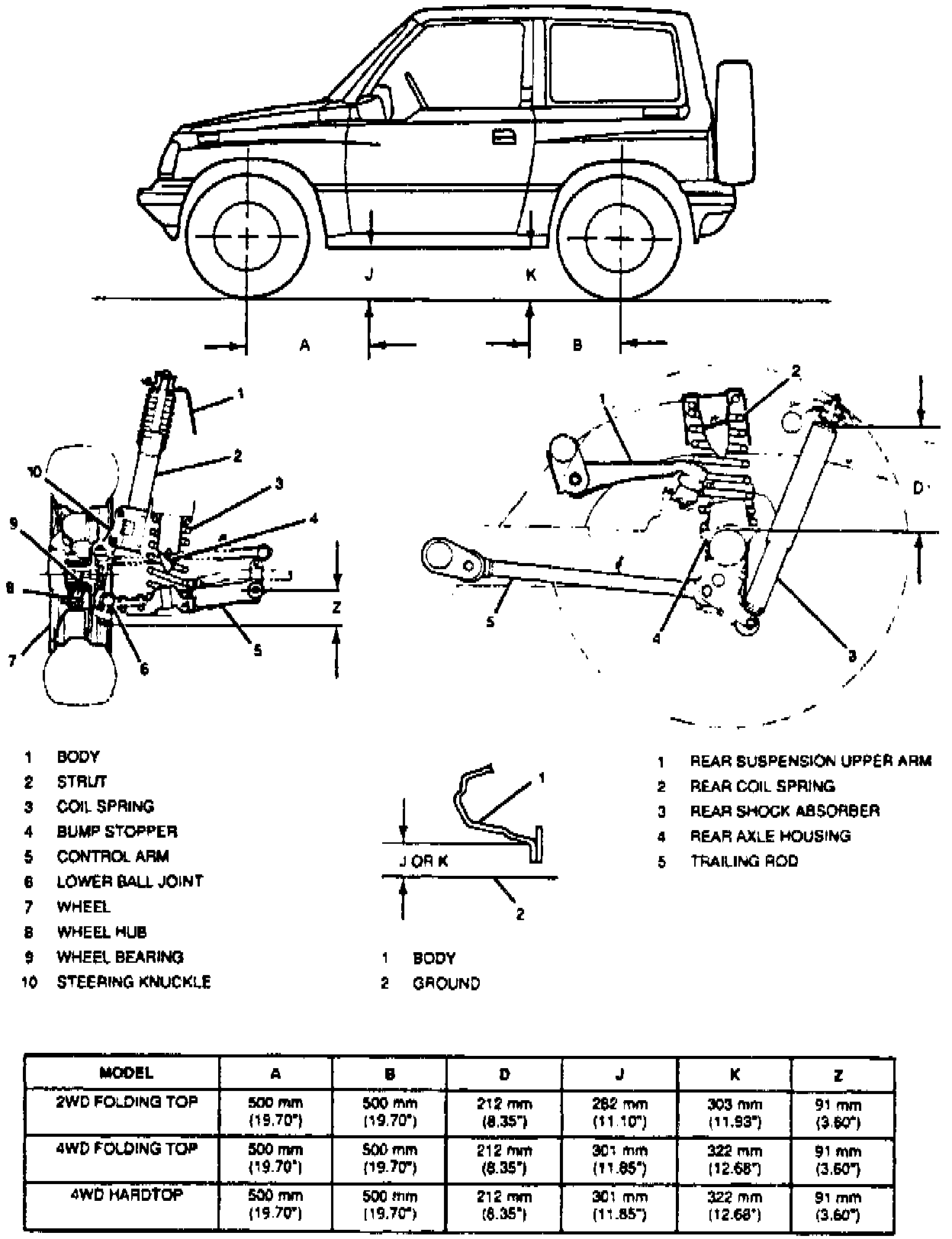

Fig. 1 Vehicle Ride Height Measurement.:





Refer to Fig. 1 for ride height measurement locations and specifications.
