Cruise Control Servo Cable: Adjustments

1. Disconnect battery ground cable.
2. Remove servo cover, then loosen lock nuts.

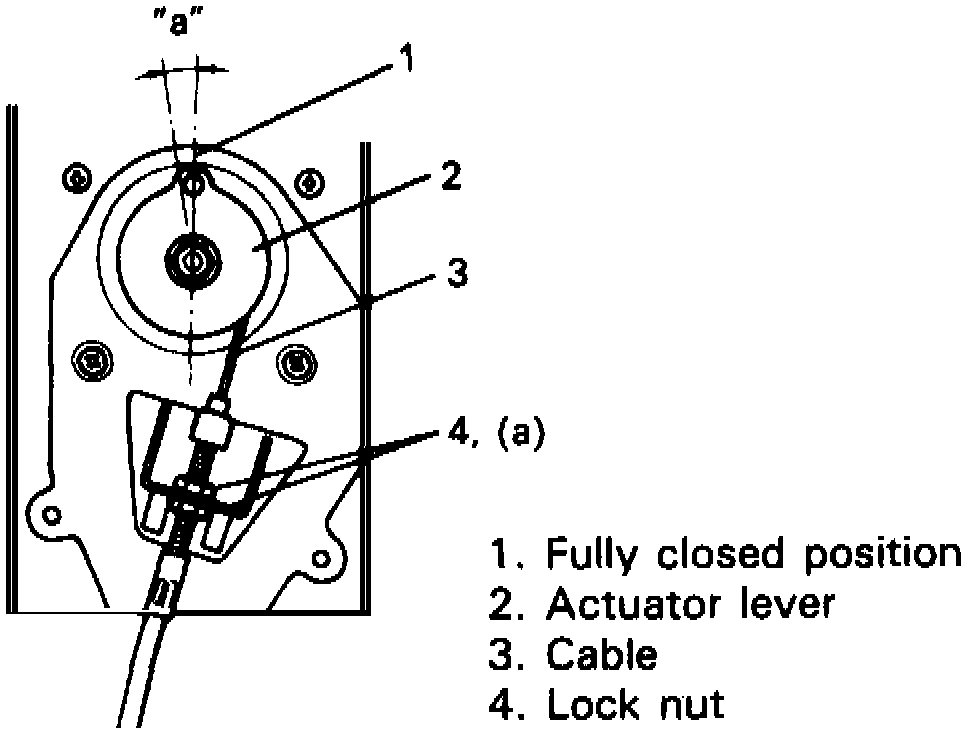

Fig. 2 Servo Cable Adjustment.:

3. Adjust cable to obtain.04-.08 inch play, Fig. 2, with servo lever fully closed.
4. Torque locknuts to 48 inch lbs.
