Diagnostic Procedures

Verify clean, tight connection on G106 (Brown wire). An intermittent condition may be caused by poor connection, rubbed-through insulation, or a broken wire inside insulation. Check PCM harness connectors for backed-out terminals, improper mating, broken locks, improperly formed or damaged terminals, and poor terminal-to-wire connections before component replacement.

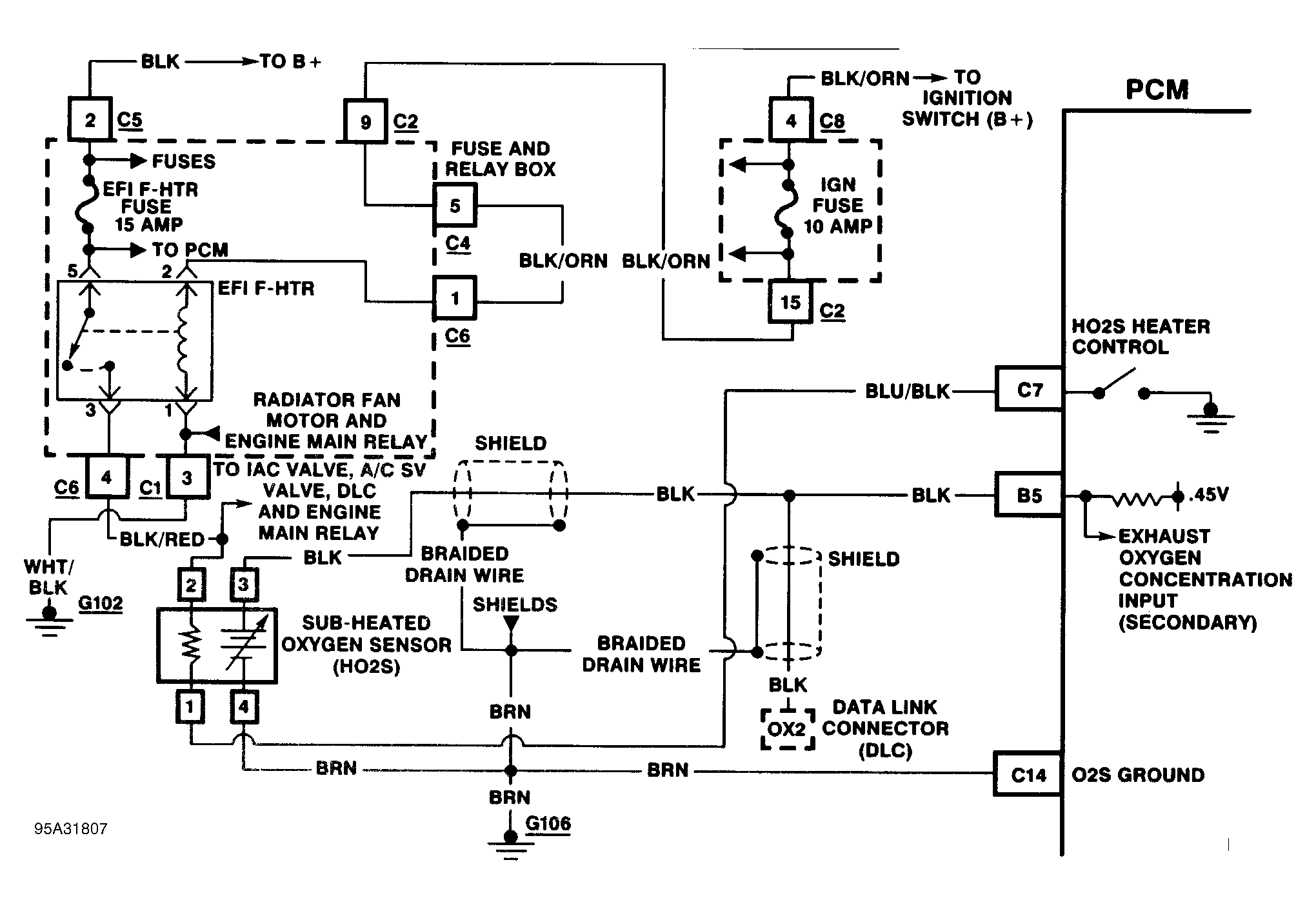

Fig 1: DTC 27 Schematic (Prizm 1.8L - VIN 8) (Federal Emissions) Sub-O2 Sensor (Sub-O2s), Open Or Shorted Circuit

Fig 2: DTC 27 Diagnostic Flow Chart (Prizm 1.8L - VIN 8) (Federal Emissions) Sub-O2 Sensor (Sub-O2s), Open Or Shorted Circuit
