Home
>>
Geo
>>
1995
>>
Metro L4-079 1.3L VIN 9 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

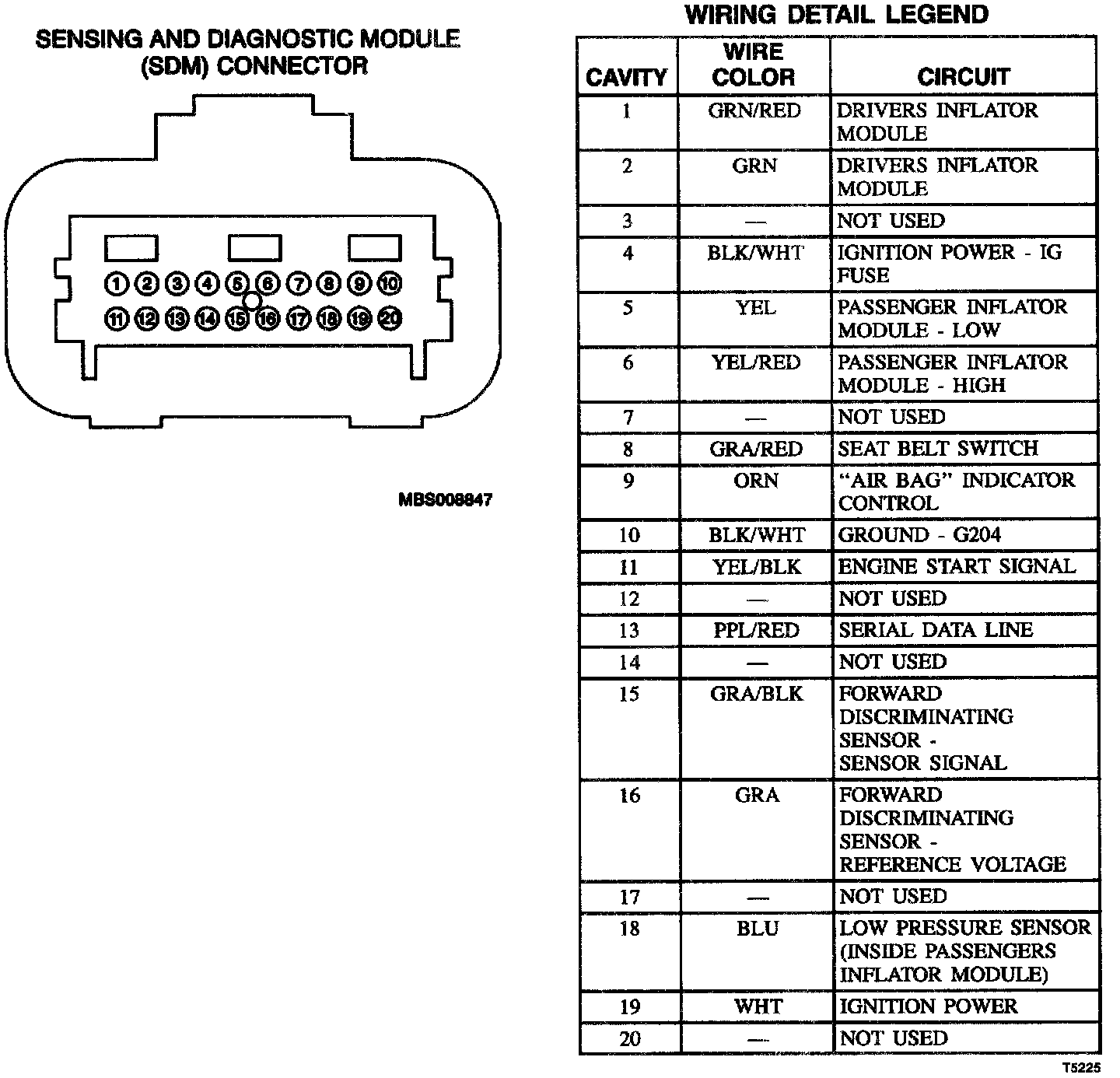

Sensing And Diagnostic Module (SDM) Connector:
