1994
>>
Prizm L4-1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Switches
>>
Brake Fluid Level Switch
Brake Fluid Level Switch

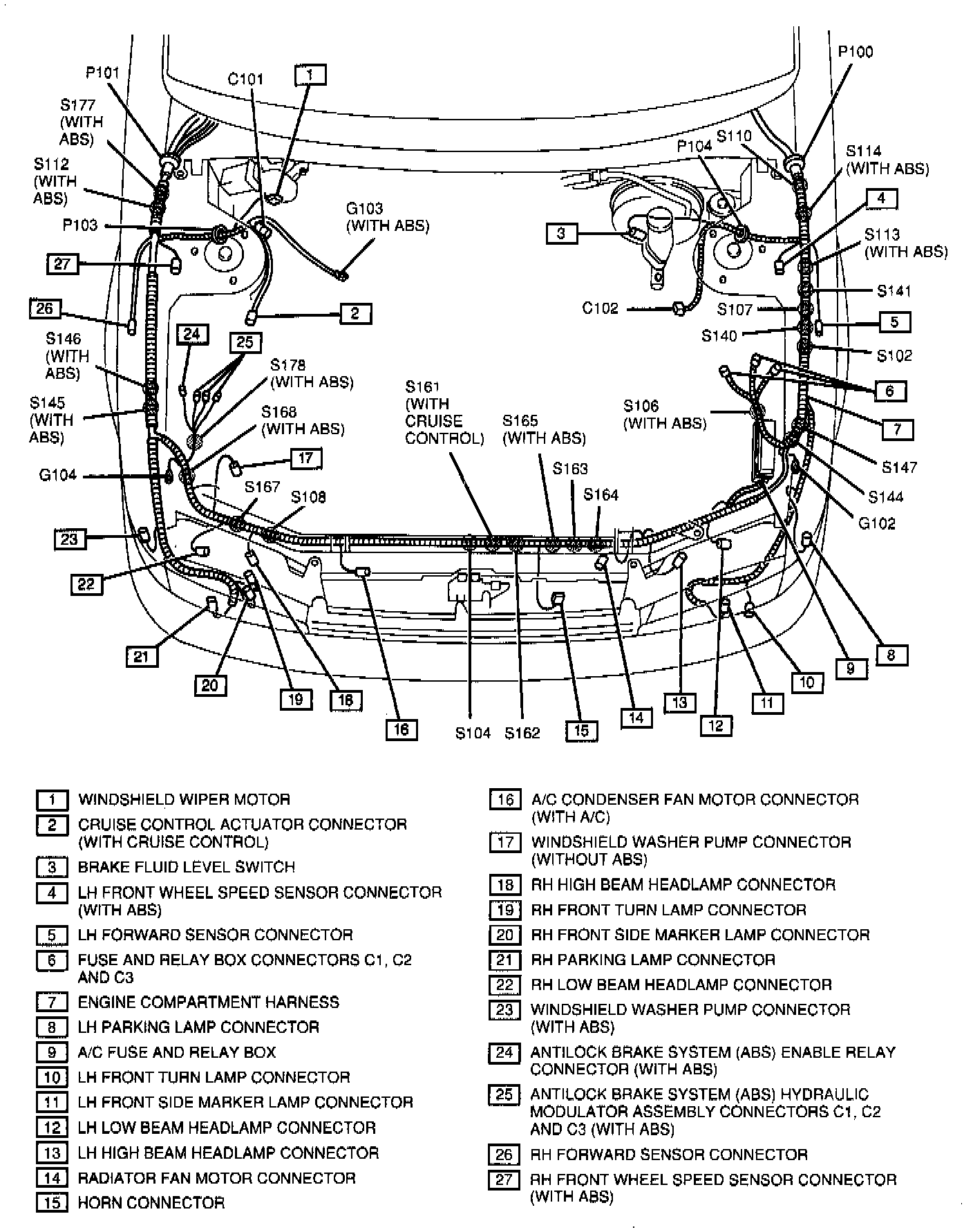

Figure A - Engine Compartment Wiring:
