Home >> Geo >> 1994 >> Prizm L4-1.6L DOHC >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> Stop Switch, Module & Control Actuator

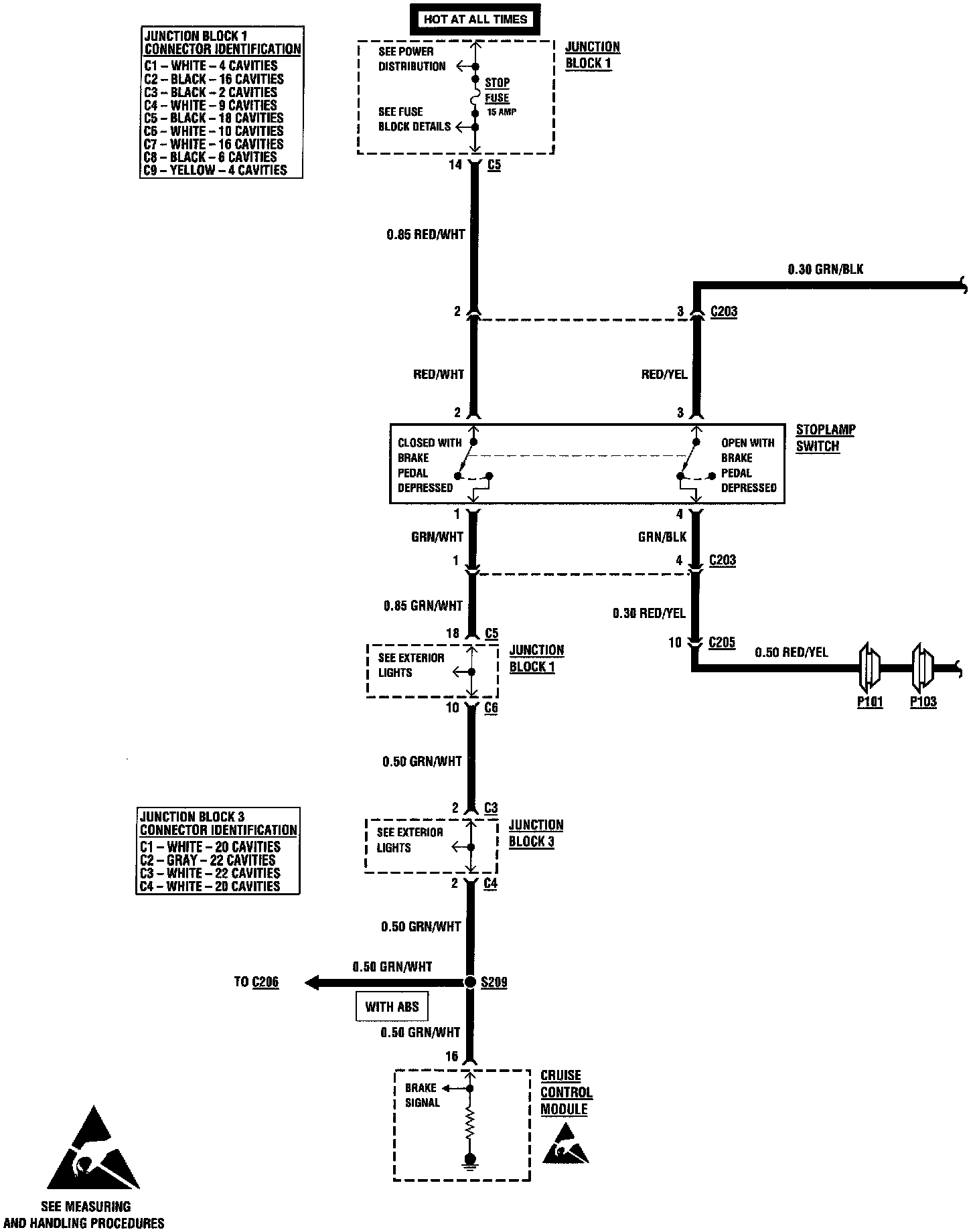

Stop Switch, Module & Control Actuator

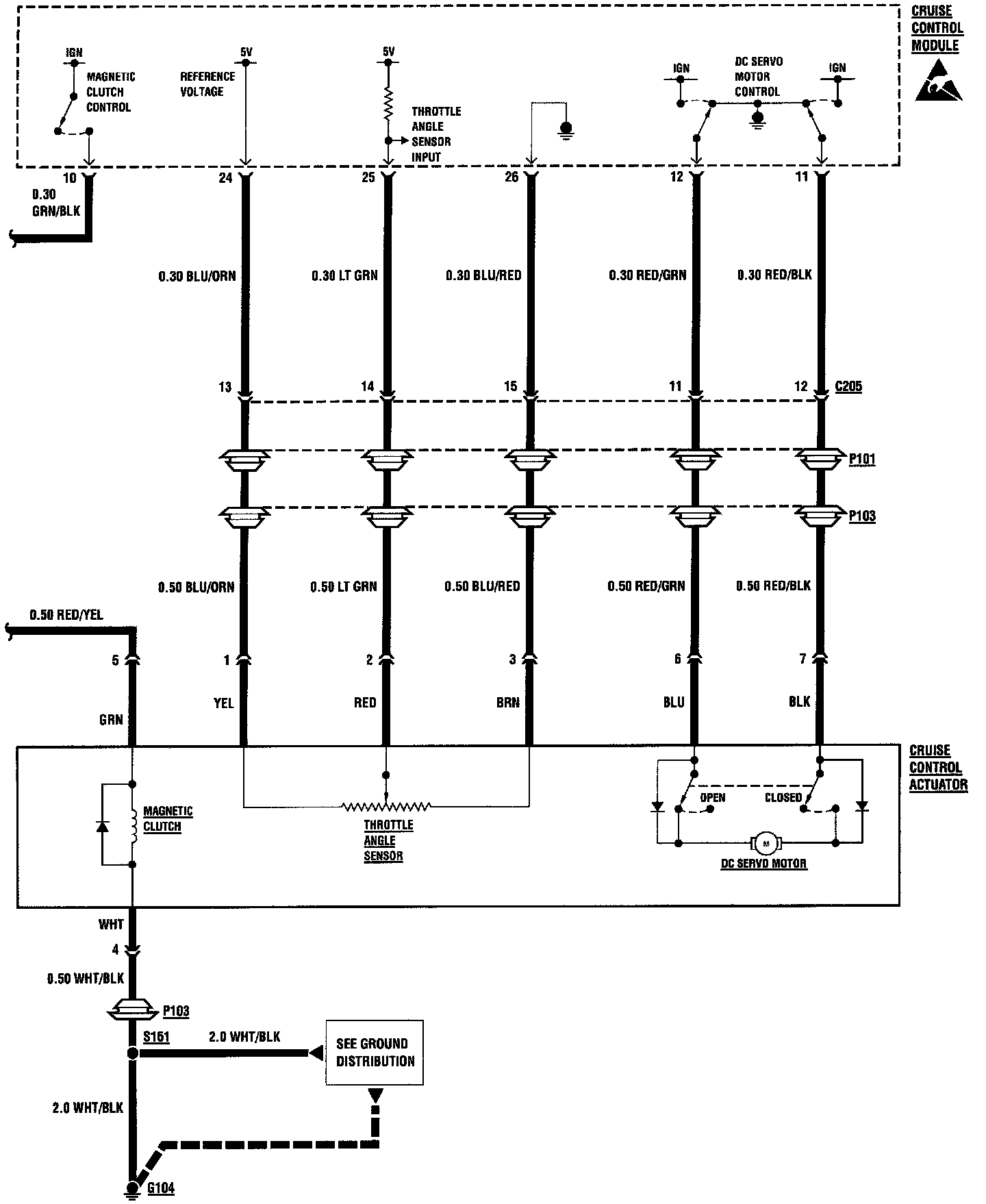

Cruise Control:



Cruise Control Continued:
