With Upgraded Emissions

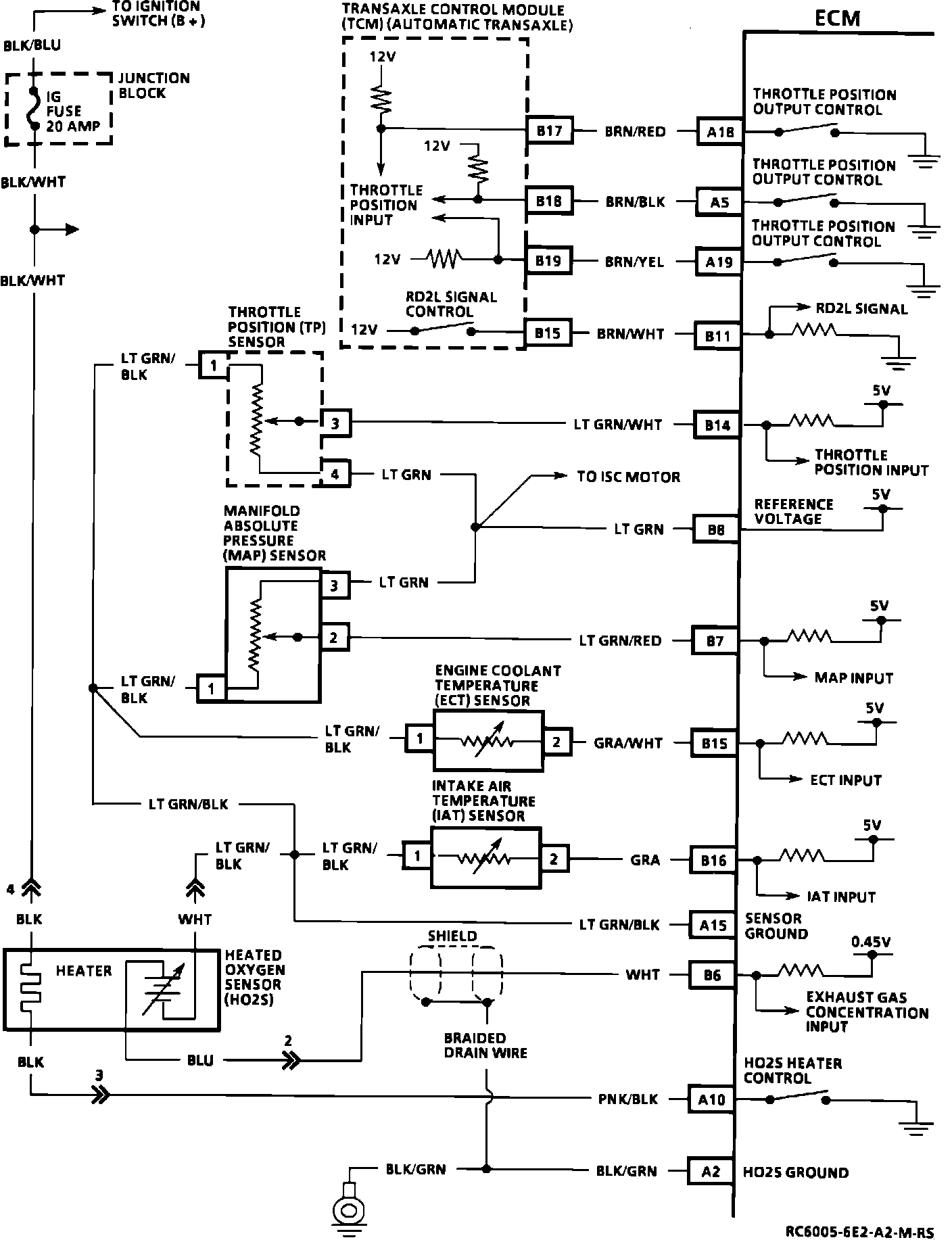

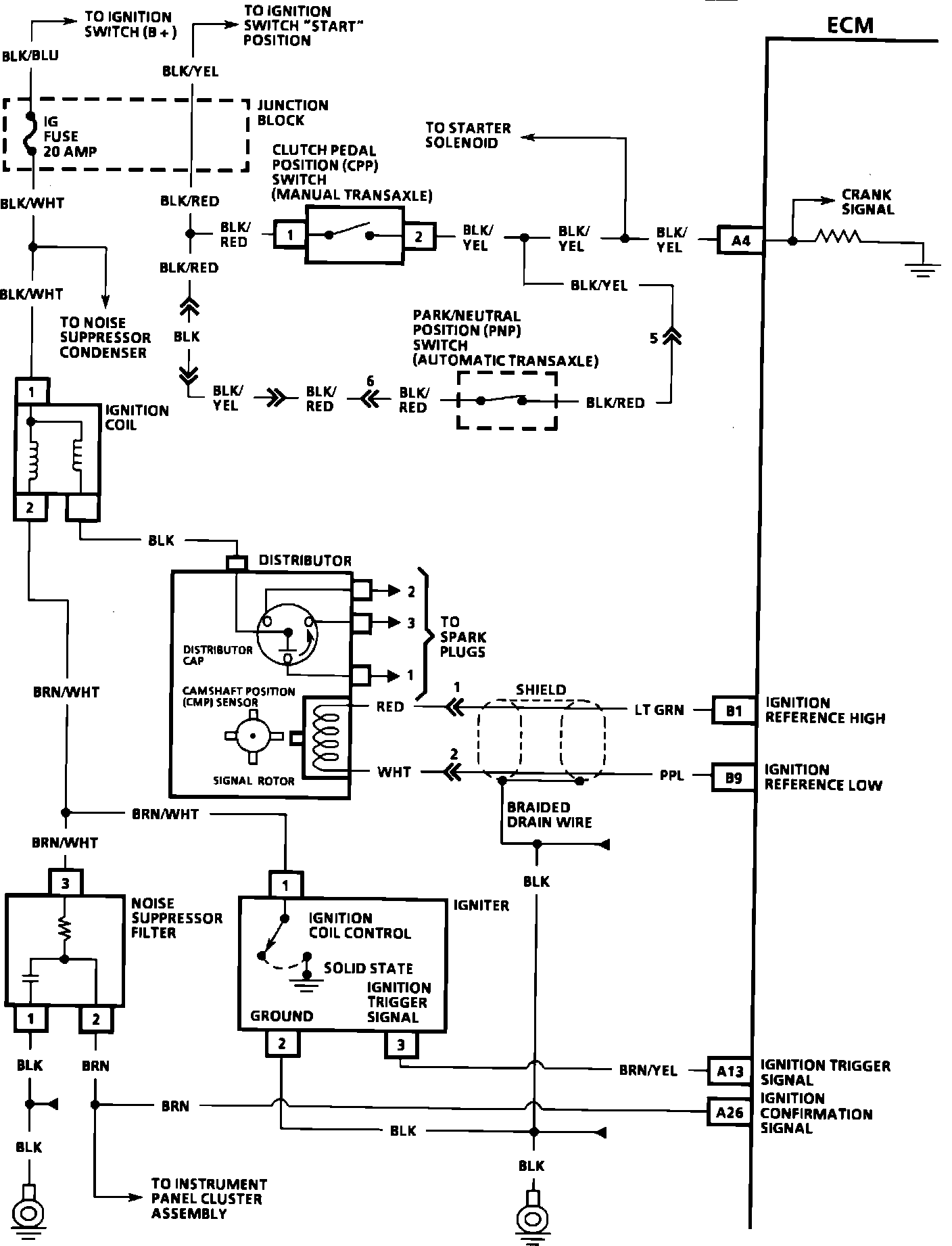

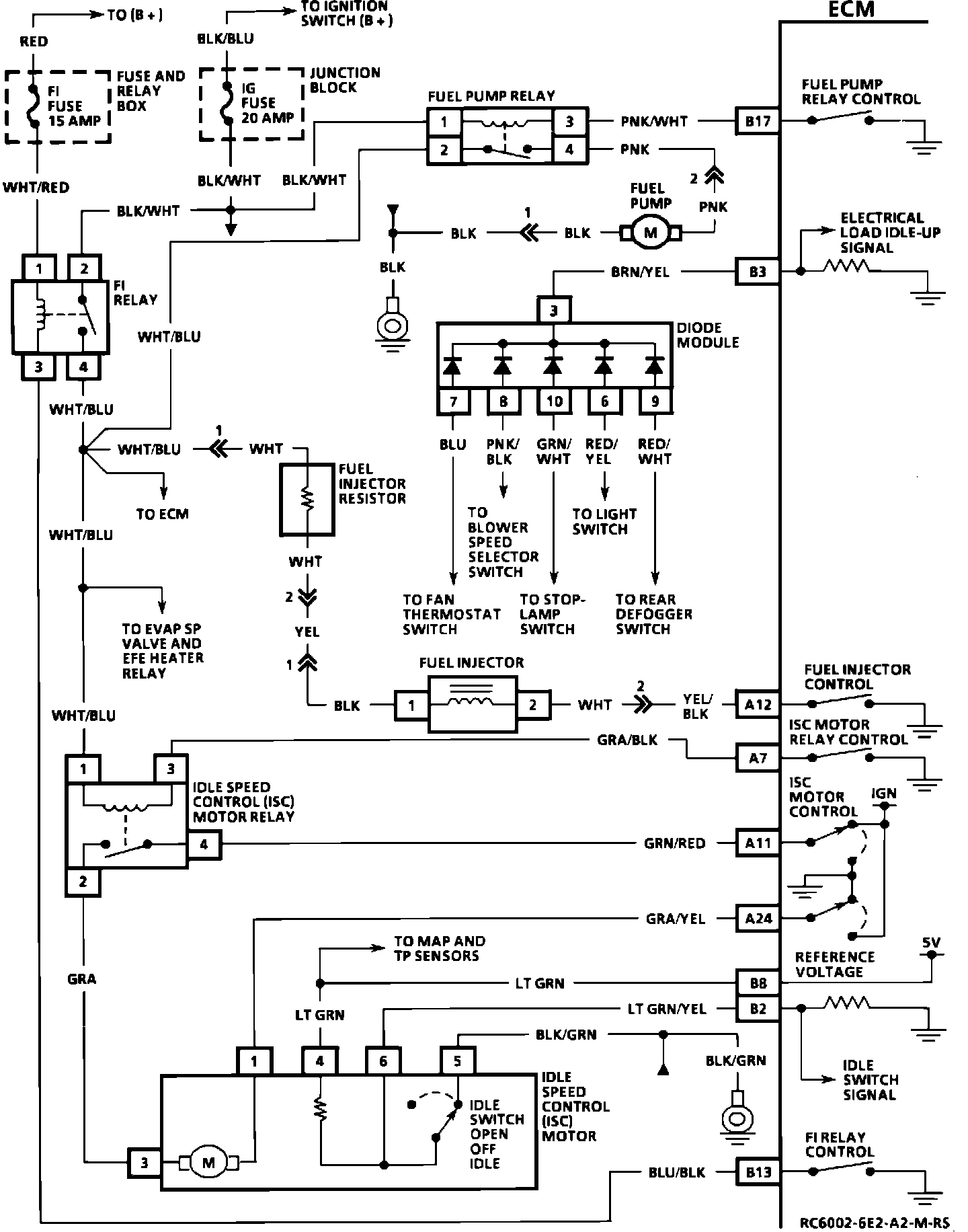

ECM Wiring 94 Metro W/ Upgraded Emissions:

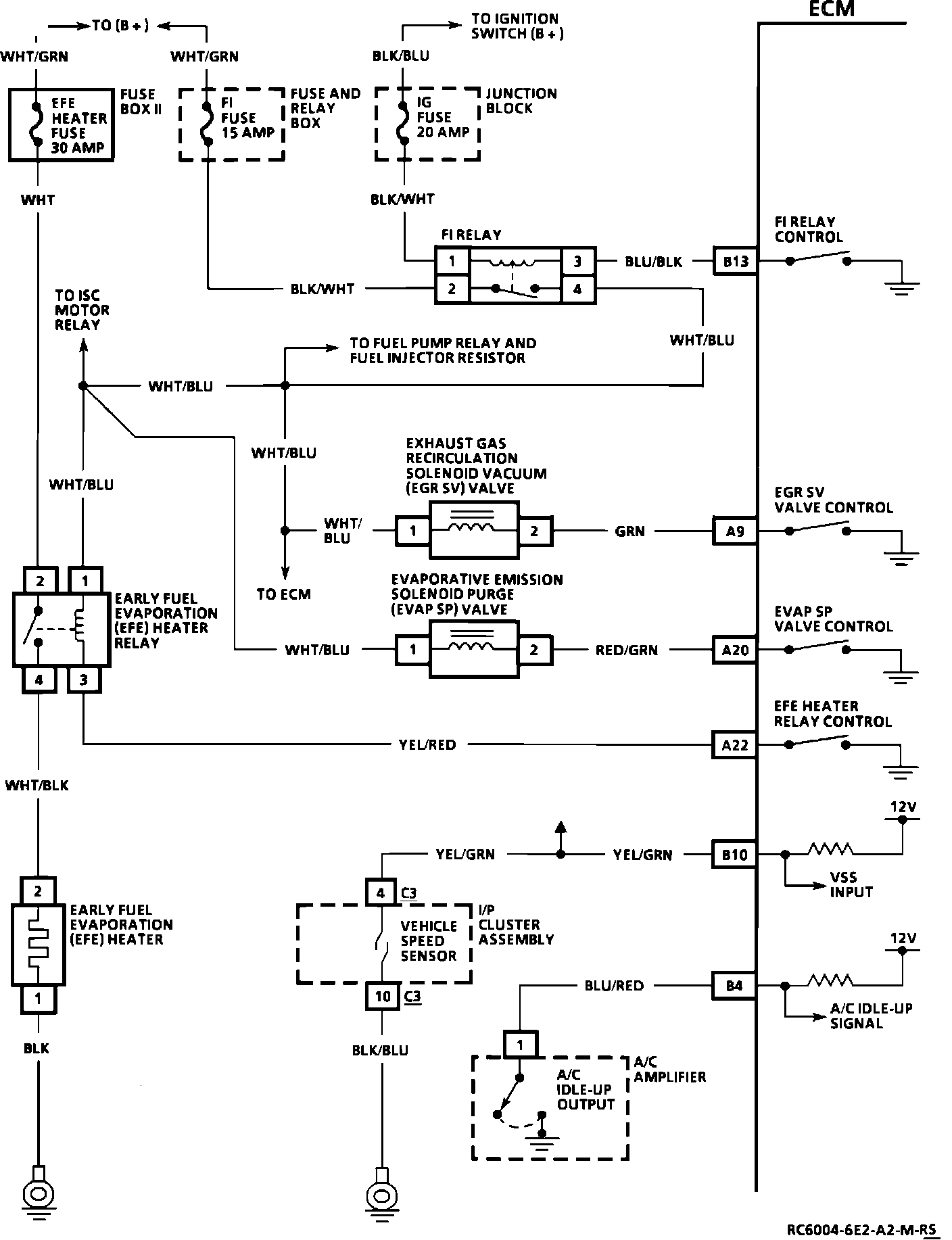

ECM Wiring 94 Metro W/ Upgraded Emissions:

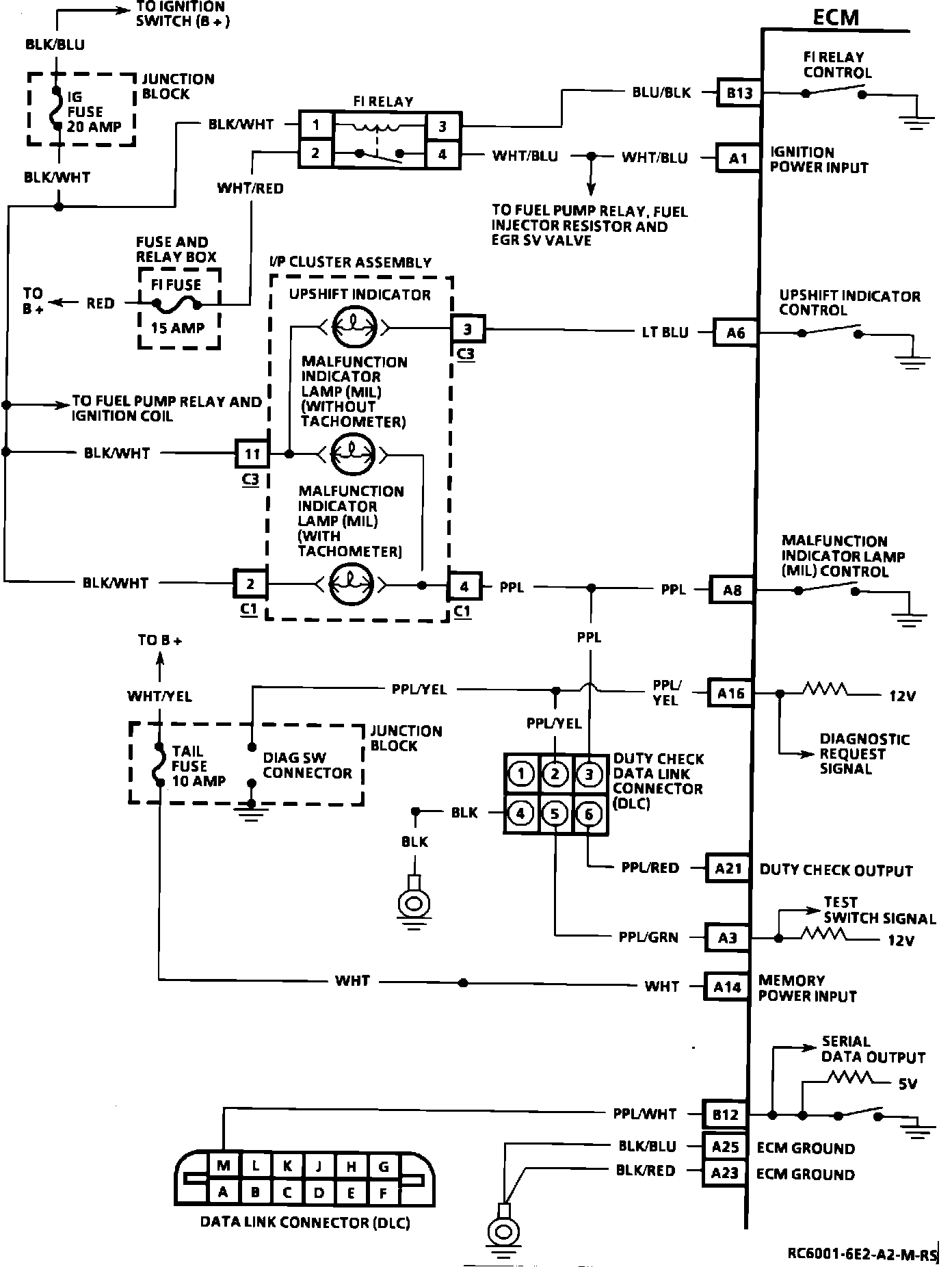

ECM Wiring 94 Metro W/ Upgraded Emissions:



ECM Wiring 94 Metro W/ Upgraded Emissions:



ECM Wiring 94 Metro W/ Upgraded Emissions:

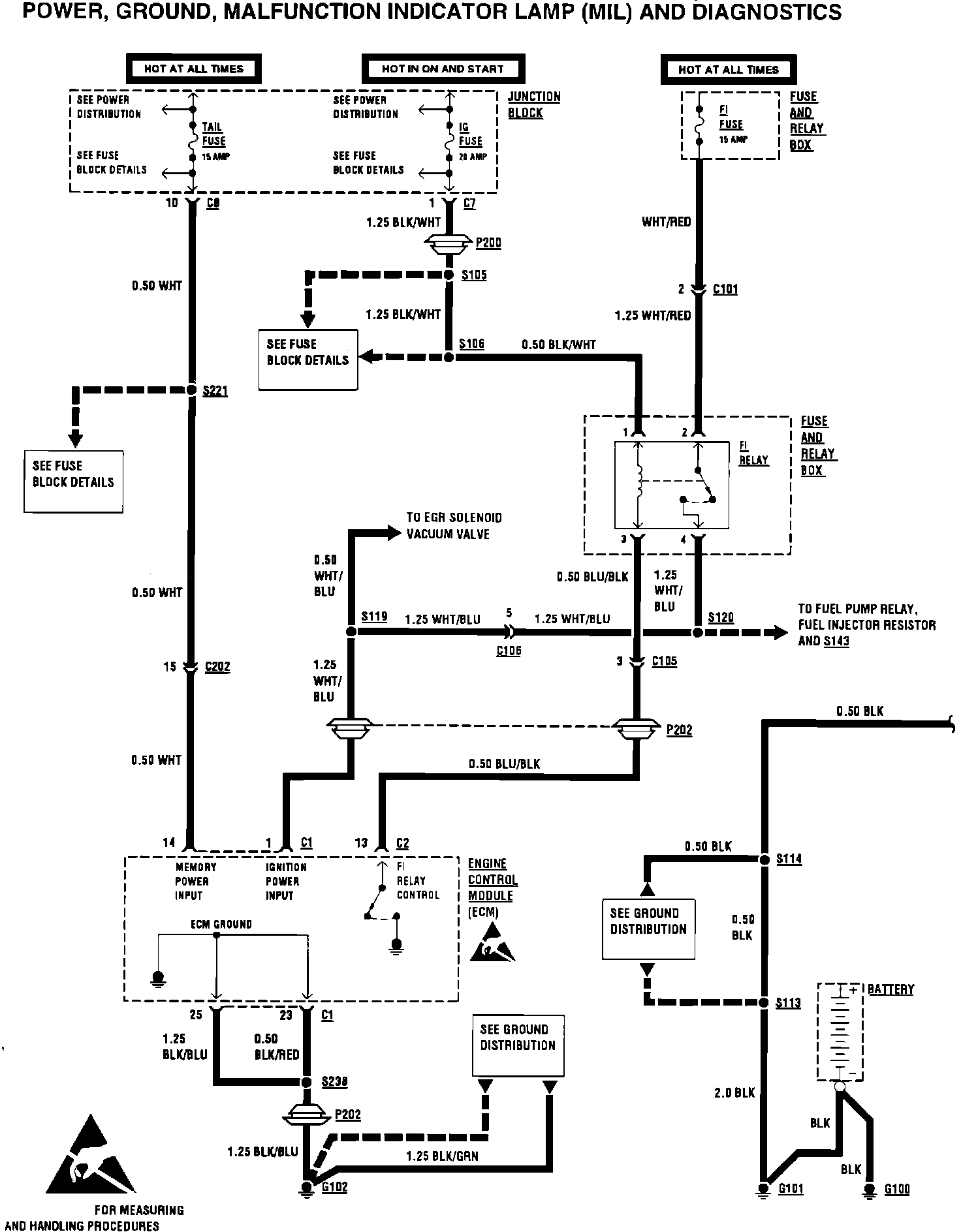

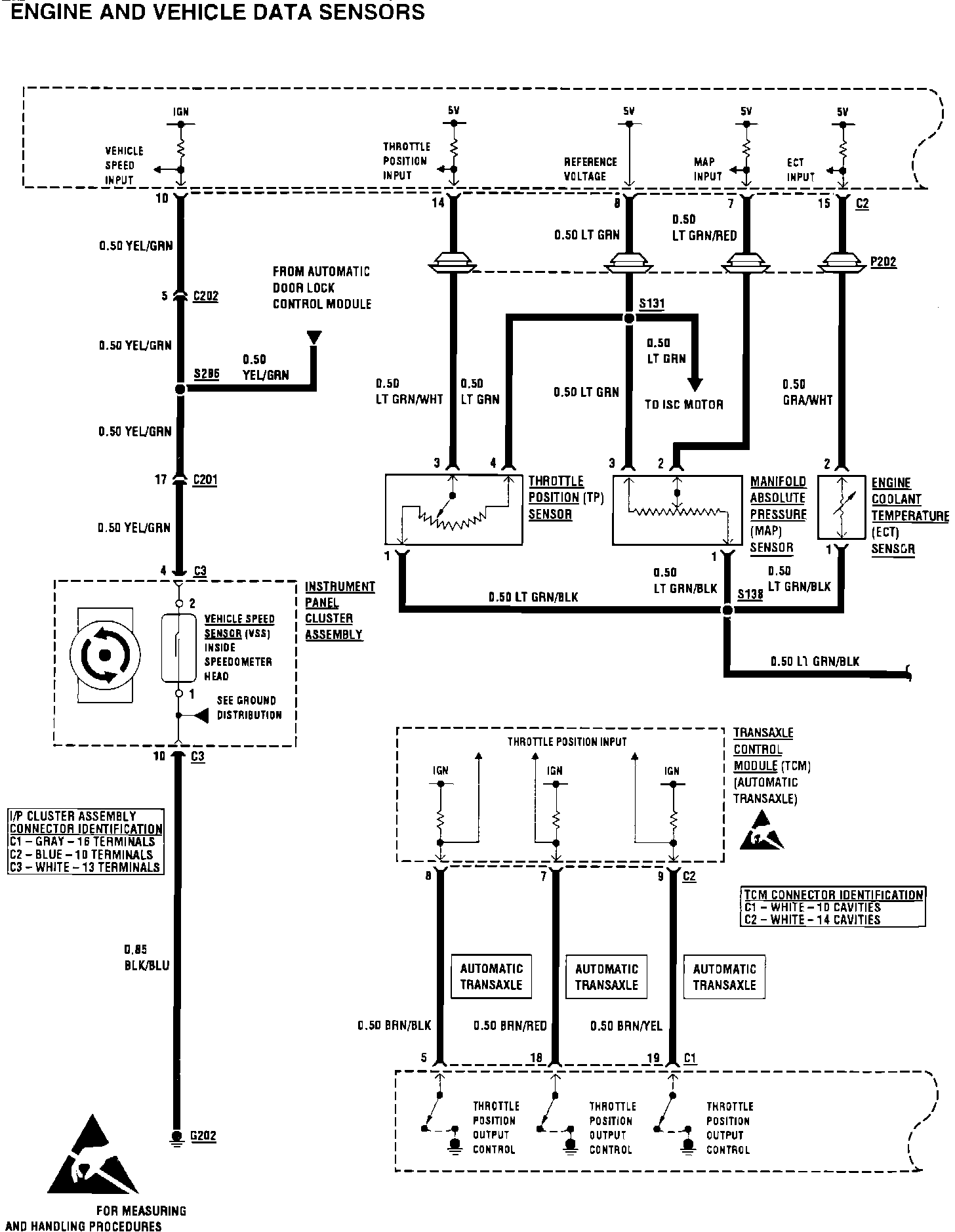

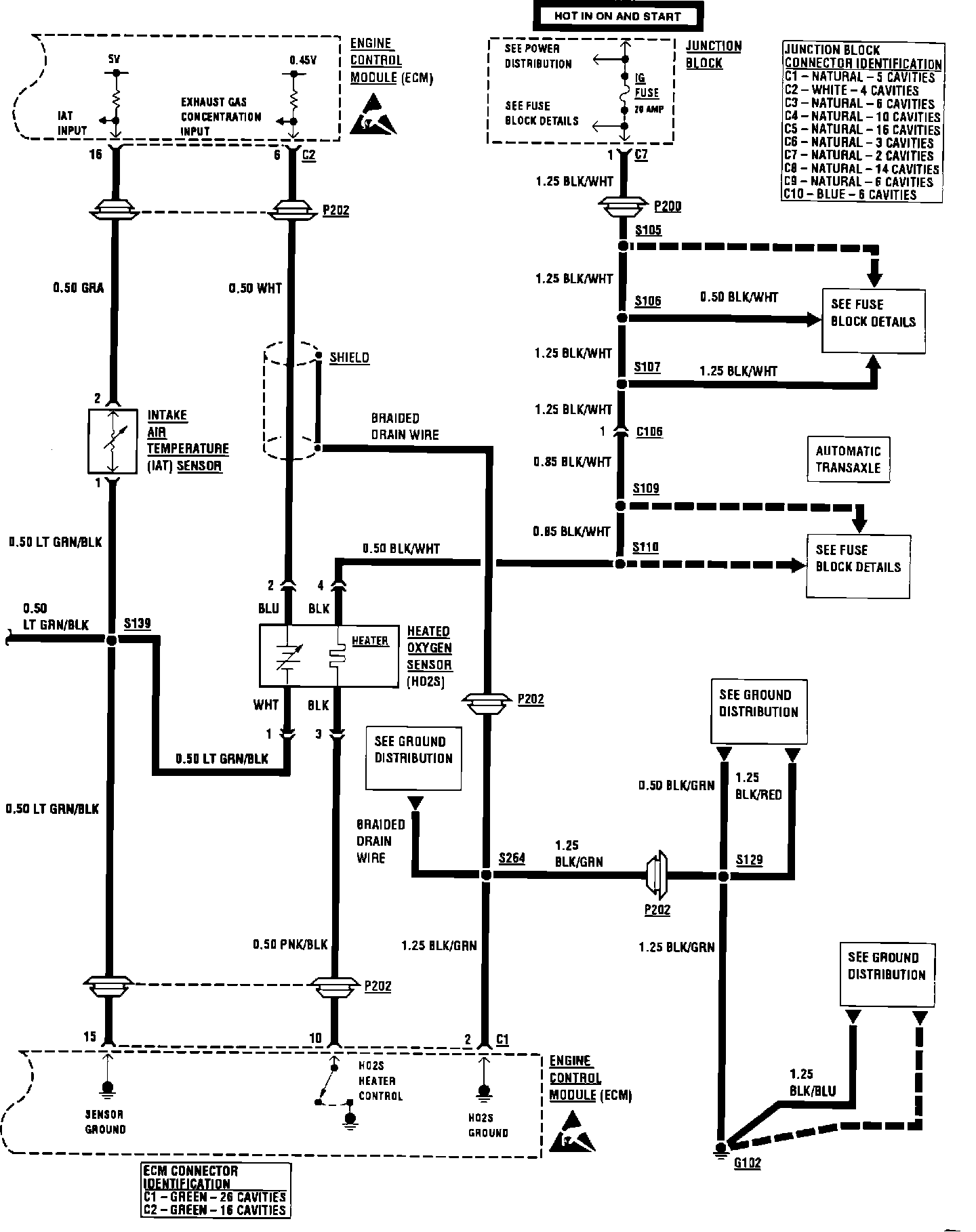

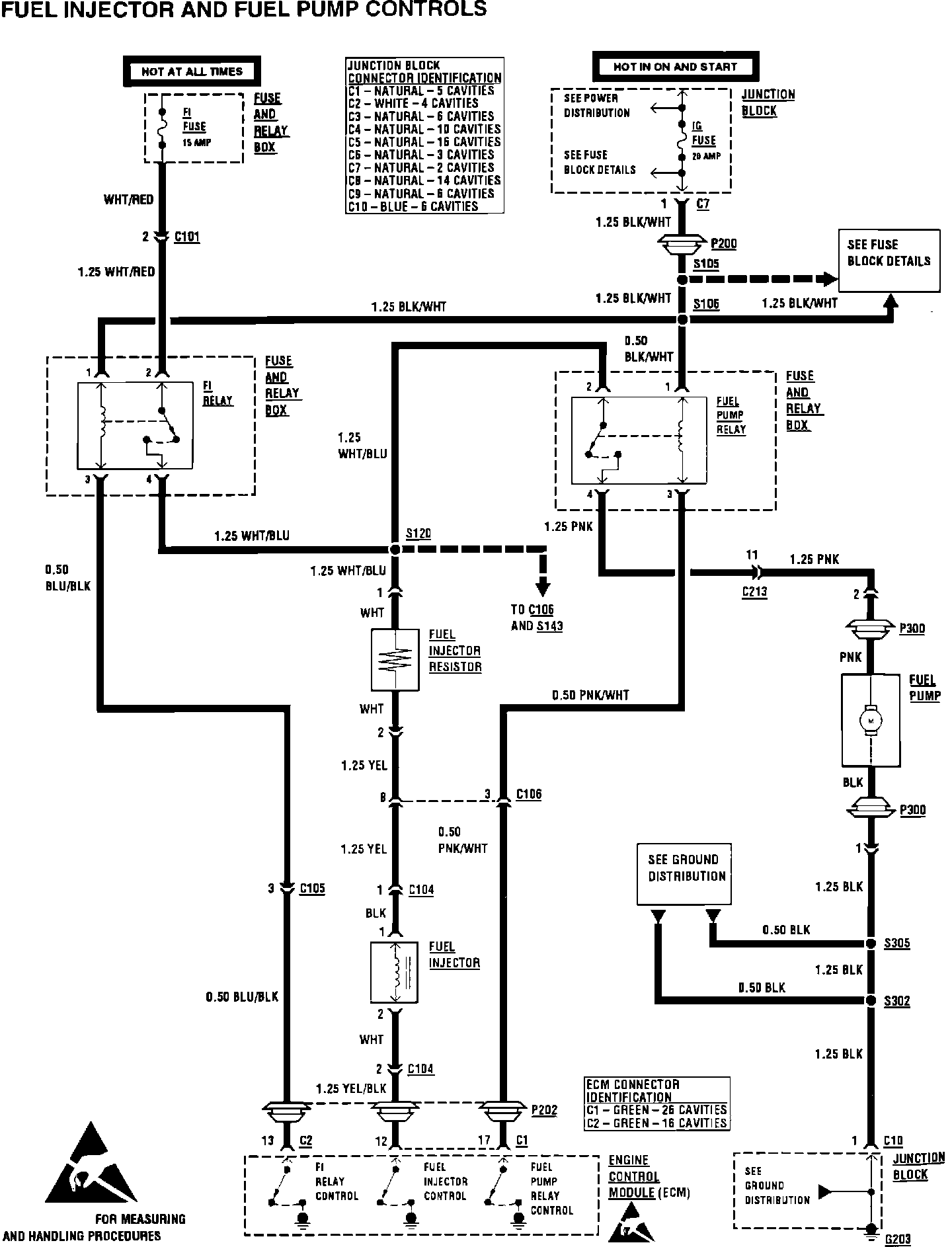

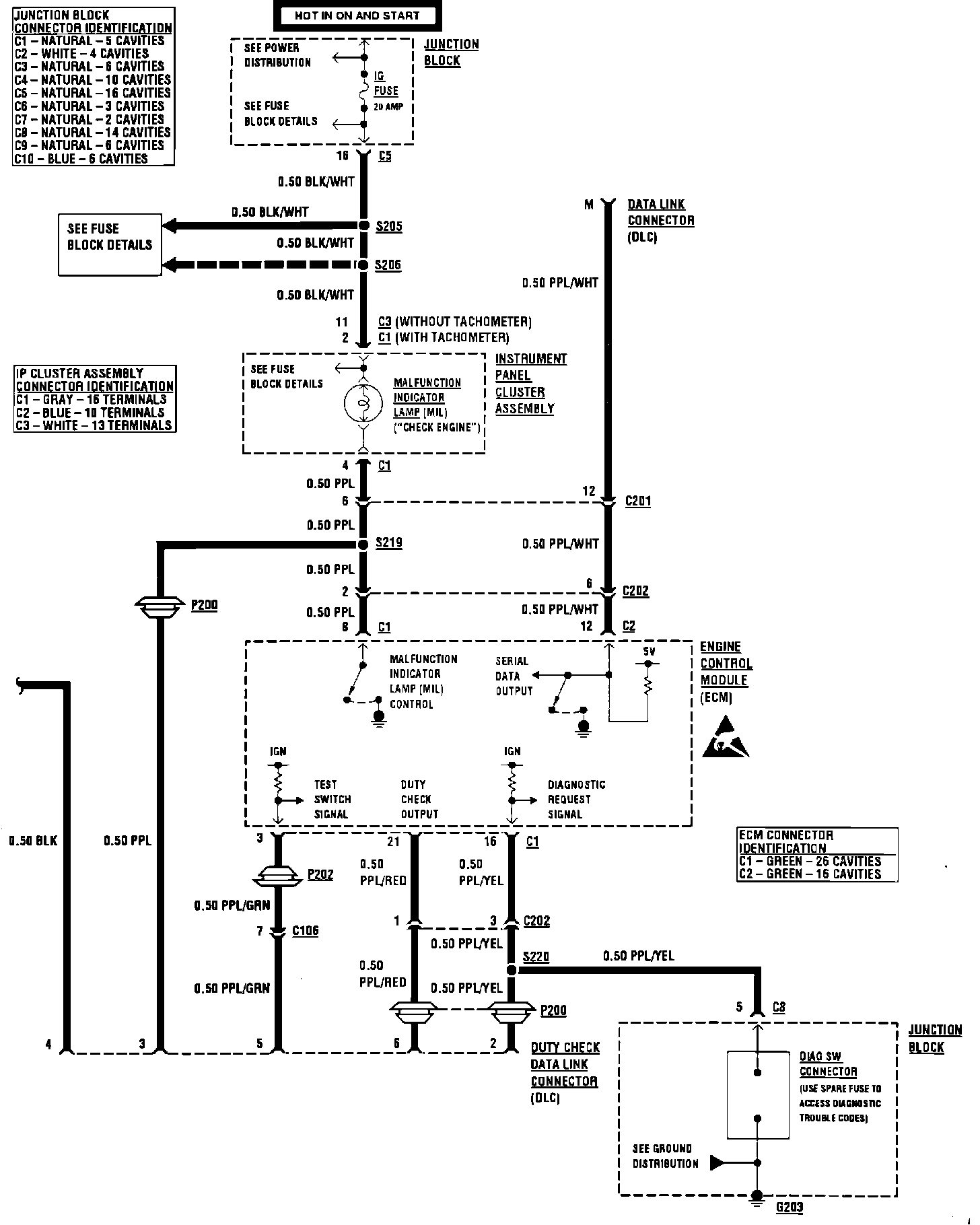

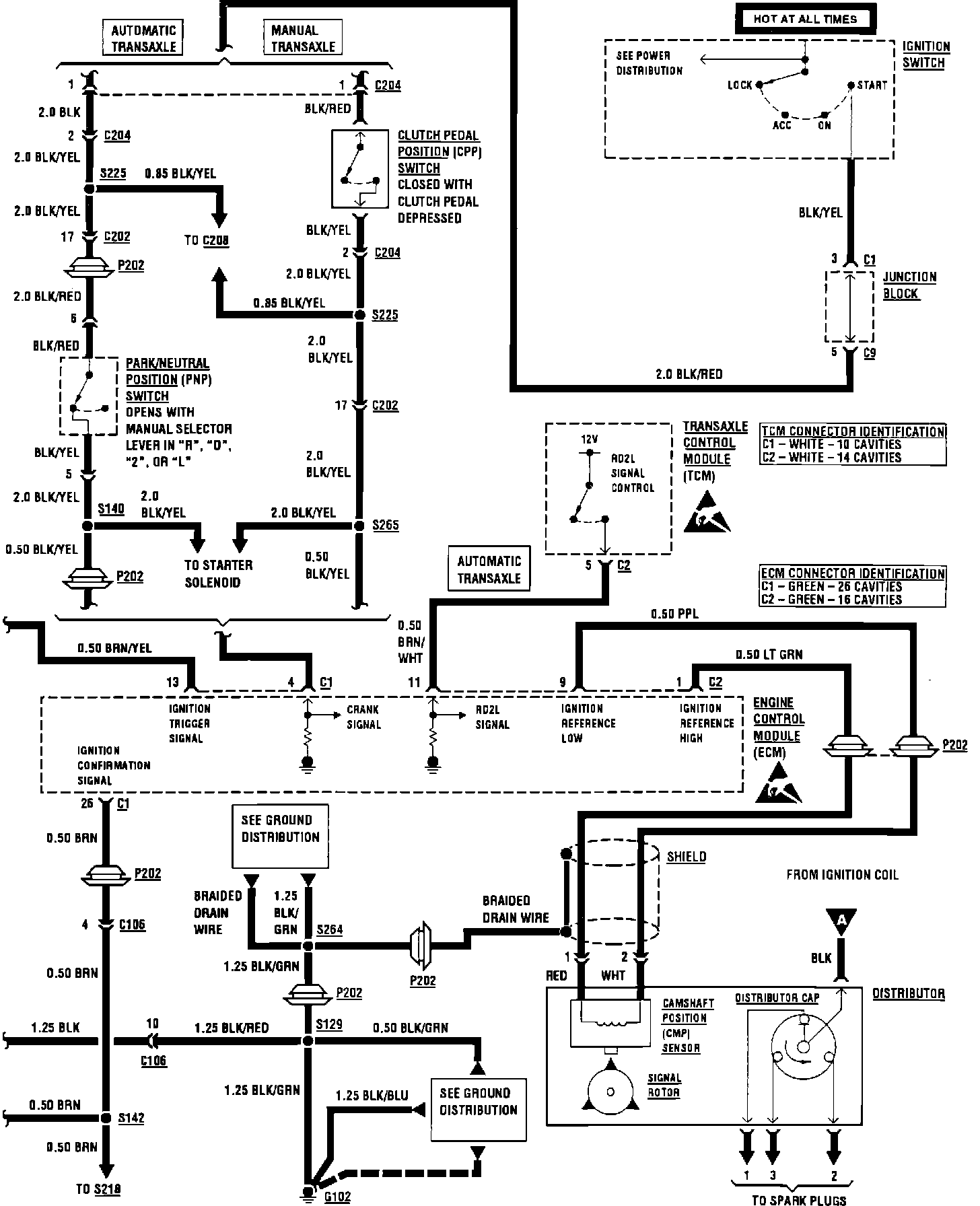

Wiring Diagram 94 Metro W/ Upgraded Emissions:

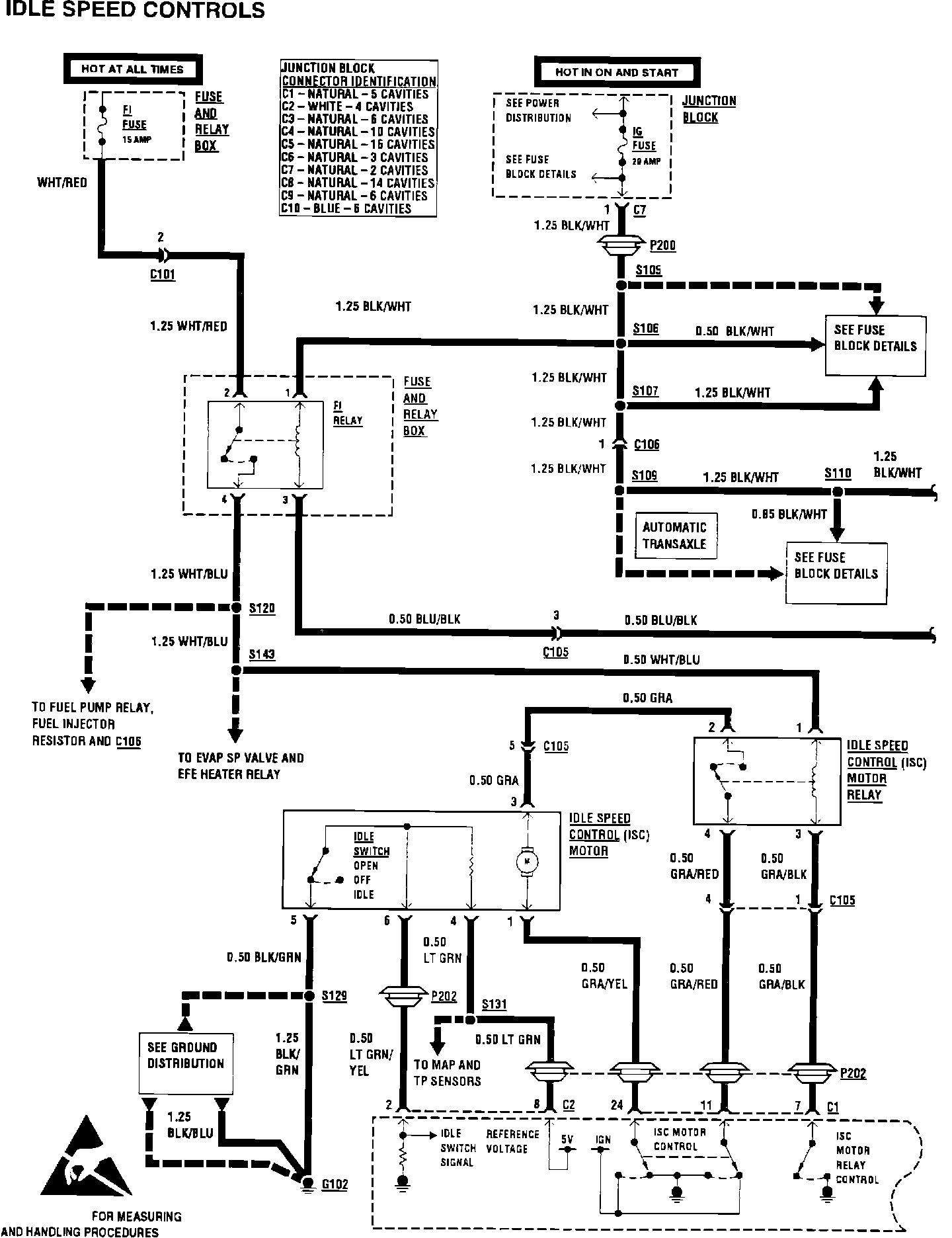

Wiring Diagram 94 Metro W/ Upgraded Emissions:

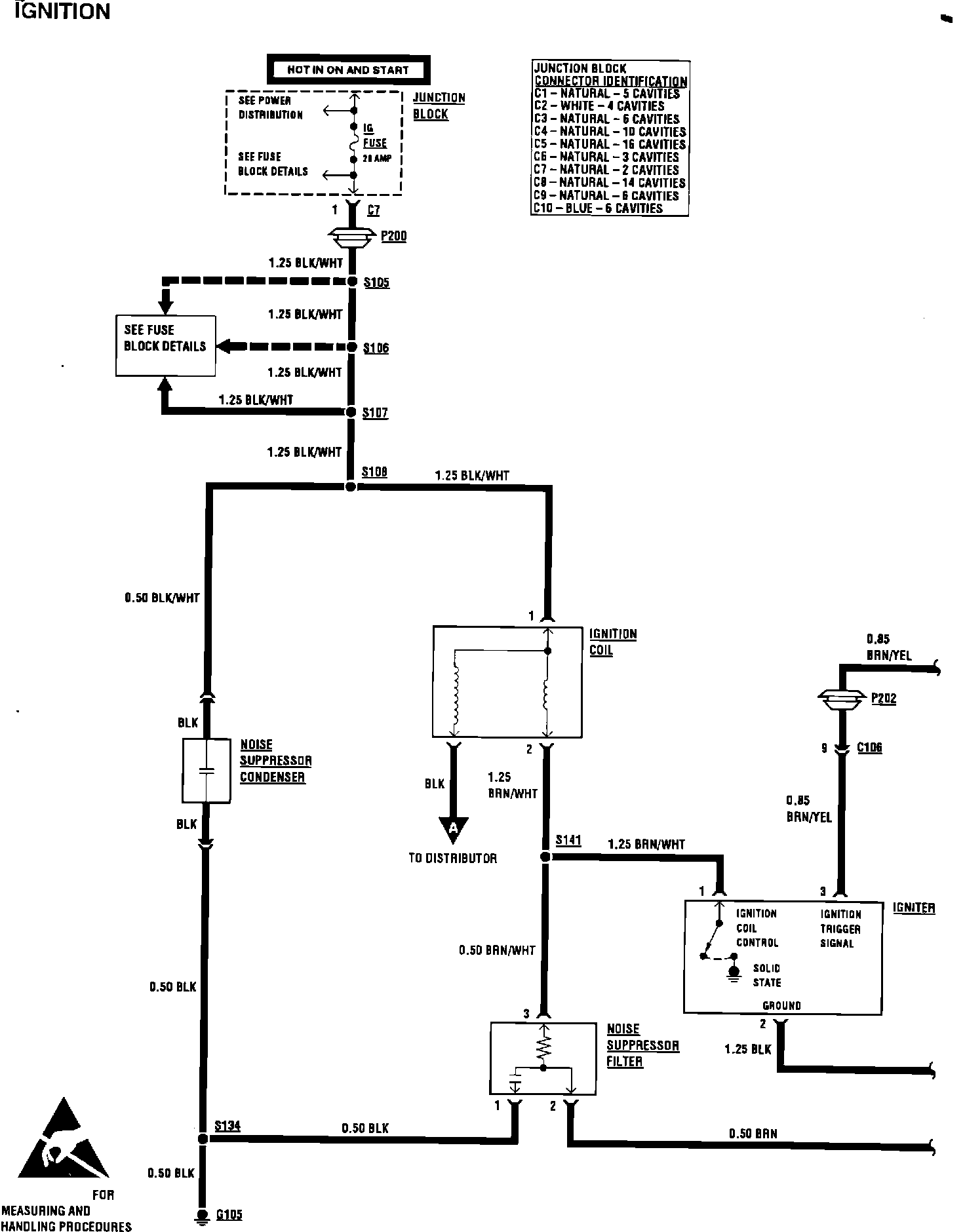

Wiring Diagram 94 Metro W/ Upgraded Emissions:

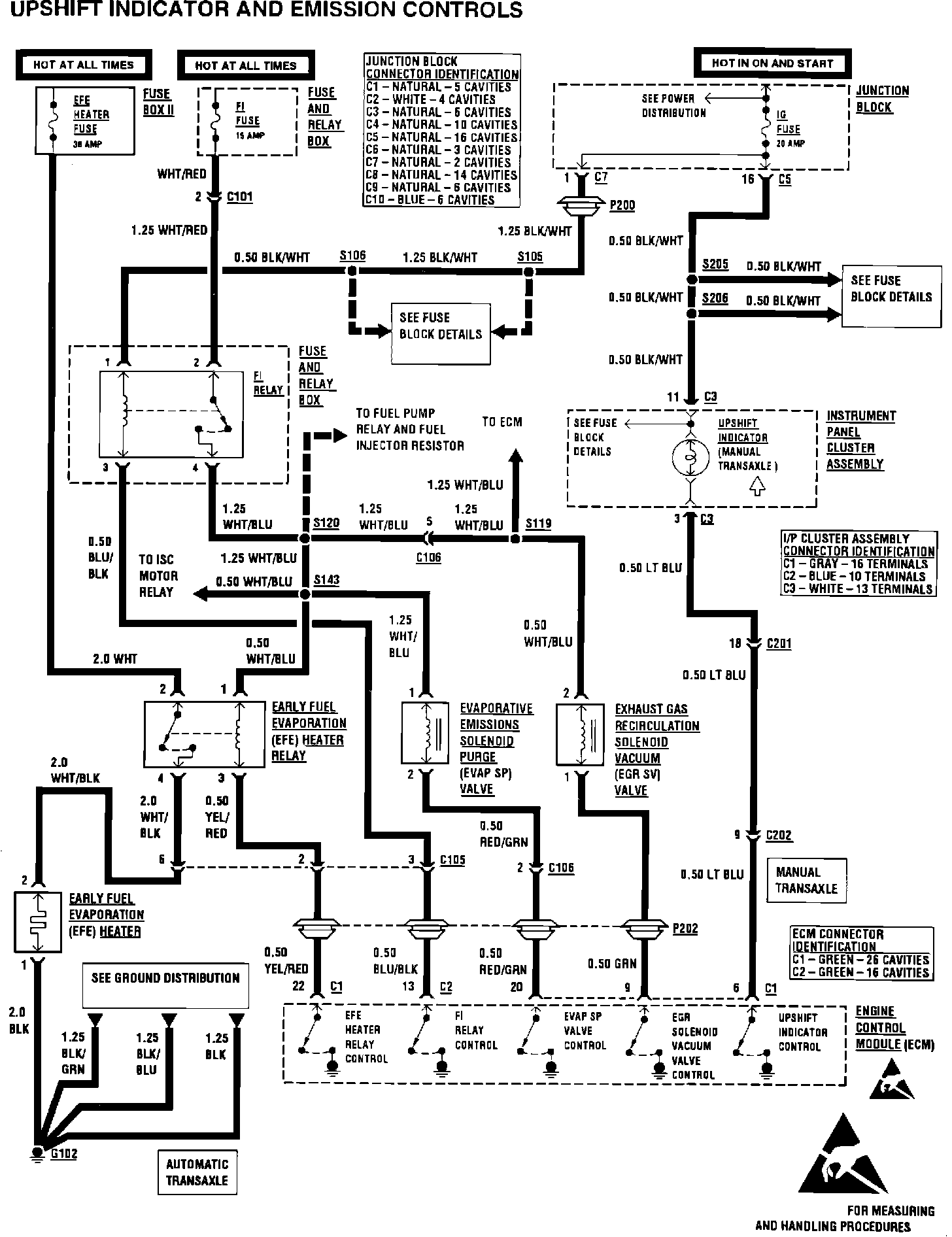

Wiring Diagram 94 Metro W/ Upgraded Emissions:

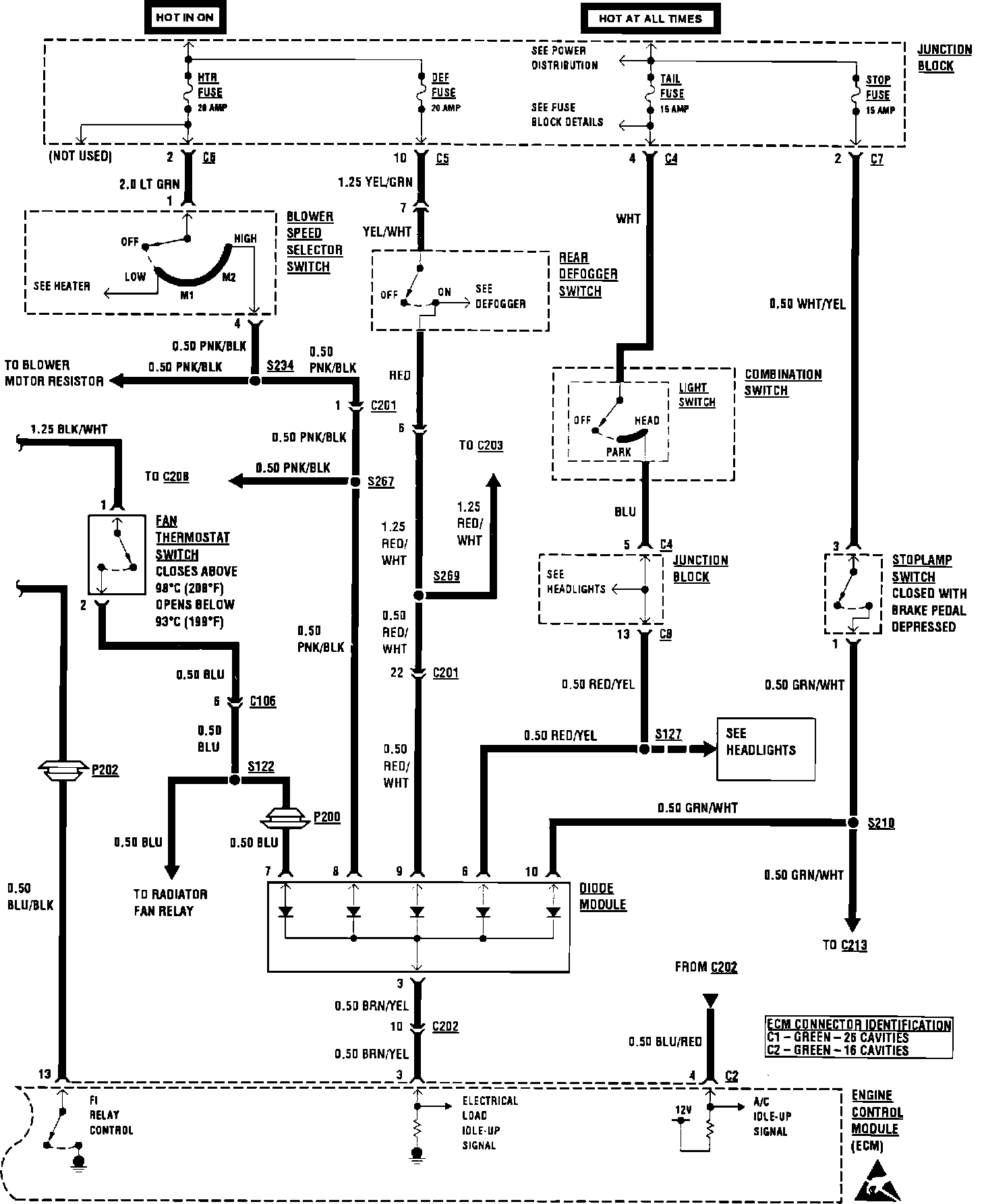

Wiring Diagram 94 Metro W/ Upgraded Emissions:



Wiring Diagram 94 Metro W/ Upgraded Emissions:



Wiring Diagram 94 Metro W/ Upgraded Emissions:



Wiring Diagram 94 Metro W/ Upgraded Emissions:



Wiring Diagram 94 Metro W/ Upgraded Emissions:



Wiring Diagram 94 Metro W/ Upgraded Emissions:
