Home >> Geo >> 1994 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Diagrams >> Components >> Switches >> Dual Pressure Switch

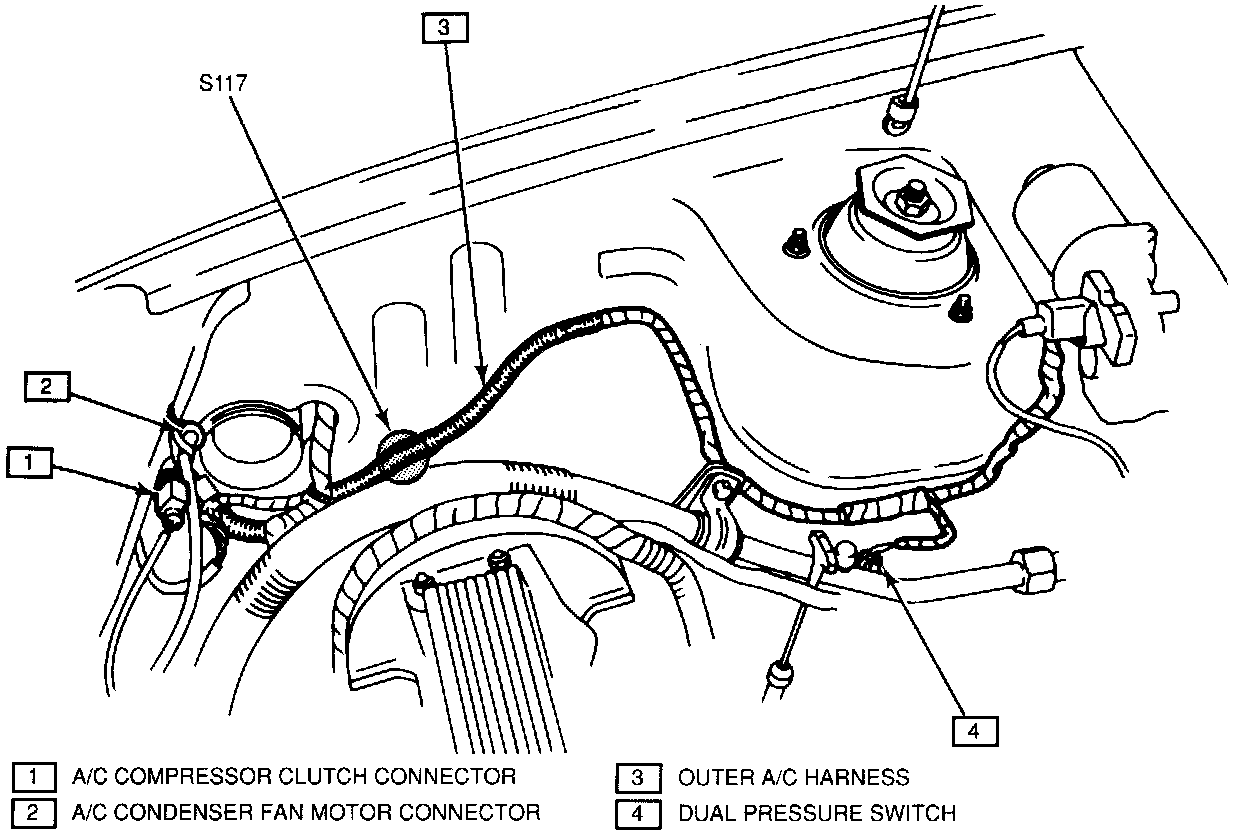

Dual Pressure Switch

RH Front Inner Fender:
