Electronic/Powertrain Control Module (ECM/PCM)

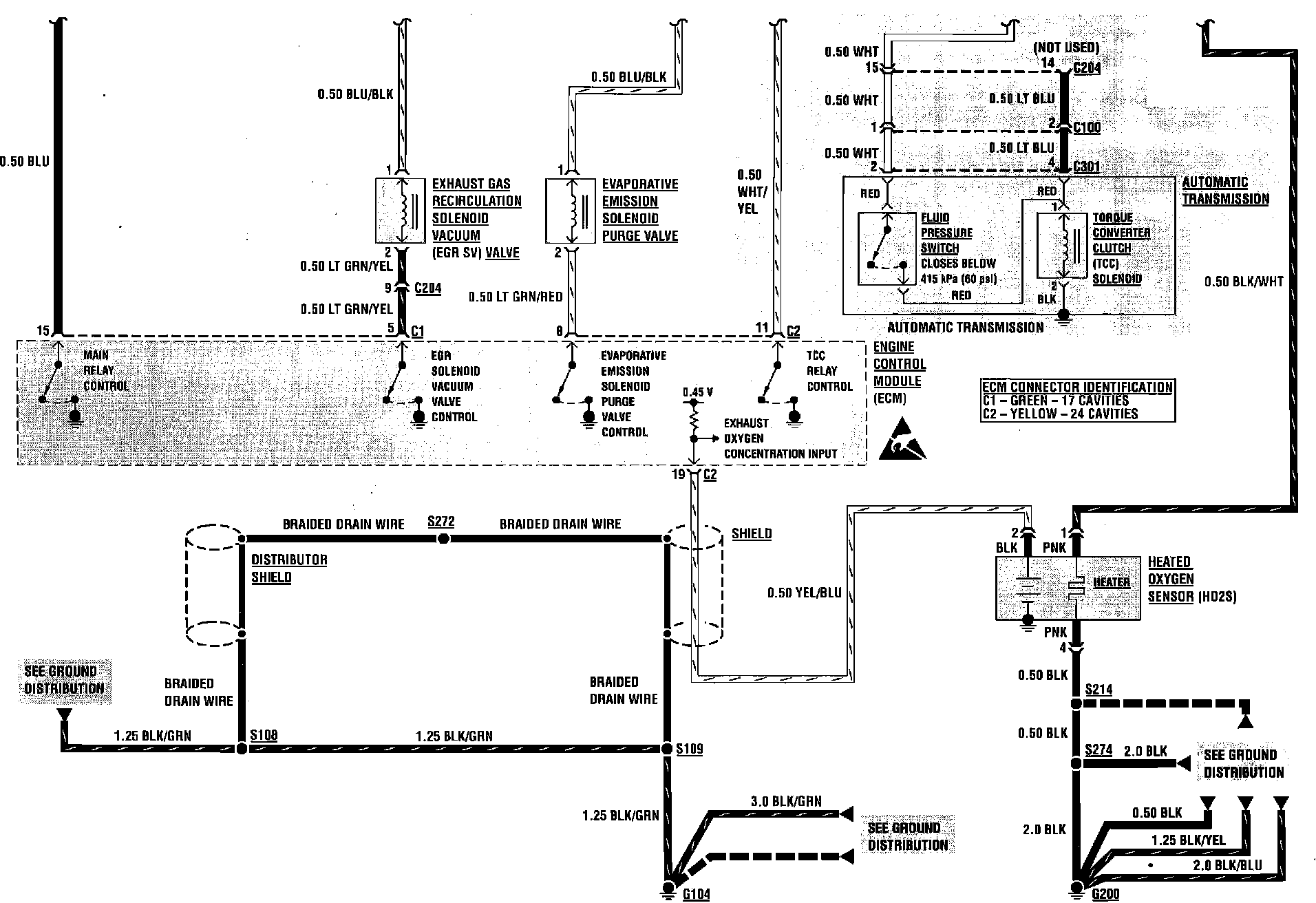

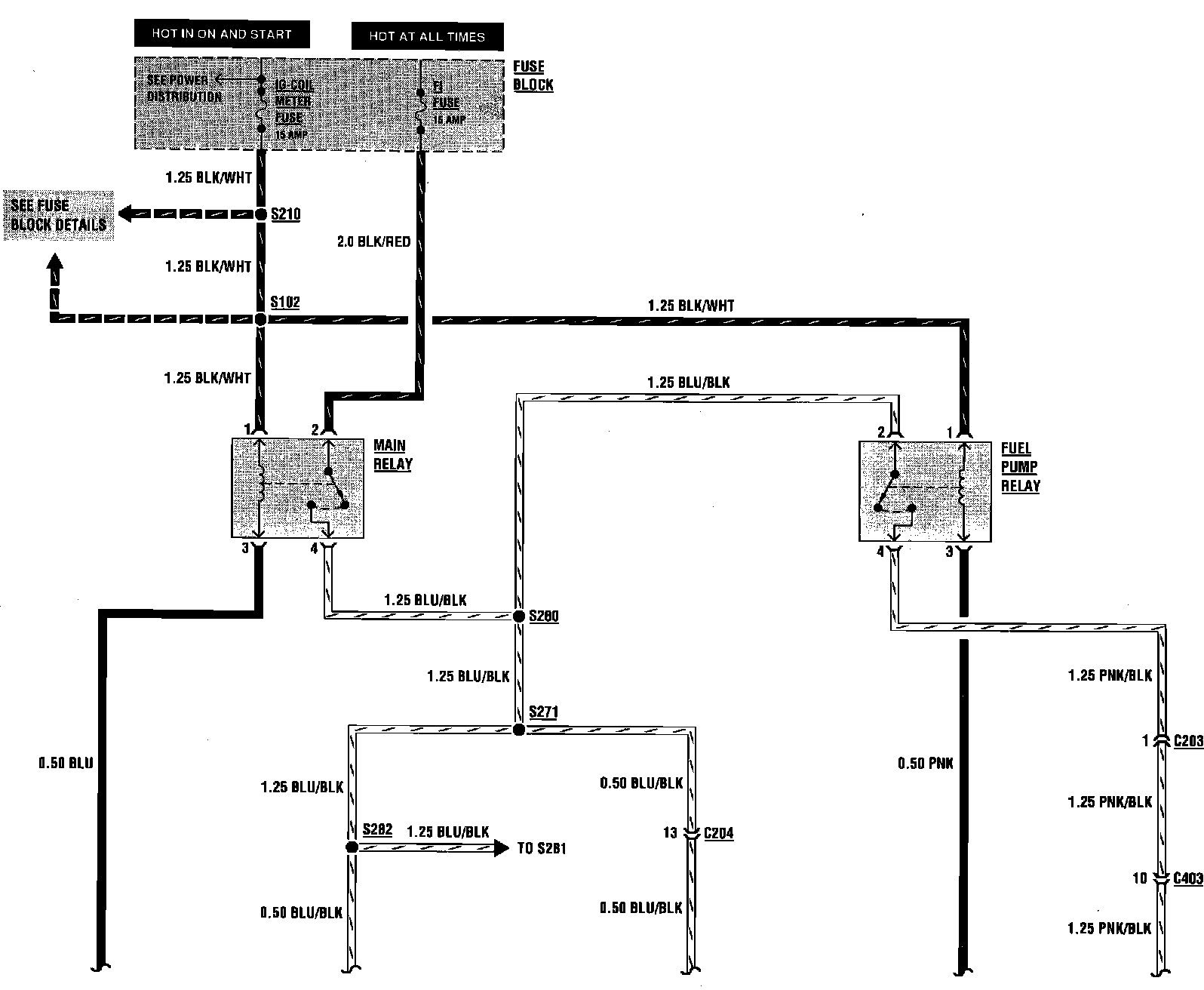

Engine Controls:

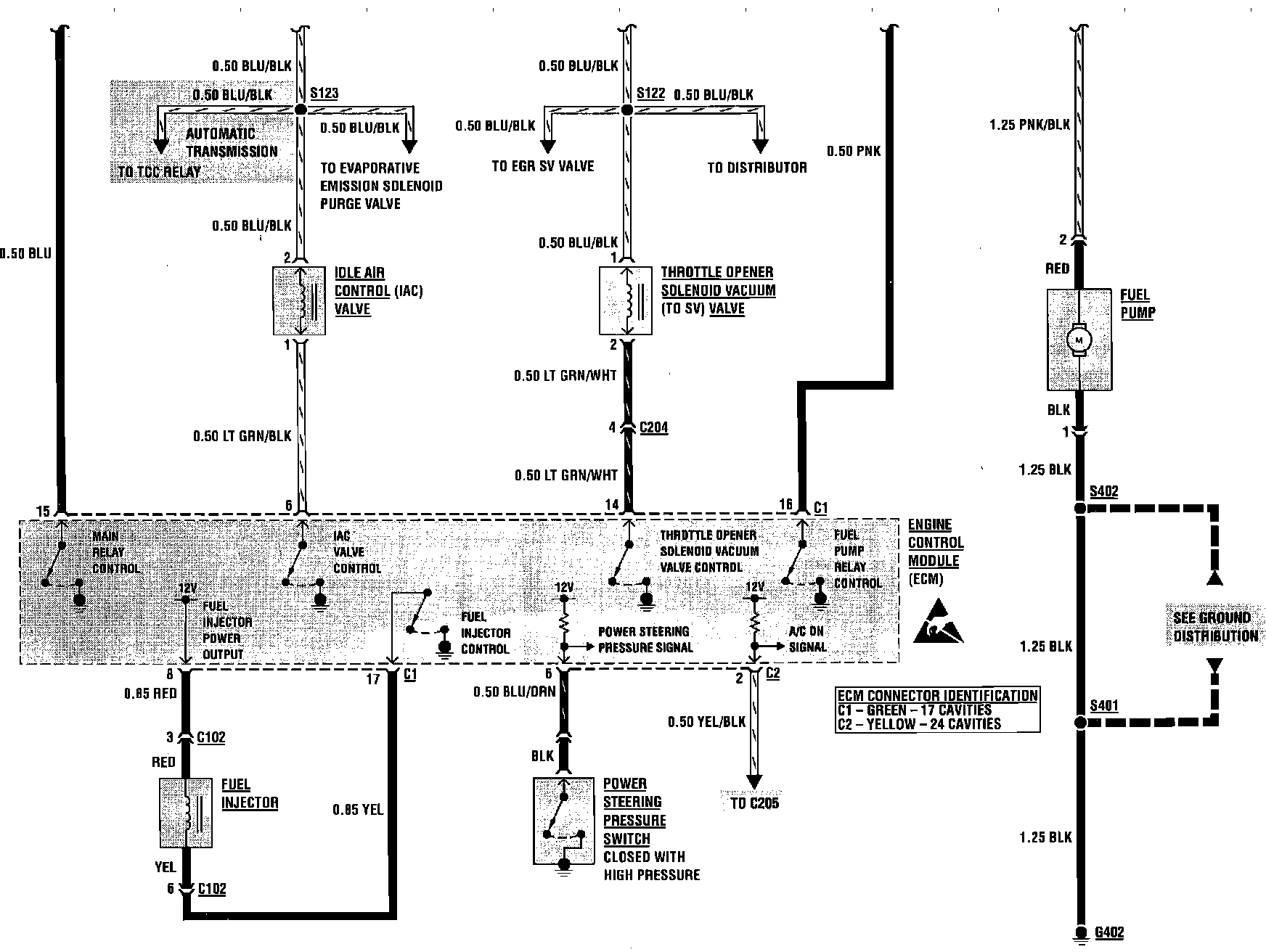

Engine Controls:

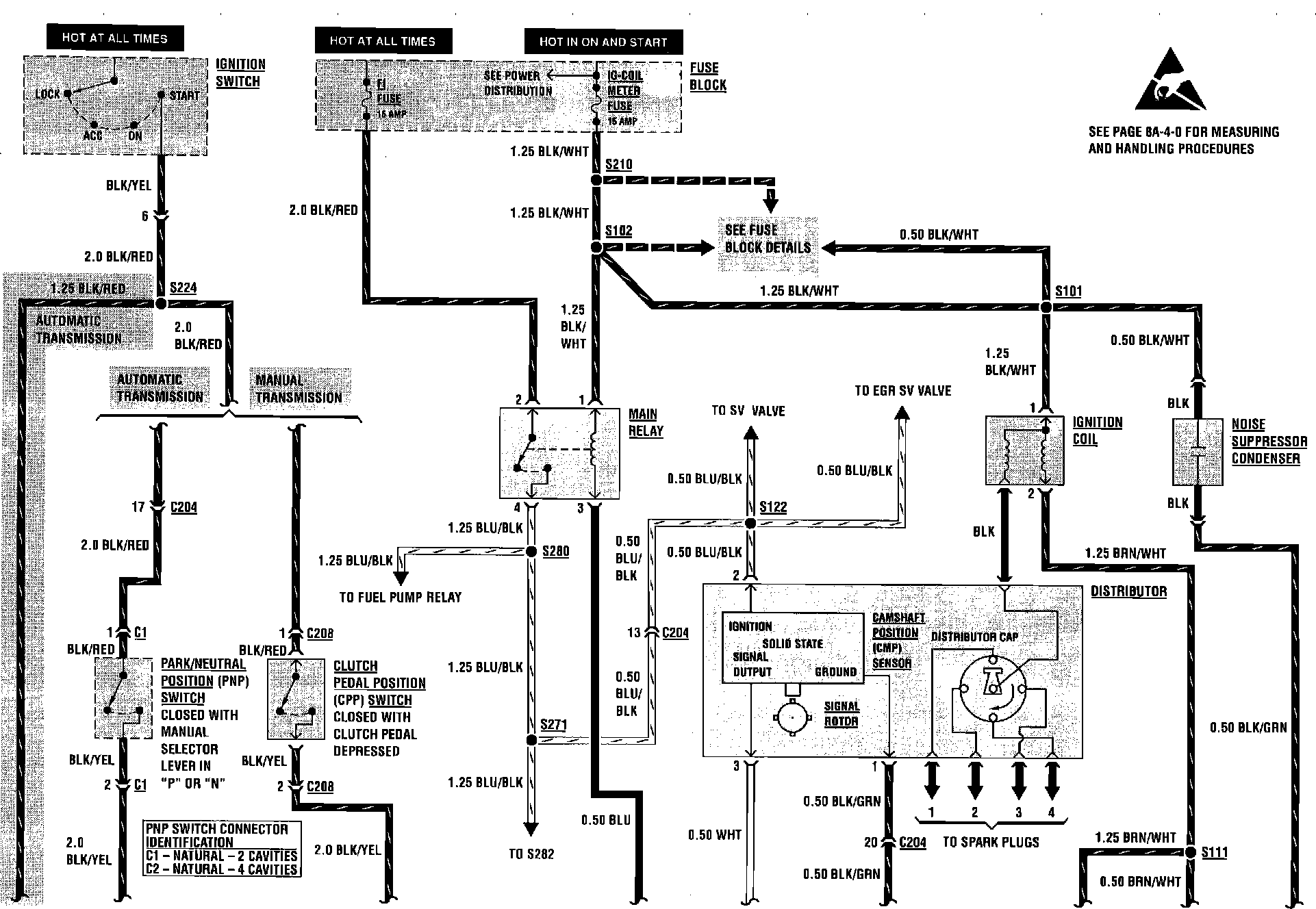

Engine Controls:

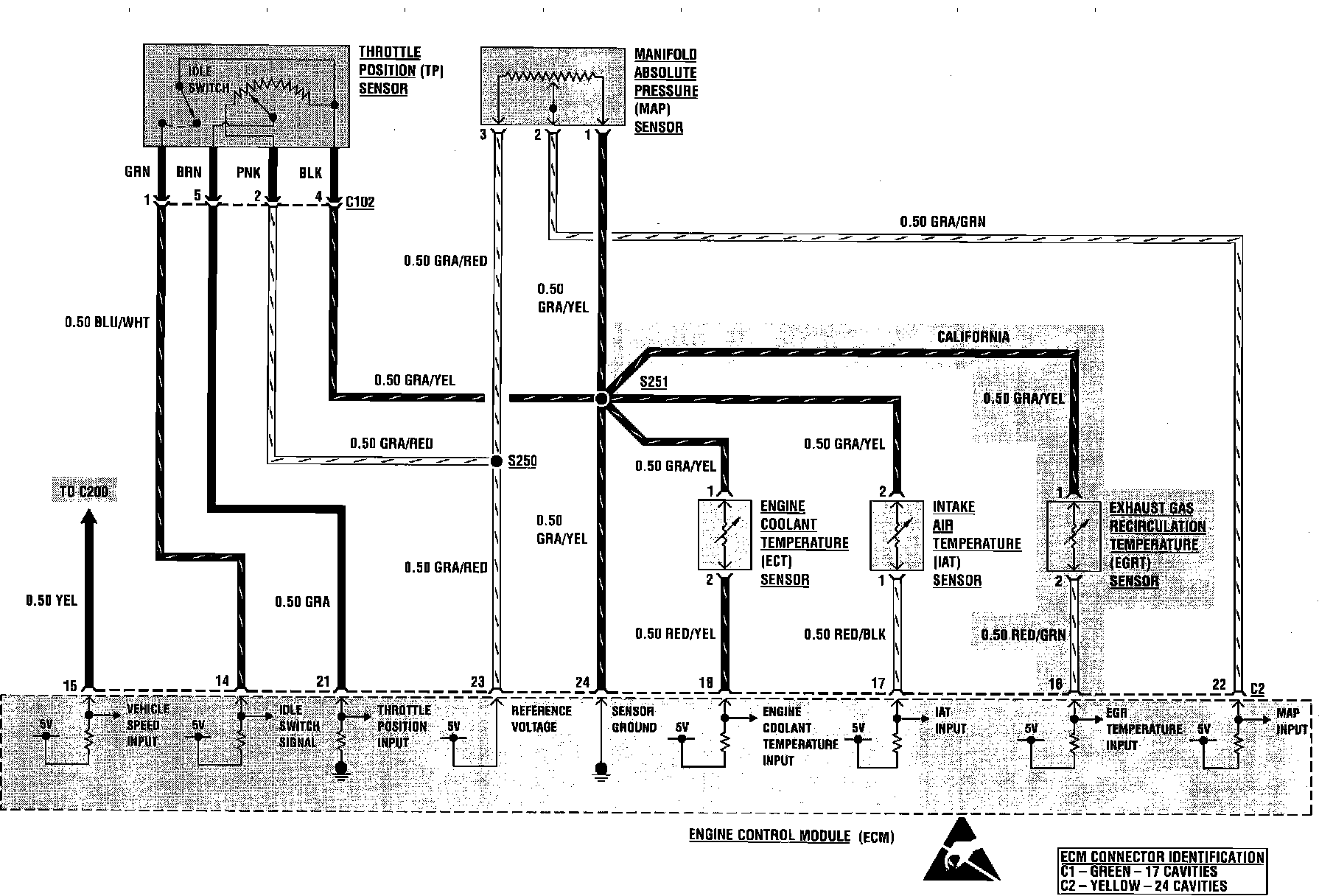

Engine Controls:

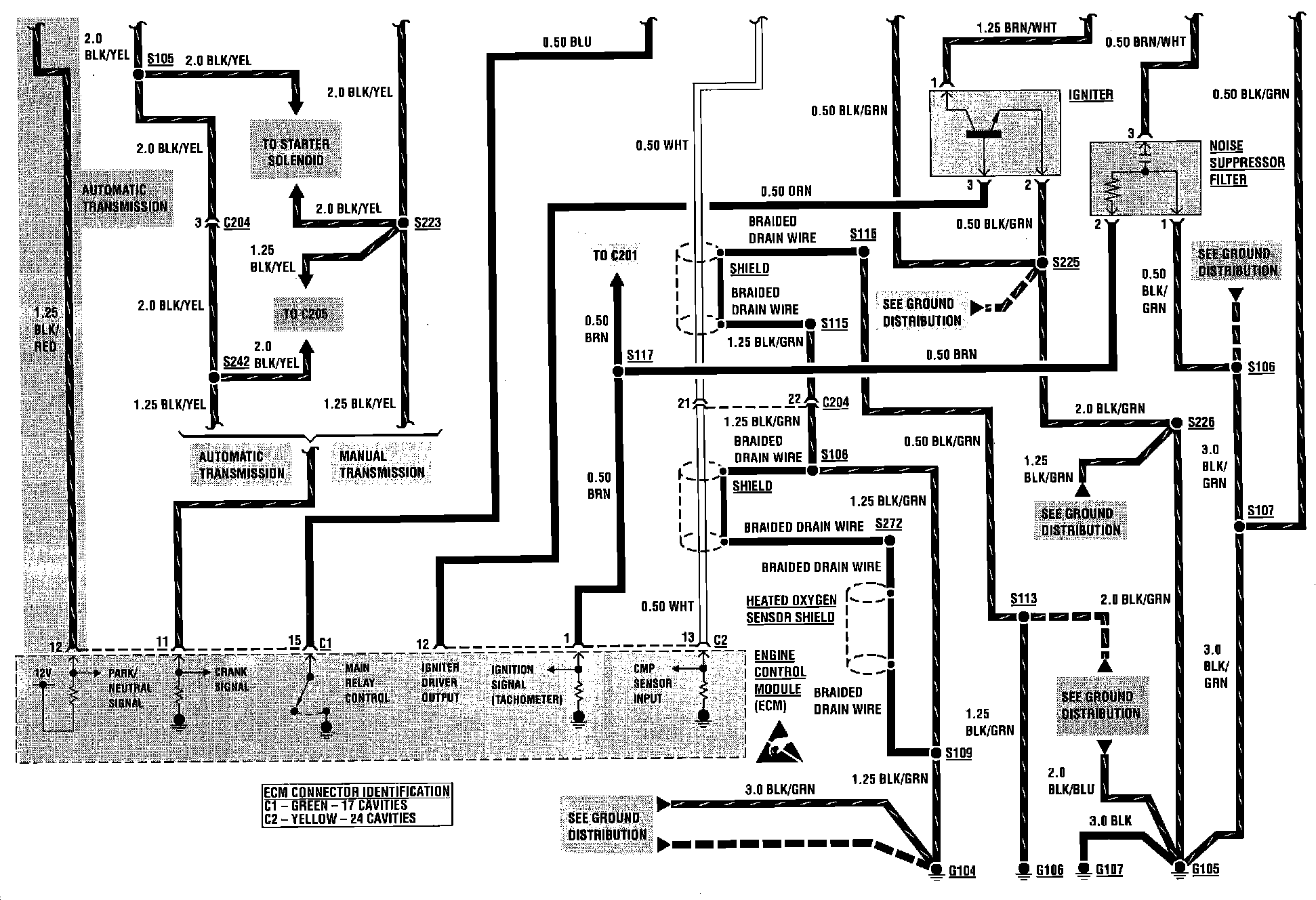

Engine Controls:

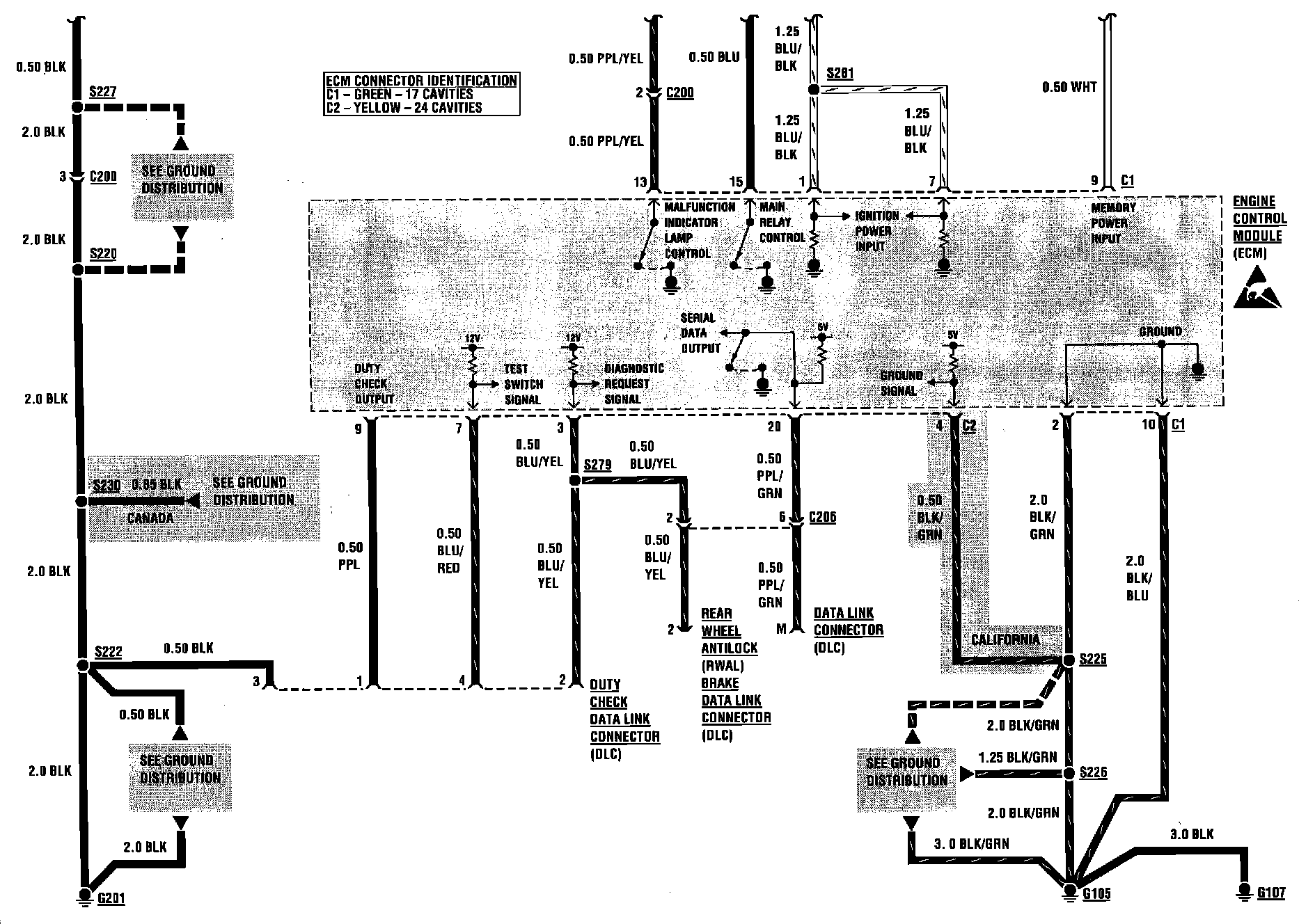

Engine Controls:

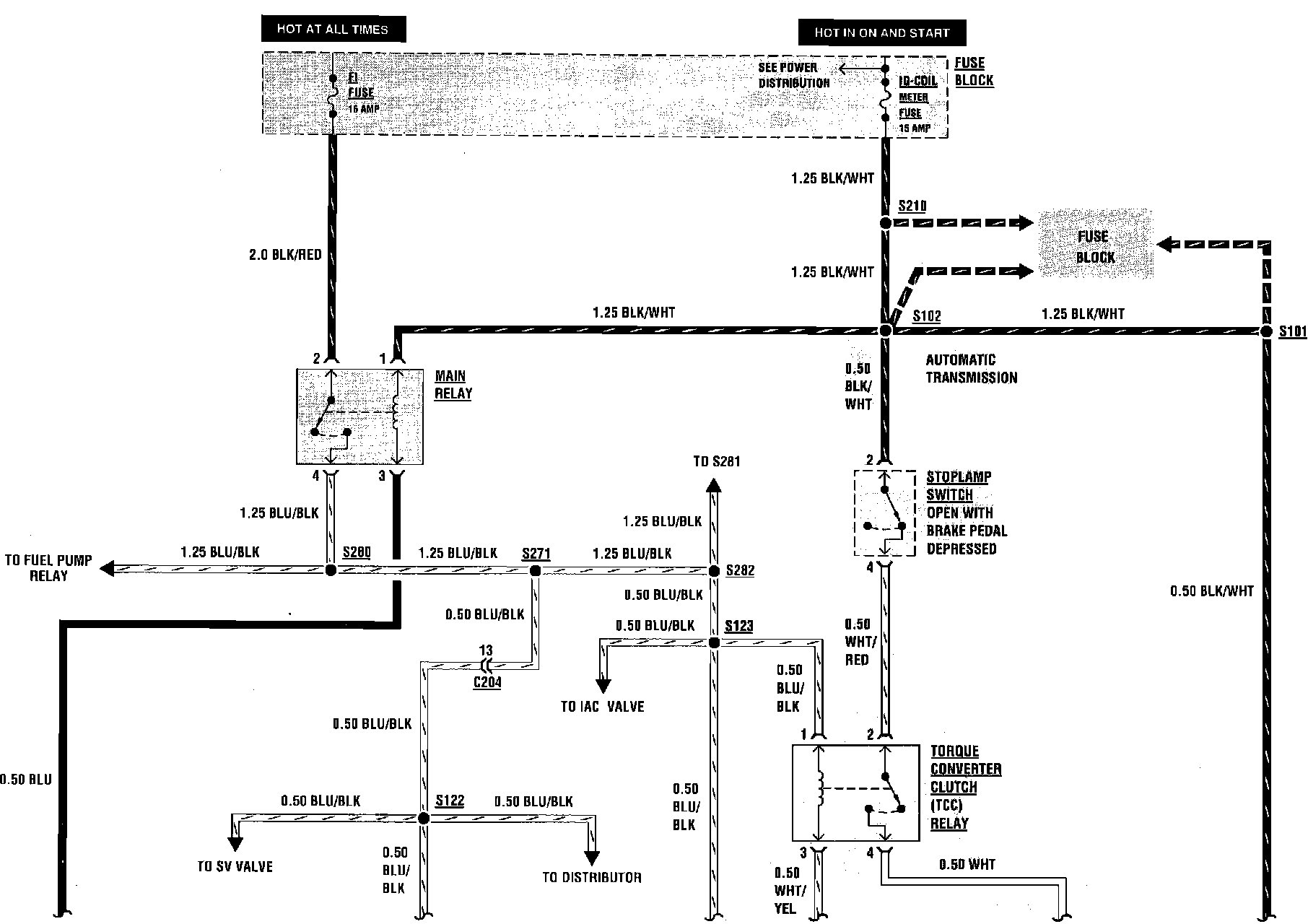

Engine Controls:

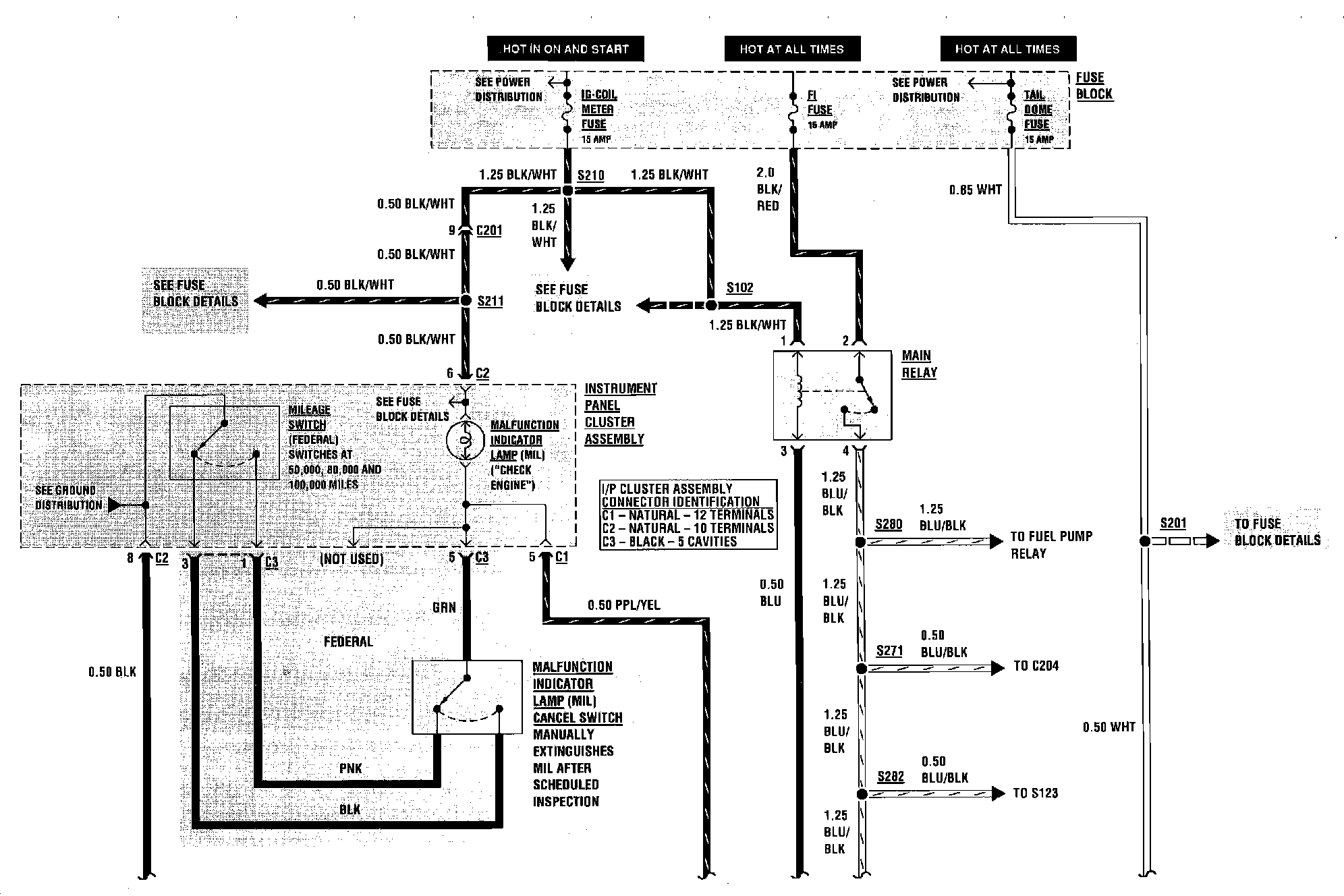

Engine Controls:

Engine Controls:
