Control Module: Diagrams

Automatic Transaxle Control Module:

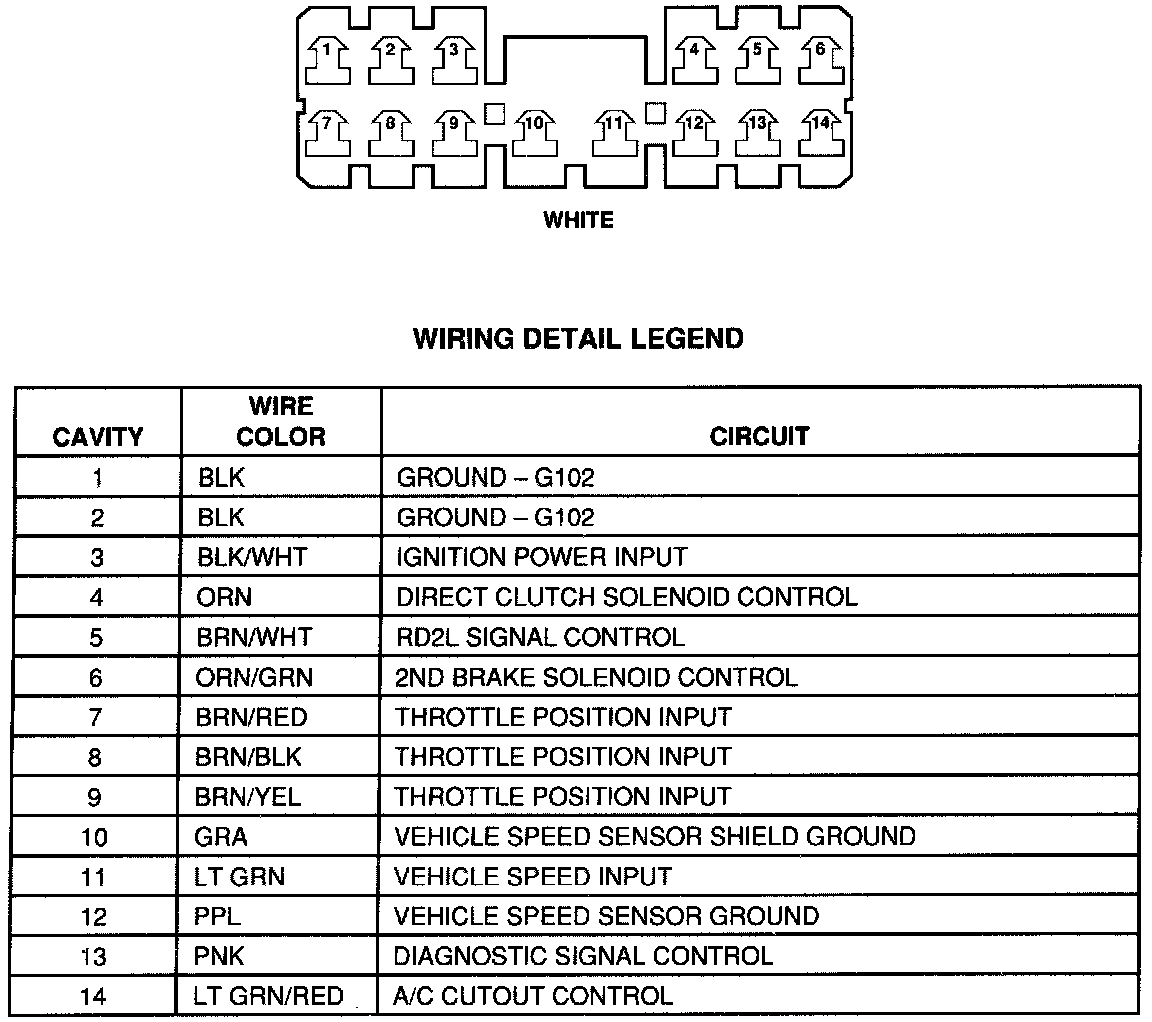

Transaxle Control Module (TCM) Connector 2:
