Home >> Geo >> 1992 >> Tracker 4x2 L4-1590cc 1.6L >> Repair and Diagnosis >> Technical Service Bulletins >> All Technical Service Bulletins >> A/C - Revised Compressor Overhaul Procedure >> Exploded View of Compressor Assembly

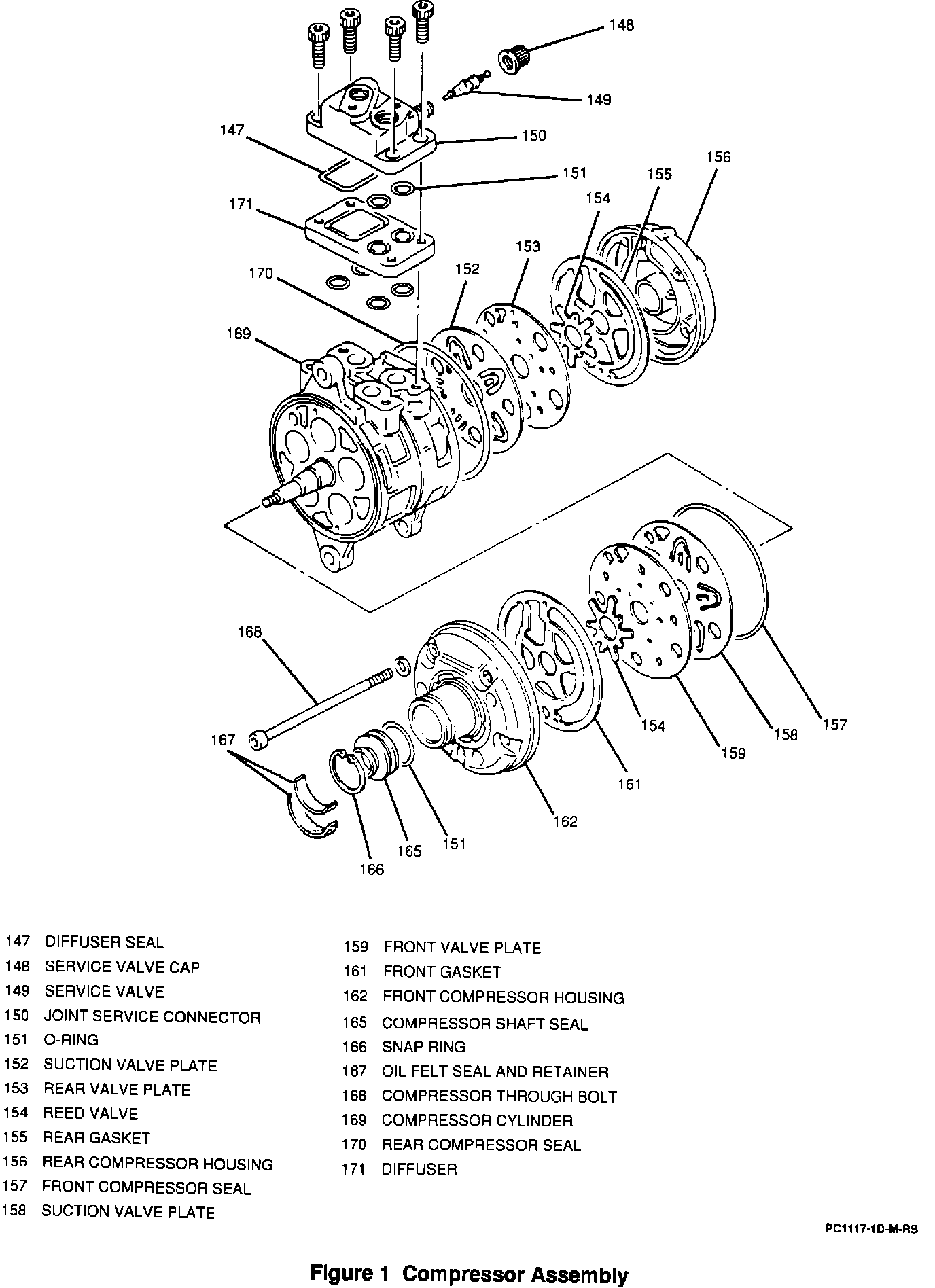

Exploded View of Compressor Assembly
