System Specifications

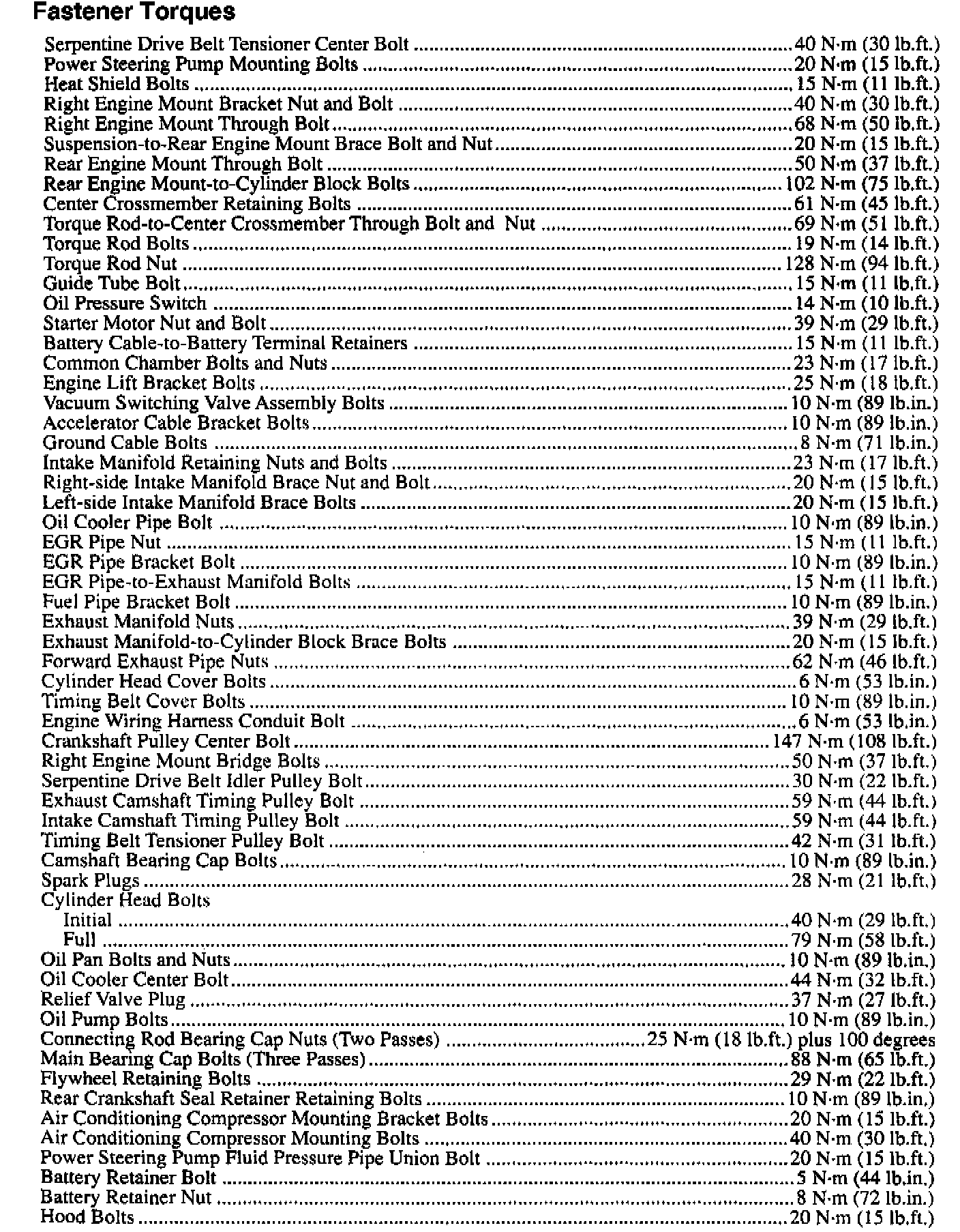

Torque Specifications:

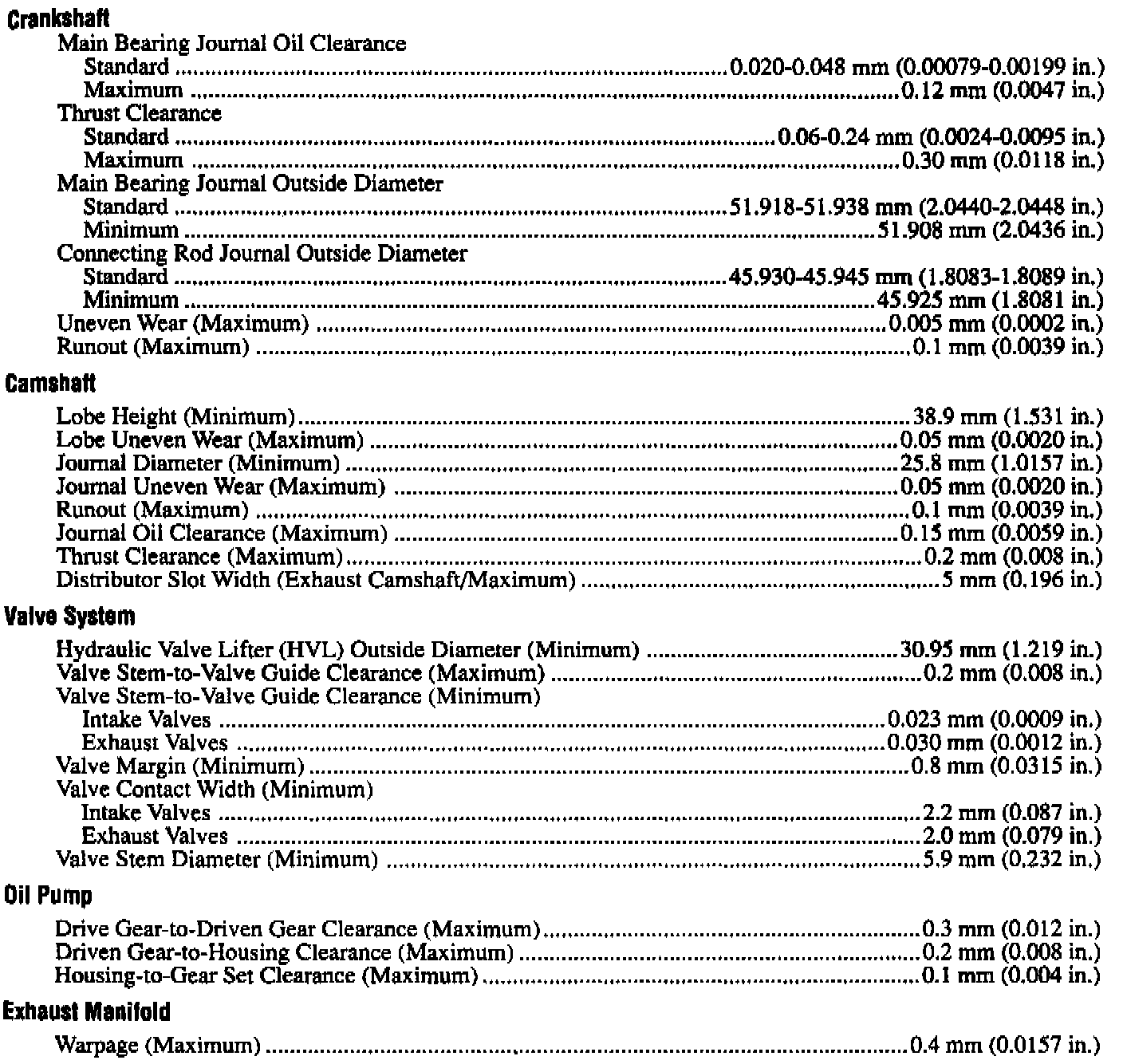

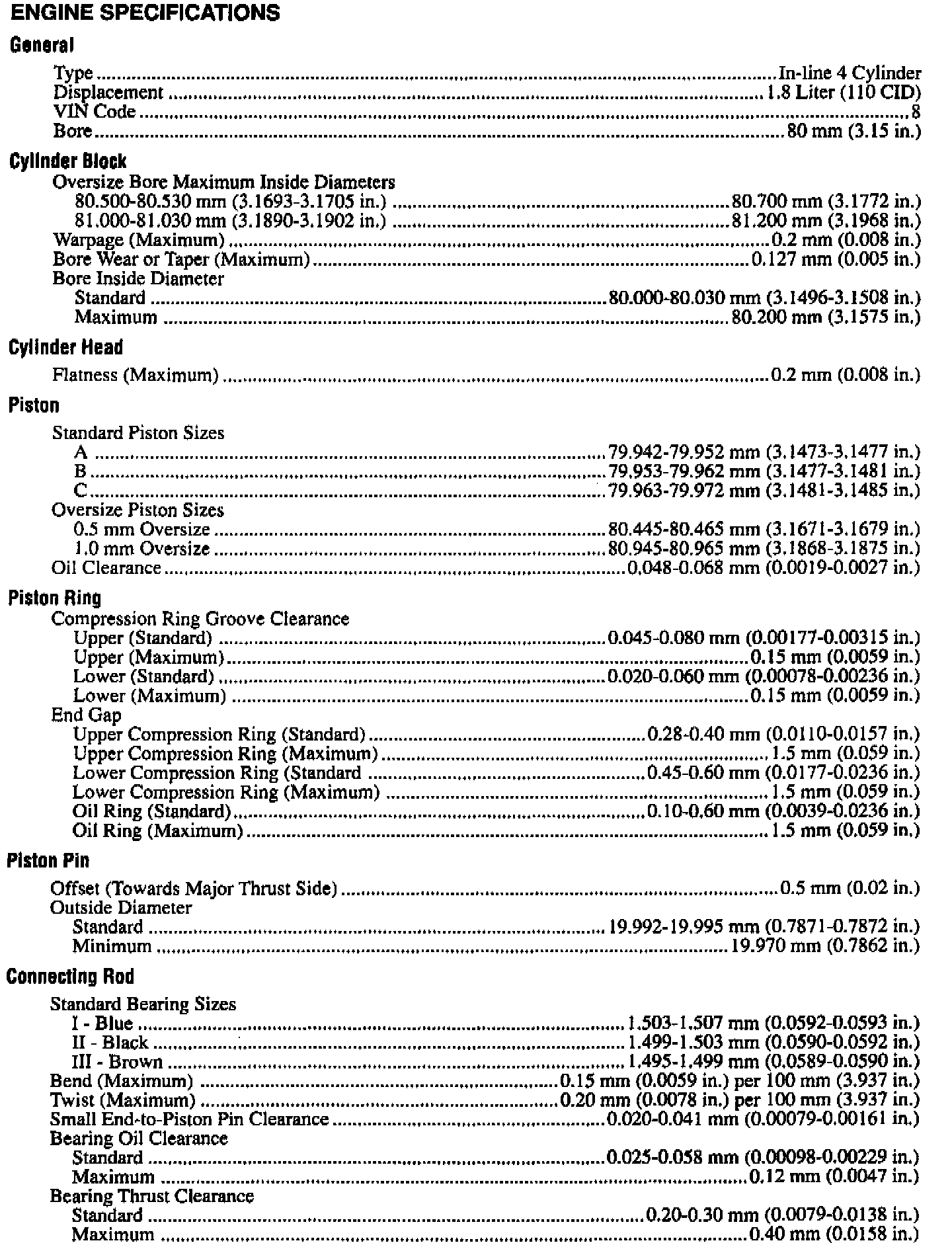

Engine Specifications:





Engine Specifications (continued):





Cylinder Head Sequence:





Cylinder Head Sequence:
