1992
>>
Storm L4-1800cc 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Pinout Description
Pinout Description

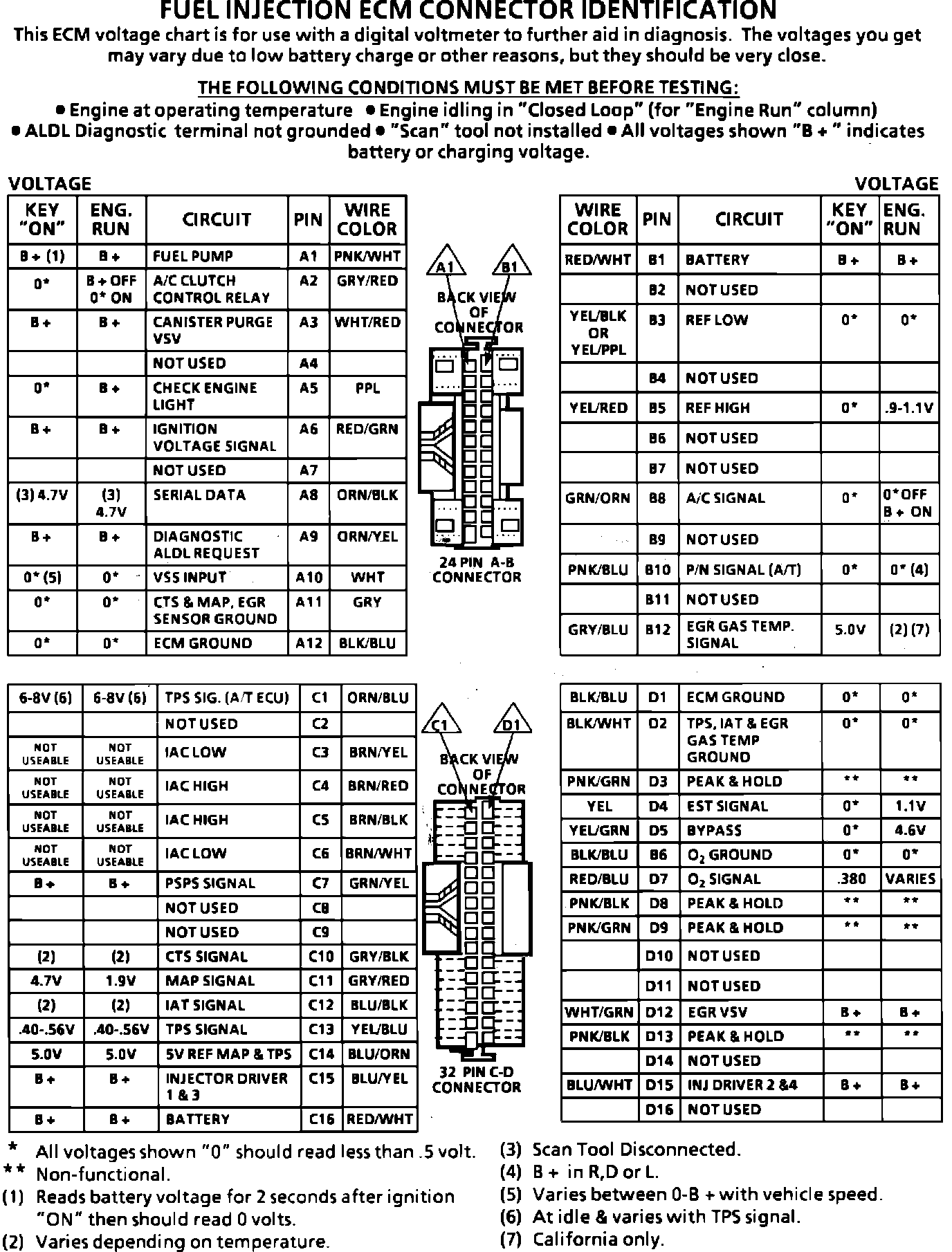

ECM Connector Pin Out:
