Home >> Geo >> 1992 >> Storm L4-1800cc 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Connector C1

Connector C1

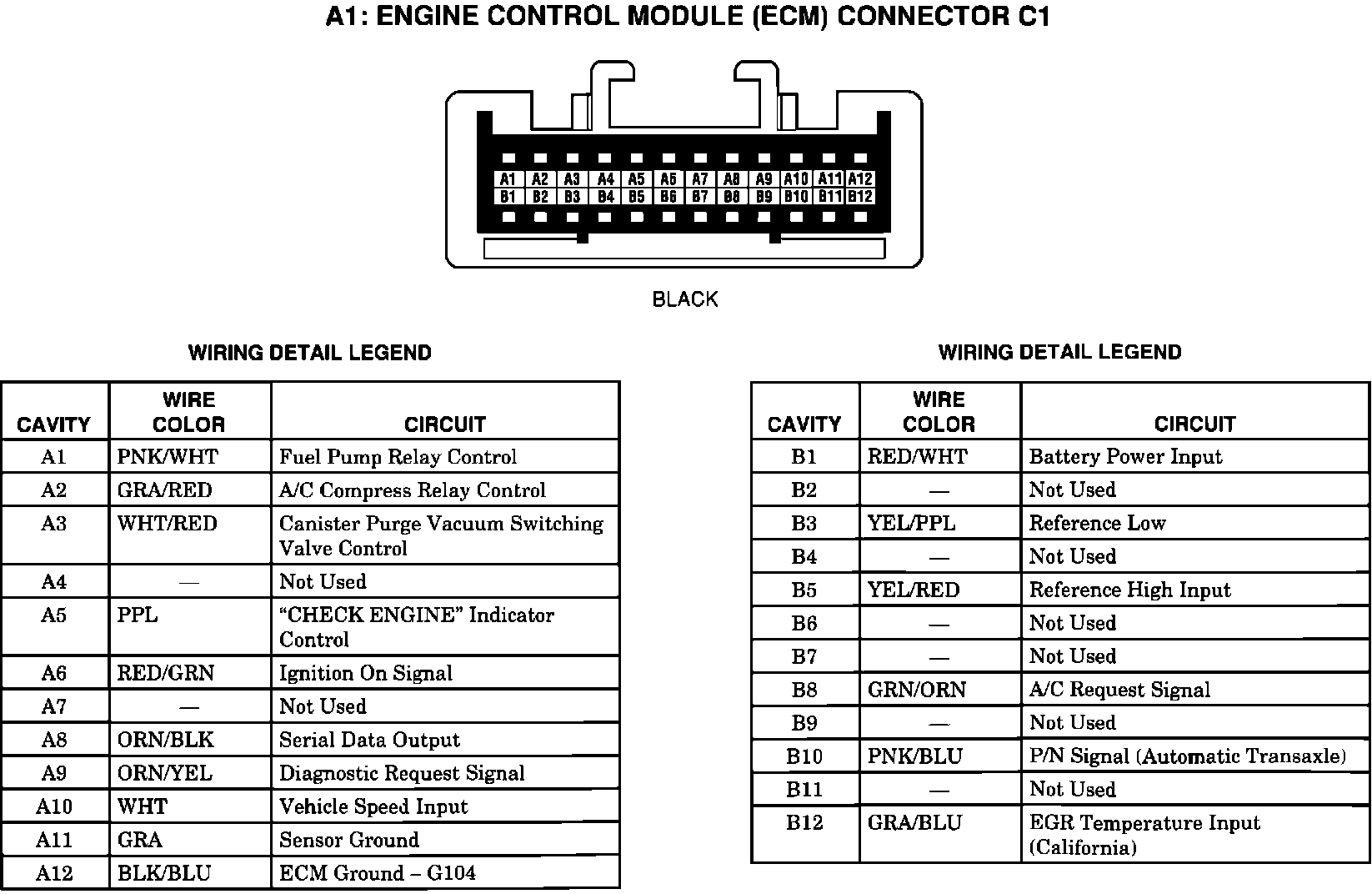

Engine Control Module (ECM) Connector:
