Home >> Geo >> 1992 >> Storm L4-1800cc 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T >> C1

C1

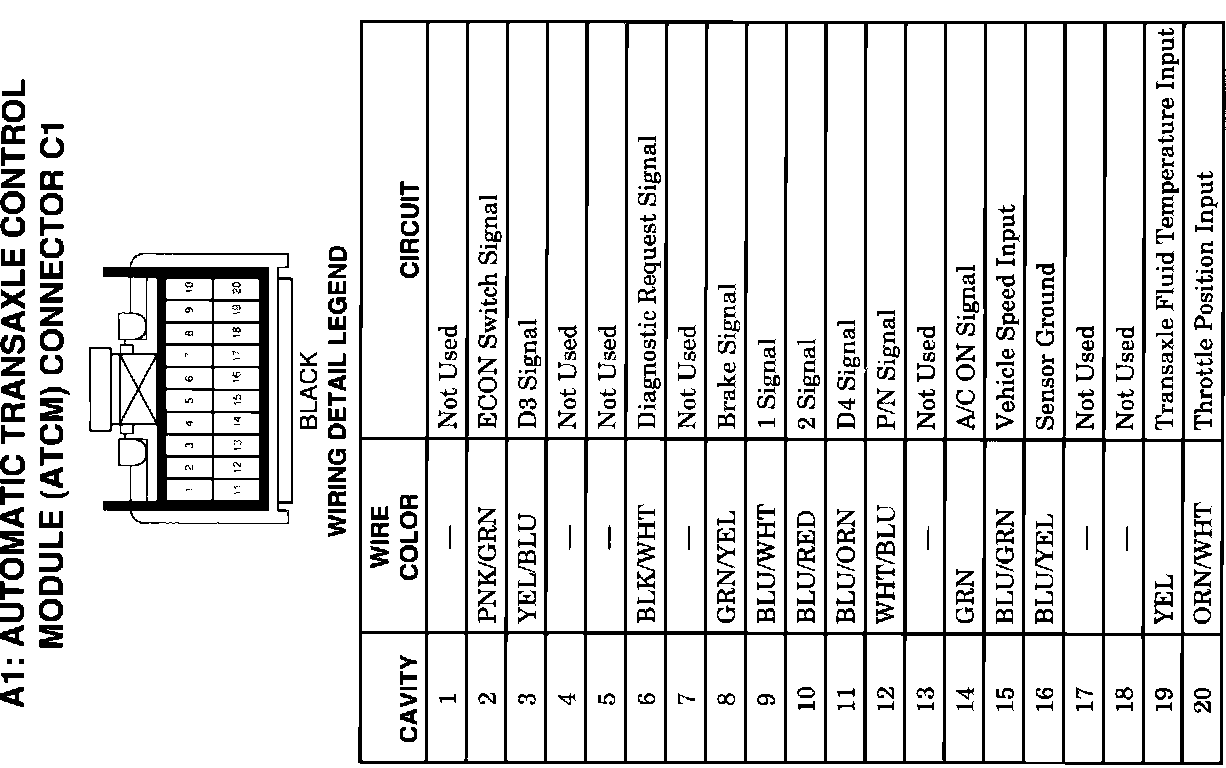

Automatic Transaxle Controls Module (ATCM):
