Home >> Geo >> 1992 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Connecting Rod, Engine >> Connecting Rod/Bearing Dimensions

Connecting Rod/Bearing Dimensions

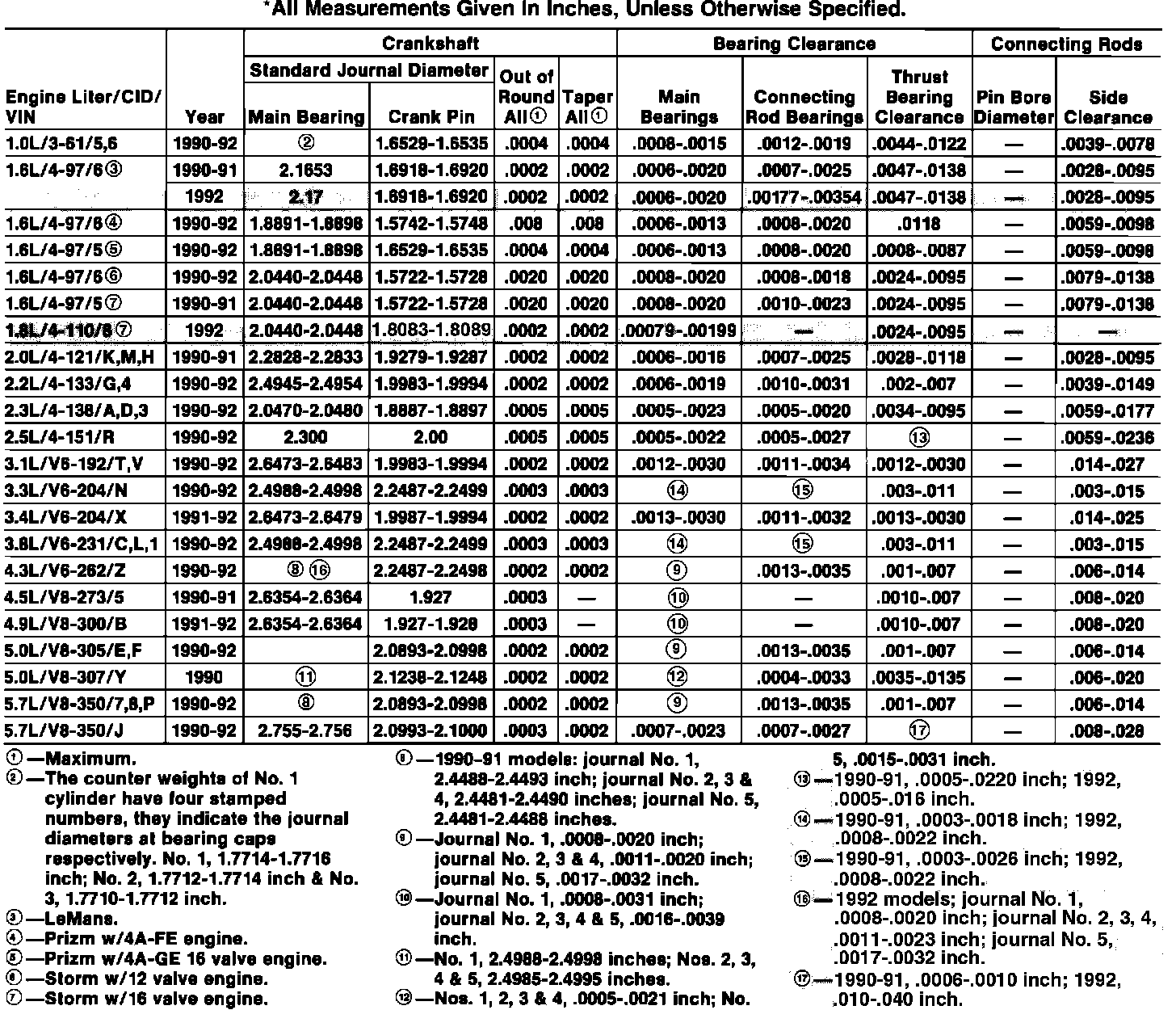

Crankshaft, Bearings & Connecting Rods Specifications:
