Home >> Geo >> 1992 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle Controls

Automatic Transmission/Transaxle Controls

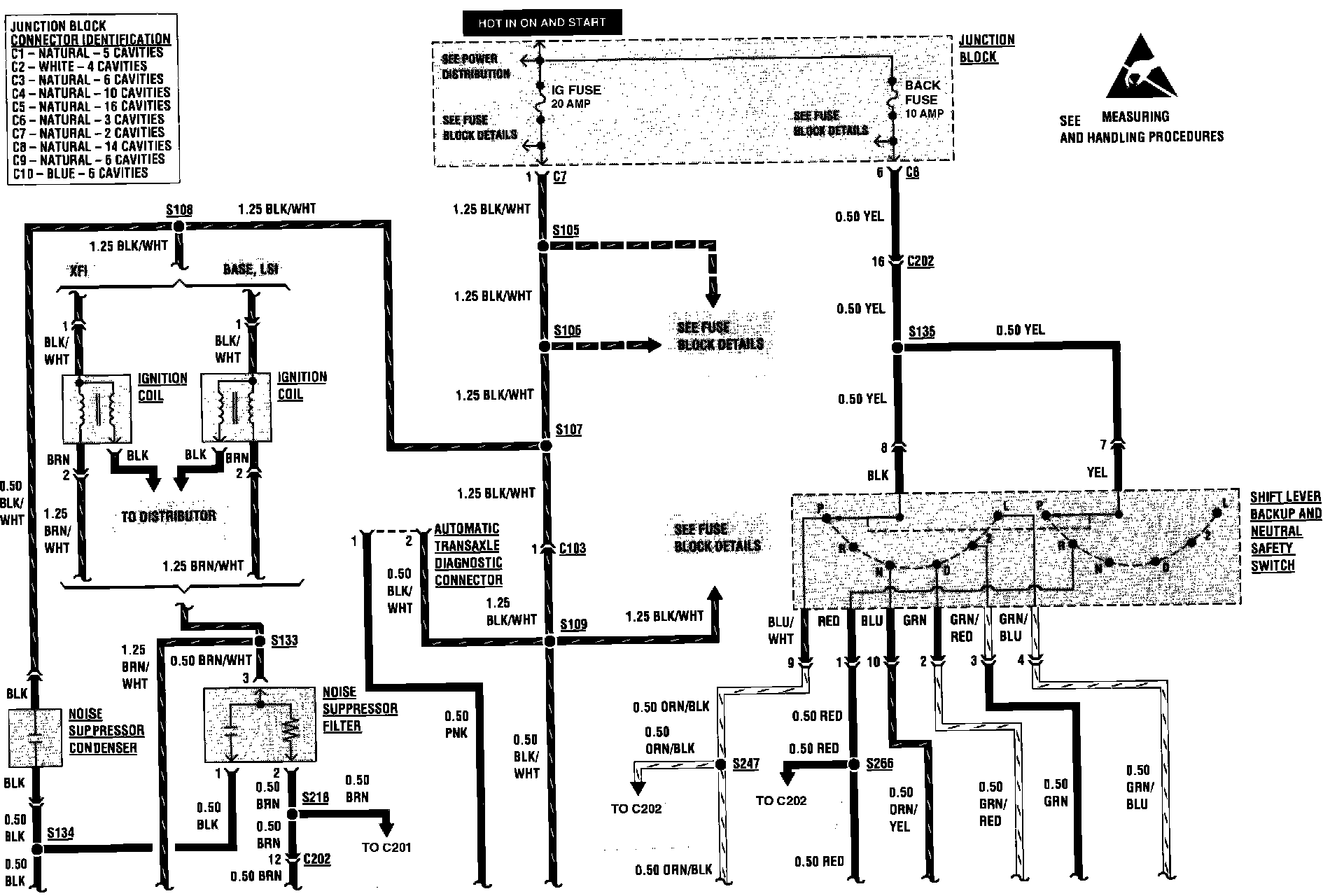

Automatic Transaxle Controls:

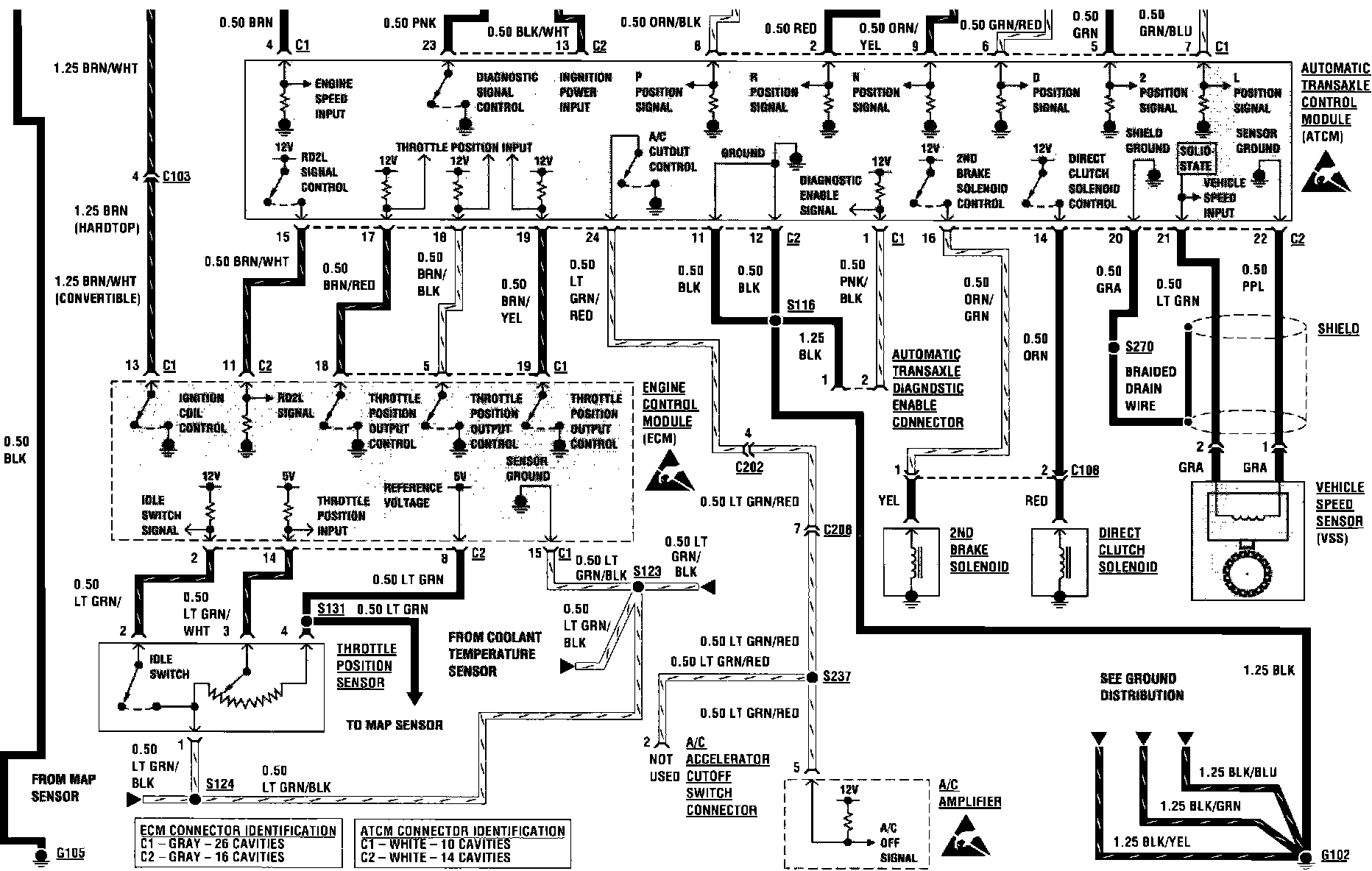

Automatic Transaxle Controls:
