System Operation Check

System Check:

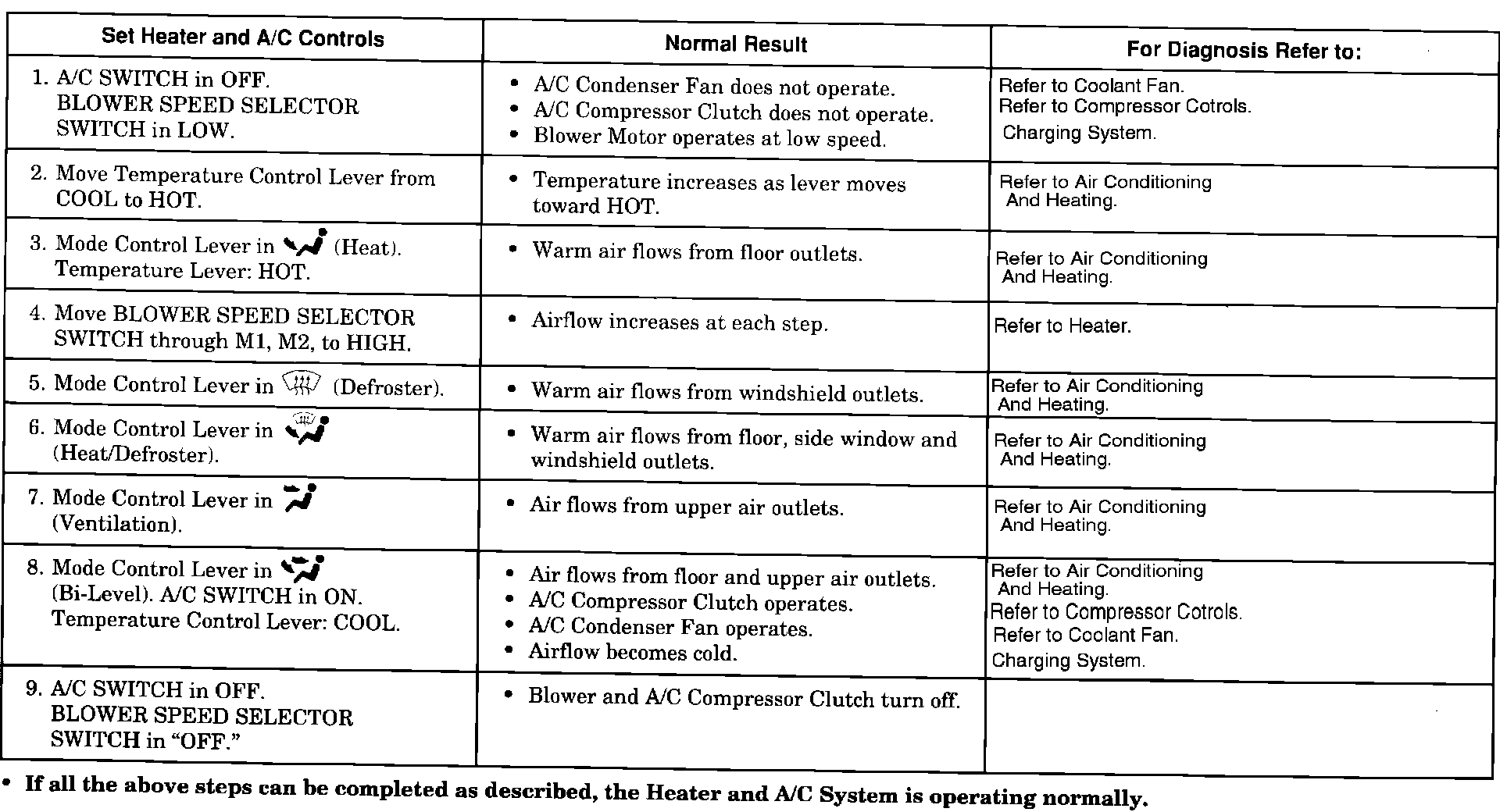

This chart provides an overall check of the air conditioning system.

All of the steps in each procedure can be completed without the use of tools or disassembly.

Complete this check with the temperature outside the car at 16~C (60~F) or higher and with the engine running.
