Home >> Geo >> 1991 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Neutral Safety Switch >> Locations

Neutral Safety Switch: Locations

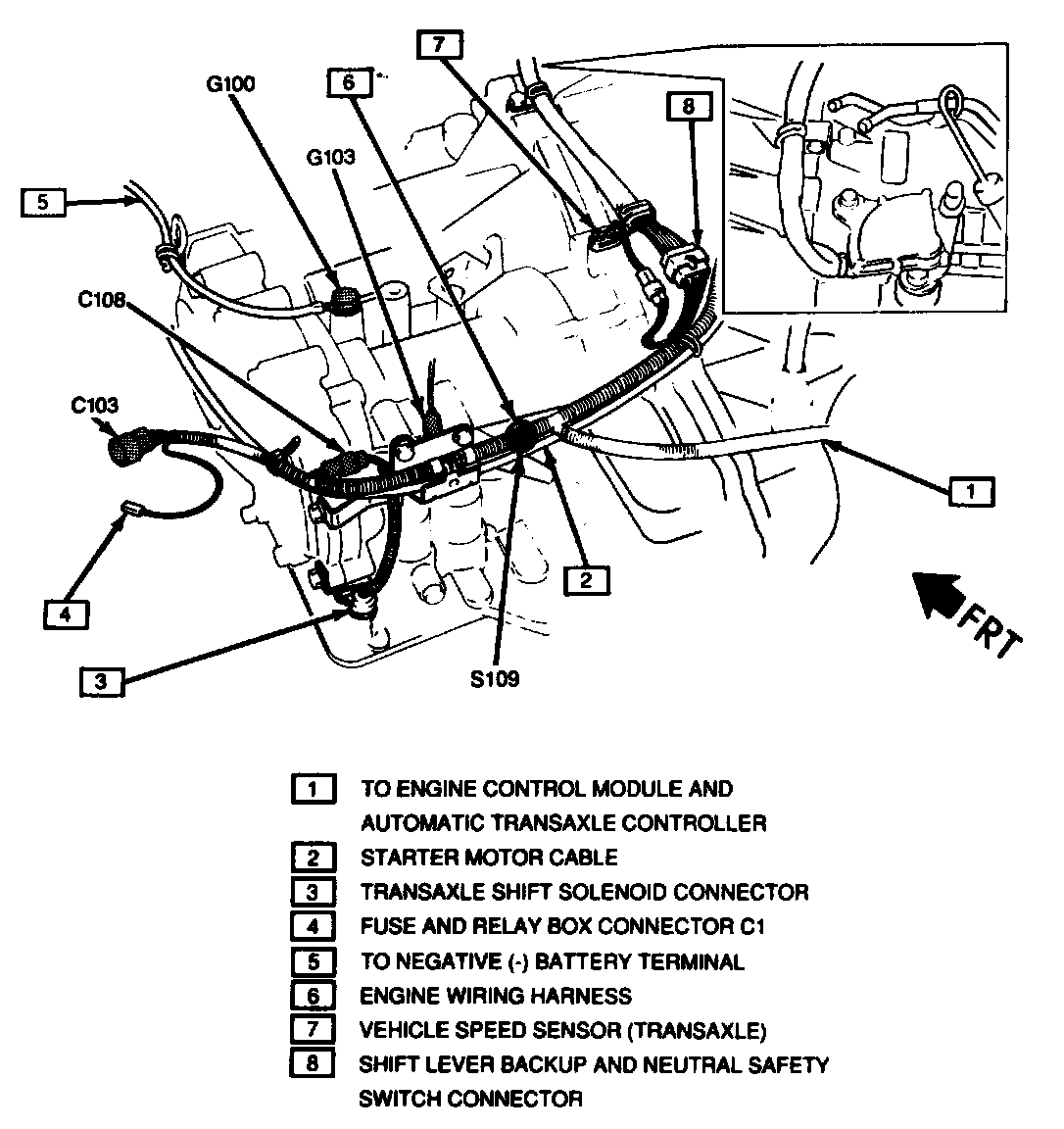

The automatic transaxle uses a combination Neutral Safety Switch and Shift Lever Backup Switch. On the image it is shown as number 8.
The Manual transaxle uses the clutch start switch instead of a Neutral Safety Switch.
