Wiper Relay: Testing and Inspection

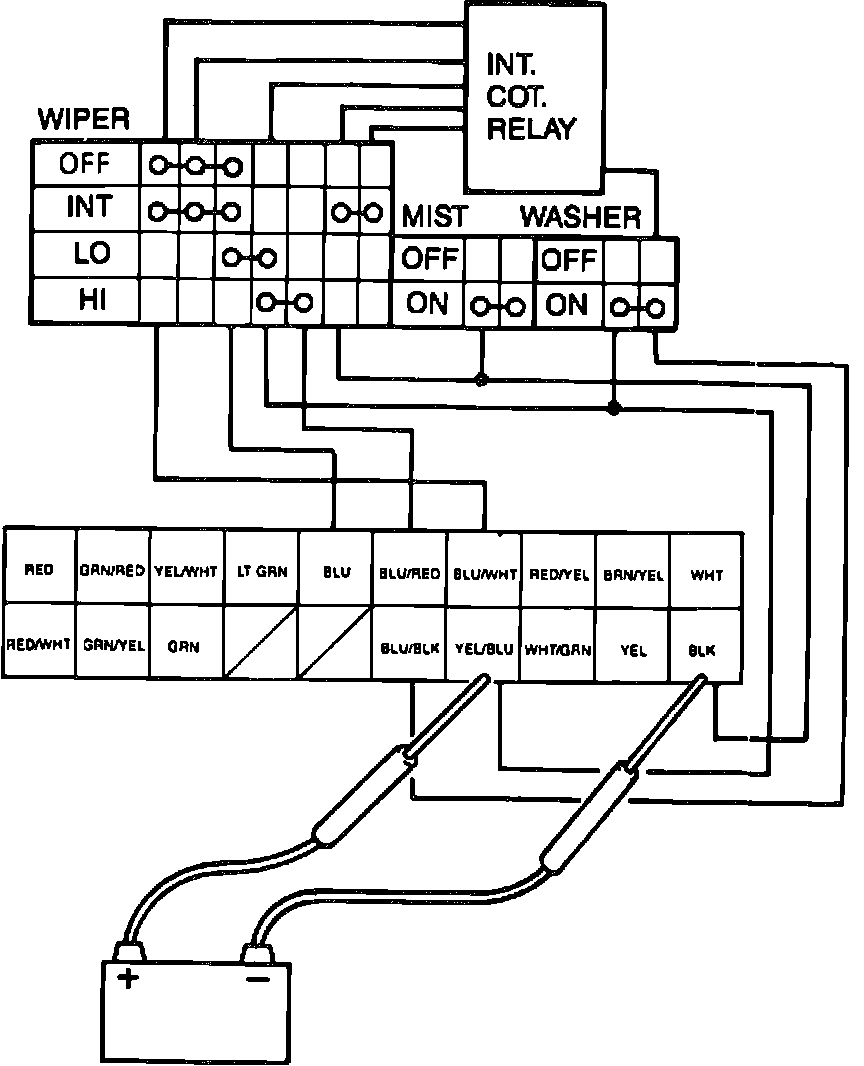

Fig. 5 Intermittent relay test:

1. Disconnect electrical connector from wiper/washer switch.
2. Position wiper switch to INT.
3. Connect battery positive to YEL/WHT connector terminal and battery negative to BLK connector terminal, Fig. 5. Relay is good if operational sound of relay can be heard.
