System Specifications

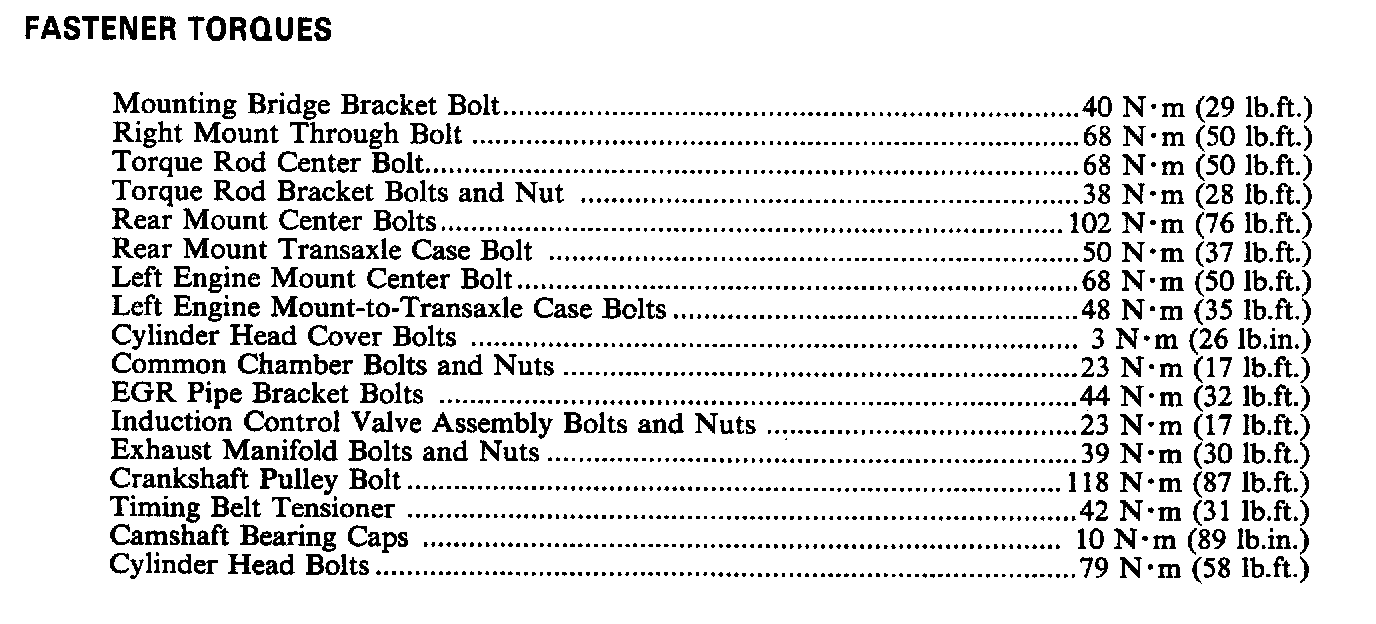

Torque Specifications:

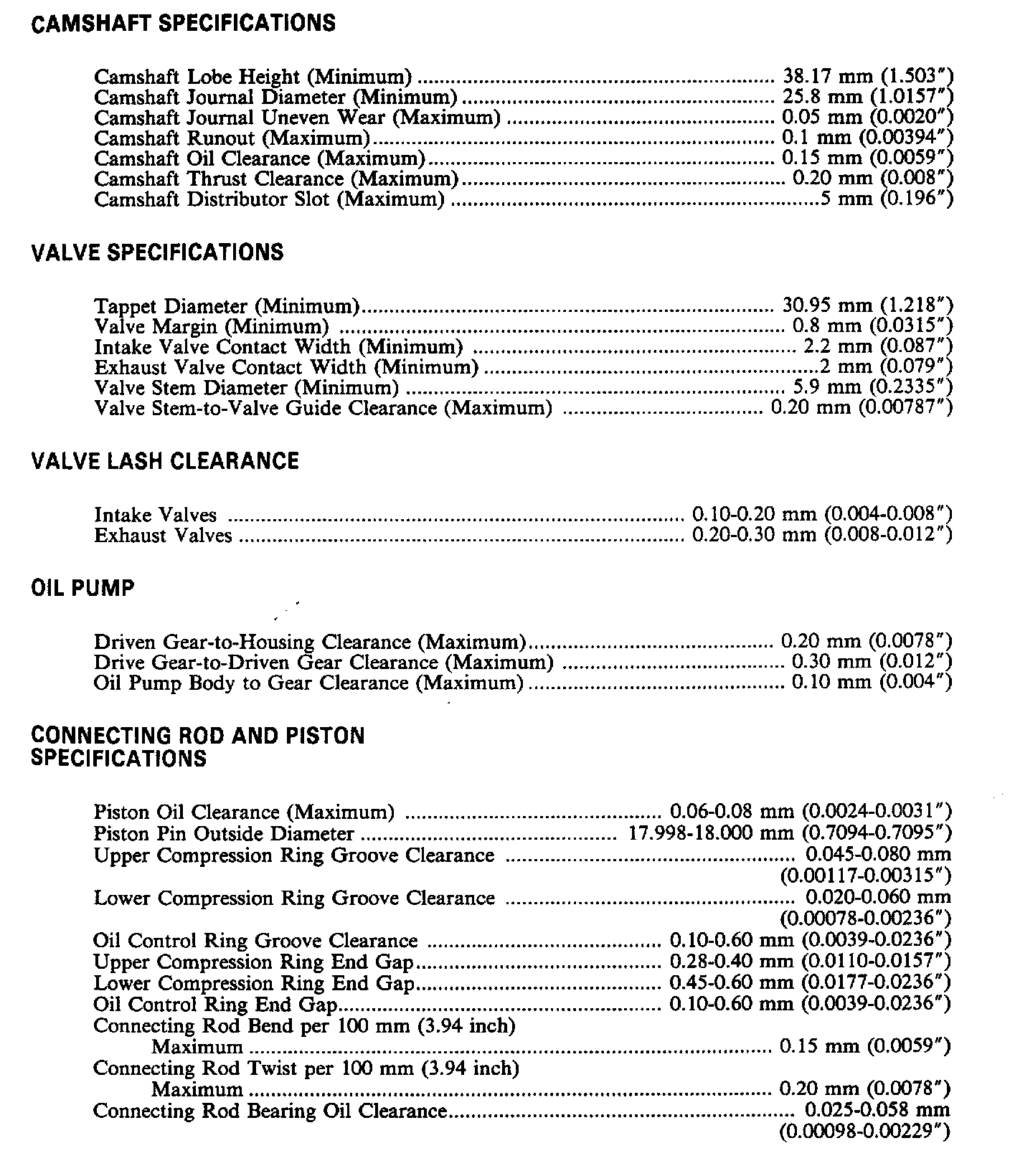

Engine Specifications:





Engine Specifications:





Engine Specifications:





Cylinder Head Bolt Removal Sequence:





Cylinder Head Torque Sequence:
