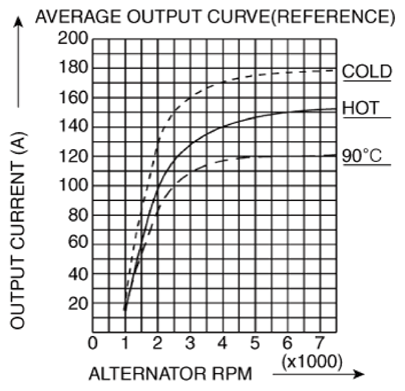

Charging System - 2.5L: Alternator: Specifications: Specification

• 13.5 V 150 A

Item	Specification
Form	AC power generation
Rated Voltage	13.5 V 150 A
Motor RPM	0 ~ 18, 000 rpm
Regulator voltage	14.25 ~ 14.65
Connector pin count	1
Pulley Type	SOLID

Courtesy of HYUNDAI MOTOR AMERICA
