Components & Components Location: Components

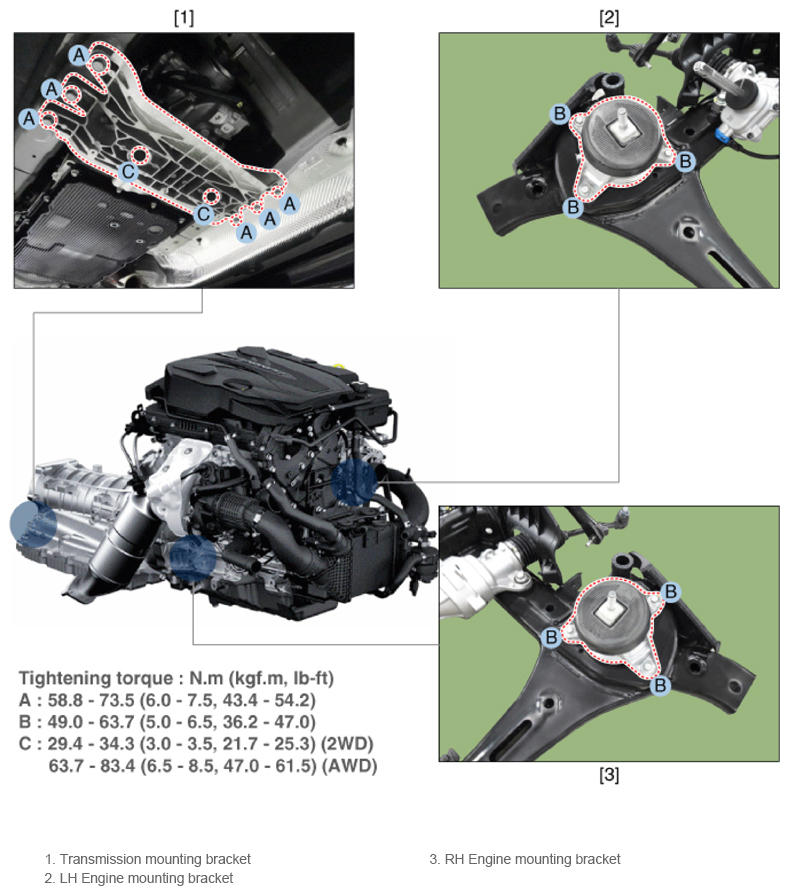

Fig 1: Engine Mounting Components Location With Torque Specifications

G14752429

Courtesy of HYUNDAI MOTOR AMERICA
