Driver's side

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

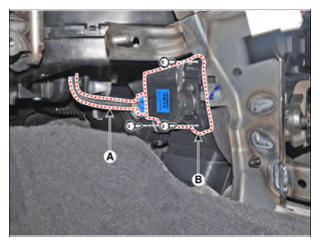

  3. Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.
    G15555122Courtesy of HYUNDAI MOTOR AMERICA

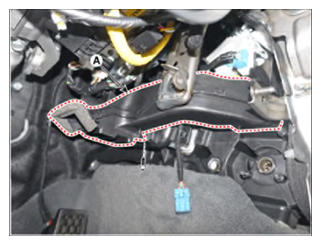

  4. Loosen the mounting screws, remove the driver's shower duct (A).
    G15555123Courtesy of HYUNDAI MOTOR AMERICA

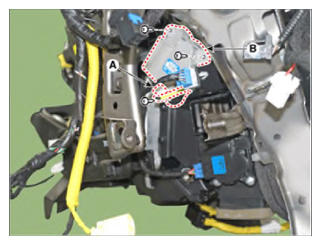

  5. Loosen the mounting screws, remove the driver's mode control actuator (A).
    G15555124Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
