Variant Coding

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".

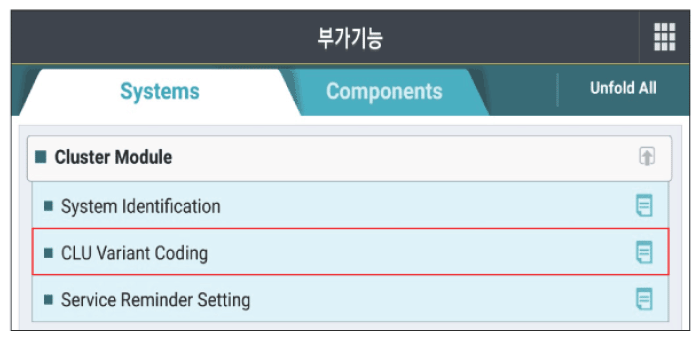

G16822667Courtesy of HYUNDAI MOTOR AMERICA

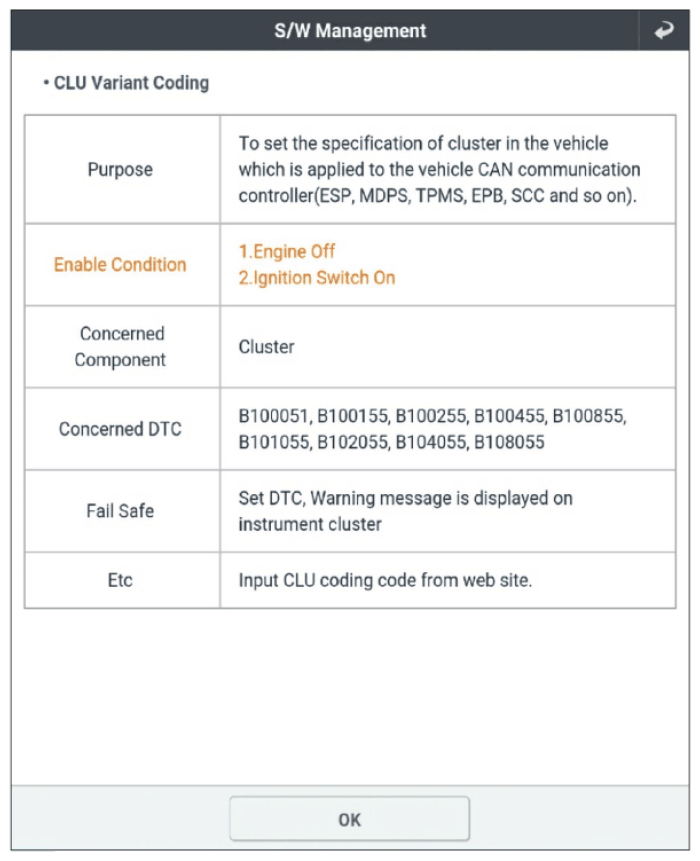

G16822668Courtesy of HYUNDAI MOTOR AMERICA

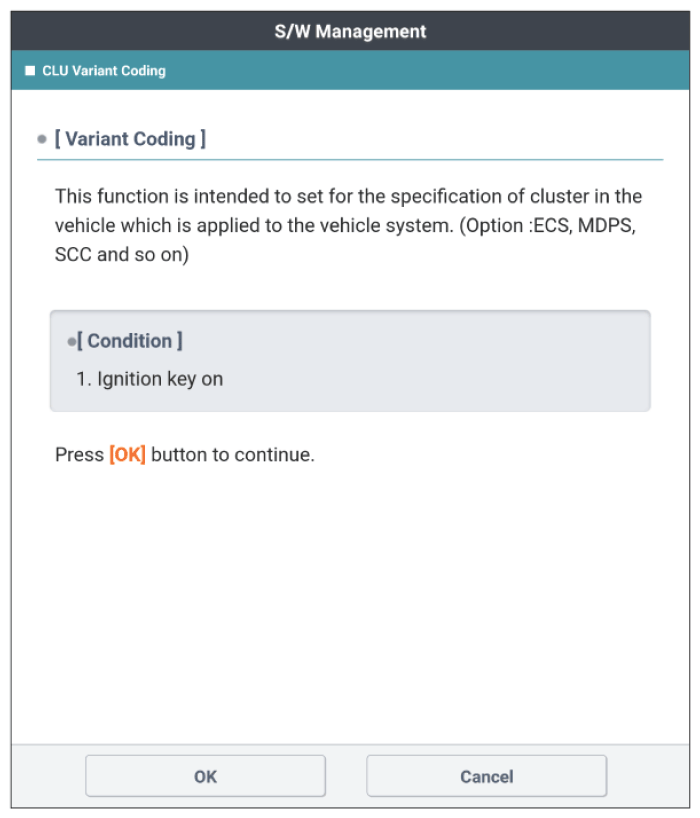

G16822669Courtesy of HYUNDAI MOTOR AMERICA

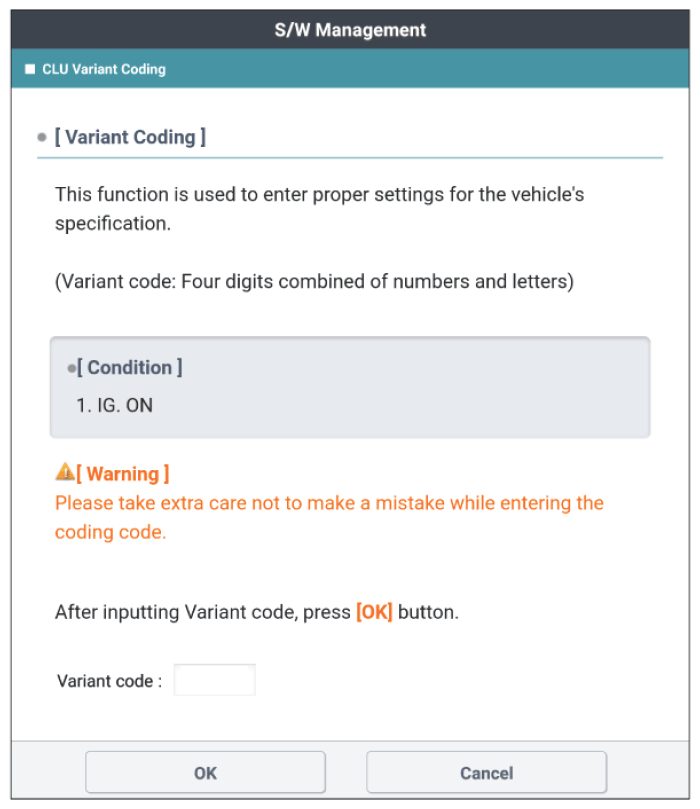

G16822670Courtesy of HYUNDAI MOTOR AMERICA

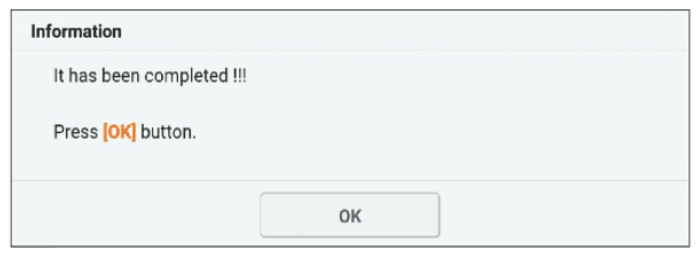

G16822671Courtesy of HYUNDAI MOTOR AMERICA
