Components And Components Location: Components

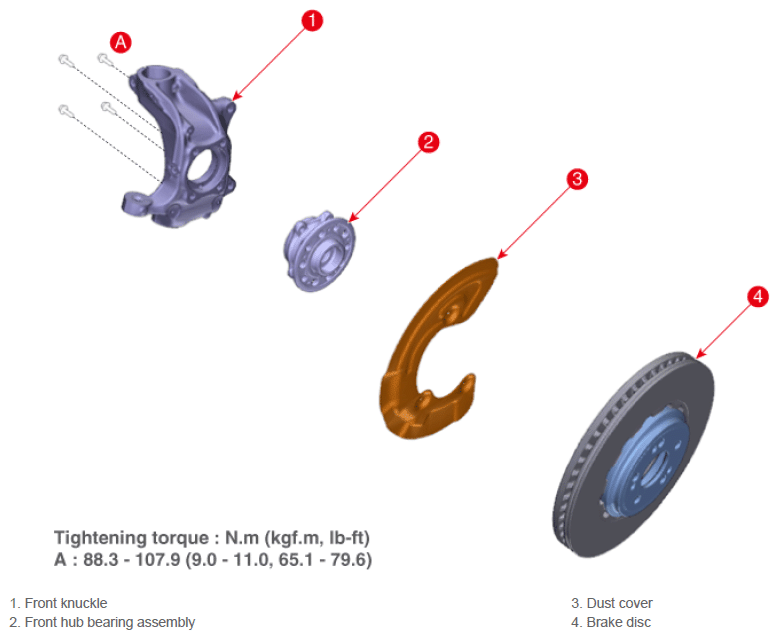

Fig 1: Front Hub/Knuckle/Tone Wheel Components Location With Torque Specifications

G16817519

Courtesy of HYUNDAI MOTOR AMERICA
