Home >> Genesis >> 2022 >> GV70 2.5T Advanced >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 2.5L >> Fuel Pump Control Module (FPCM) >> Connector And Terminal Information >> Connector End View And Terminal Description

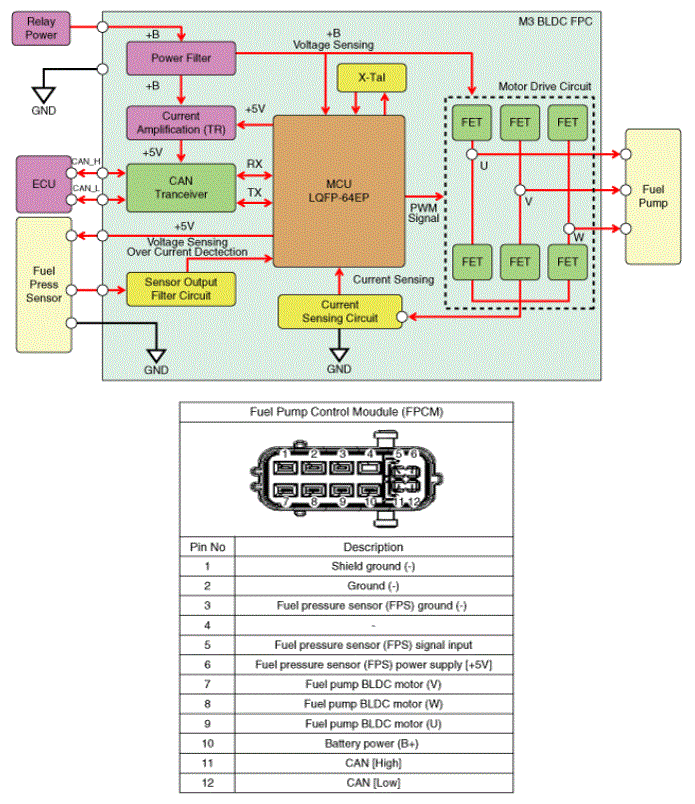

Connector End View And Terminal Description

G14763982

Courtesy of HYUNDAI MOTOR AMERICA
