Home >> Genesis >> 2021 >> GV80 3.5T Advanced >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System - 3.5L >> Fluid >> Components & Components Location >> Components Location

Components Location

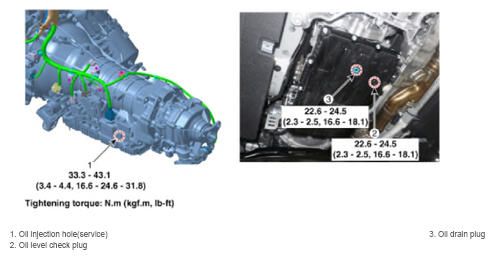

Fig 1: ATF Fluid Drain, Fill And Level Check Plugs Location With Torque Specifications

G14728935

Courtesy of HYUNDAI MOTOR AMERICA
