Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

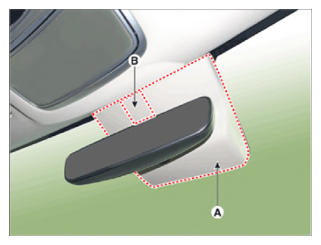

  2. Remove the multi sensor cover (A) and (B).
    G14727158Courtesy of HYUNDAI MOTOR AMERICA

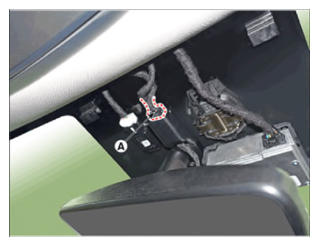

  3. Remove the mirror mounting screw and connector (A).
  4. Remove the mirror pulling up in the arrow direction.
    NOTE: Make sure not to damage the mounting bracket when removing the mirror.
    G14727159Courtesy of HYUNDAI MOTOR AMERICA
    G14727160Courtesy of HYUNDAI MOTOR AMERICA
