Home >> Genesis >> 2021 >> GV80 3.5T Advanced >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Auto Lighting Control System >> Auto Light Sensor >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

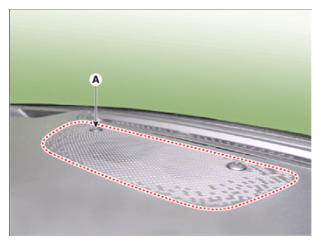

  2. Remove the photo & auto light sensor (A) from crash pad upper side by using a flat-tip screwdriver.
    G14727250Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the auto light connector.
